Victron MultiPlus 48/3000/35-16 48V 230V 2400W 6000W Inverter 35A Charger

Delivery time approx. 5 working days

Order within the next 22 hours and 59 minutes so the order is shipped tomorrow .

Lieferung innerhalb von , mit DHL Paket.
  • 1-67-009060
1,380.70€ * 1,472.03€ * (6.2% Saved)

Prices incl. VAT plus shipping costs

The victron MultiPlus 48/3000/35-16 (MPN PMP483020001) is a combination of 48V 2400W inverter... more

The victron MultiPlus 48/3000/35-16 (MPN PMP483020001) is a combination of 48V 2400W inverter and battery charger. The integrated battery charger provides 35A which allows quick charging even for bigger batteries as long as there is a grid connection.
The 48V sine inverter converts your DC battery current into a 230V AC current. Thanks to a pure sine wave this inverter is also suitable for sensitive electronic devices. Besides those two components there is also an integrated transfer-switch that enables you to realize many grid-tied solutions.
Integrating the MultiPlus in your system can be done via VE.Bus-port or COM-port which allows nearly unlimited networking.

Versatile and flexible
Besides inverter and charger the MulitPlus also contains a 16A transfer switch which makes it ideal for caravans, campers, boats, yachts and uninterrupted power supply in case of grid fluctuations or blackouts.
Moreover it is a handy tool for any grid-tied system which only drains power from the supplier when the battery current is not sufficient.

Important features:

  • 2400W constant output and 6000W peak current, for 48V battery voltage
  • combination of inverter with transfer switch and 35A battery charger
  • provides pure sine wave at 50Hz
  • VE.Bus communication port allows extensive possibilities in terms of connection, configuration and controlling of Victron MultiPlus devices
  • supports three-phase operation (3 units of the same model needed)
  • supports parallel operation - up to 6 units can be connected parallely to increase system power if needed
  • 2x AC-outputs (Multiplus 3000 and bigger) - on the second output consumers can be connected that should only run when grid-power is available
  • Besides the VE.Bus-port MultiPlus devices 3000 or bigger additionally come with an COM-port the allows nearly unlimited system integration
  • PowerControl-function allows operation with limited generator performance as well as supply through limited shore or grid power
  • PowerAssist-function allows a 'performance-increase' of generators and supports shore power connection if needed
  • usable as UPS-solution (uninterrupted power supply) thanks to the integrated transfer-switch with 16A or 50A
  • usable for grid-tied systems which only drain power from the supplier when the battery current is not sufficient or other programmable events have happened
  • compatible with many Victron control- and monitoring-panels
  • three-phase operation with other MultiPlus inverters of identical model possible

Massive performance extension
Besides parallel operation three inverters of the same model can be configured for three-phase operation. But there is more: It is possible to connecte 6 x three-phase systems parallely to generate a massive inverter performance of 75kW / 90kVA and a charging capacity of 2000A (when using the 5000 model)

PowerControl - operation with limited generator performance, shore or grid power
The MultiPlus is a powerful battery charger which drains a lot of power (nearly 10A/5kVA Multi at 230V AC) from the generator or grid. With help of the MultiControl panel you can adjust the max. power drained from the generator or grid. The MultiPlus then priors other connected AC-consumers and uses only the "surplus" of energy for charging.
This protects the generator or grid from an overload.

PowerAssist - performance-increase of generators and shore power connection
With this function PowerControl is put to a new dimension by enabling the MultiPlus to support small-dimensioned power sources. Load-peaks often occure only within limited periods. In this case the MultiPlus ensures that weak shore- or generator power is compensated instantly through battery power.

BackUp-System: AC-power also during blackouts

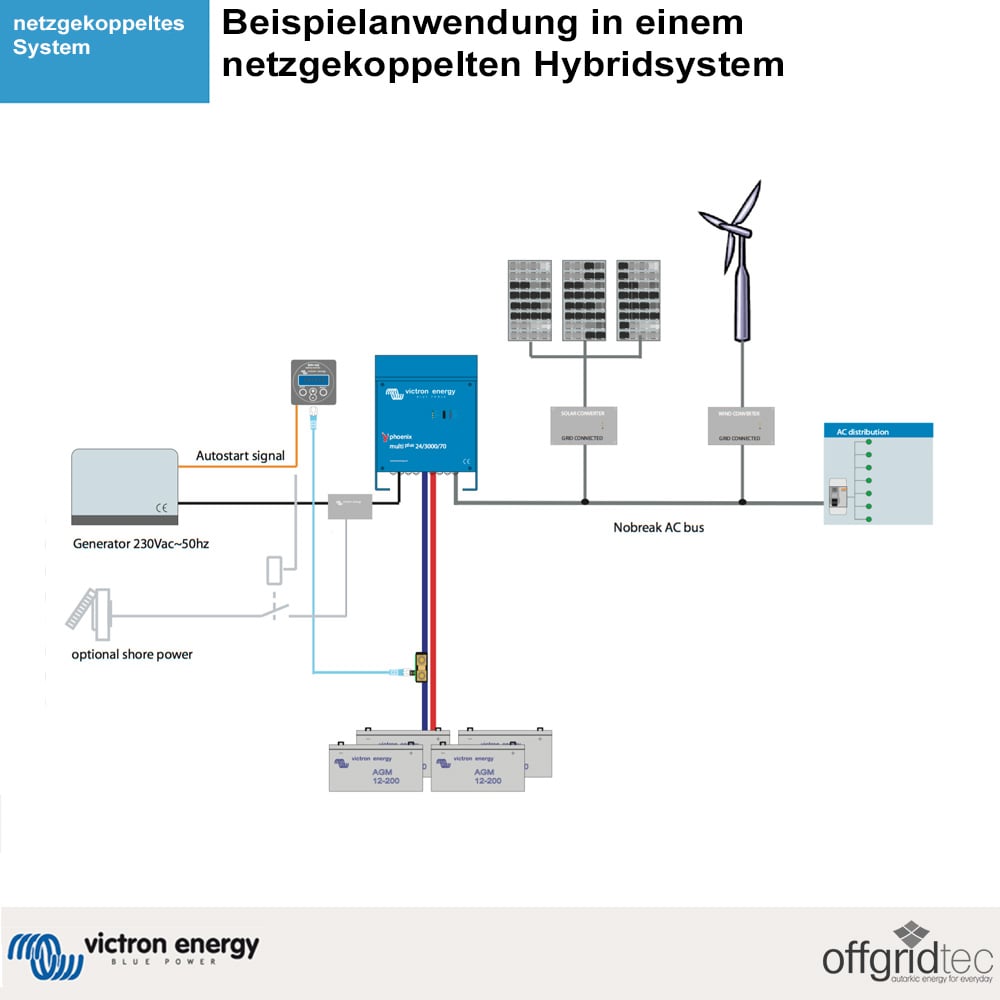

The MultiPlus can be integrated in off-grid systems, grid-tied PV-systems and systems using alternative energy sources. A software that detects blackouts and grid failures is also available.

Easy configuration
If setting of a device have to be changed this can be done with help of a DIP-switch within minutes.
Parallel-connected and three-phase systems can be configured via VE.Bus QuickConfigure and VE.Bus System Configurator software.

Monitoring and controlling on site
There are several option: battery protector, Multi Control panel, VE.Net Blue Power panel, Color Control Panel, smartphone or tablet (Bluetooth Smart), notebook or computer (USB or RS232).

Remote monitoring and controlling
Victron Ethernet Remote, Victron Global Remote and the Color Control Panel allow remote maintenance and monitoring of the Multiplus. Addiationally system data can be saved for free on the VRM (Victron Remote Management) website.

Remote configuration
If the system is connected to the ethernet via the ColorControl-panel you are able to change settings remotely.

Delivery scope:
1x Victron PMP483020001 Multiplus 48/3000/35-16 Combination of 48V 2400W sine inverter and 48V 35A battery charger + transfer-switch
1x Manual



Voltage regulation 48V DC / 230V AC
Transfer switch power 16A
Transfer switch integrated Yes - 1 piece
Battery outputs male
shippingcosts 4,90 €
Battery voltage 48V
Protection type IP21
Temperature range VE.Bus
Product Type Unit combination consisting of 48V to 230V sine wave voltage converter and battery charger. In addition, MultiPlus units also have a transfer switch for grid-connected applications.
Rated output voltage 230V AC / alternating current
Warranty 5 years manufacturer's warranty 2
Own consumption in idle mode 25W
Own consumption in standby 12W
Frequency range 50Hz / +-0,1Hz
Continuous output 2400W
Sine wave true sine wave
Manufacturer Victron Energy
Weight 18 kg
delivery_time 1-3 Werktage
