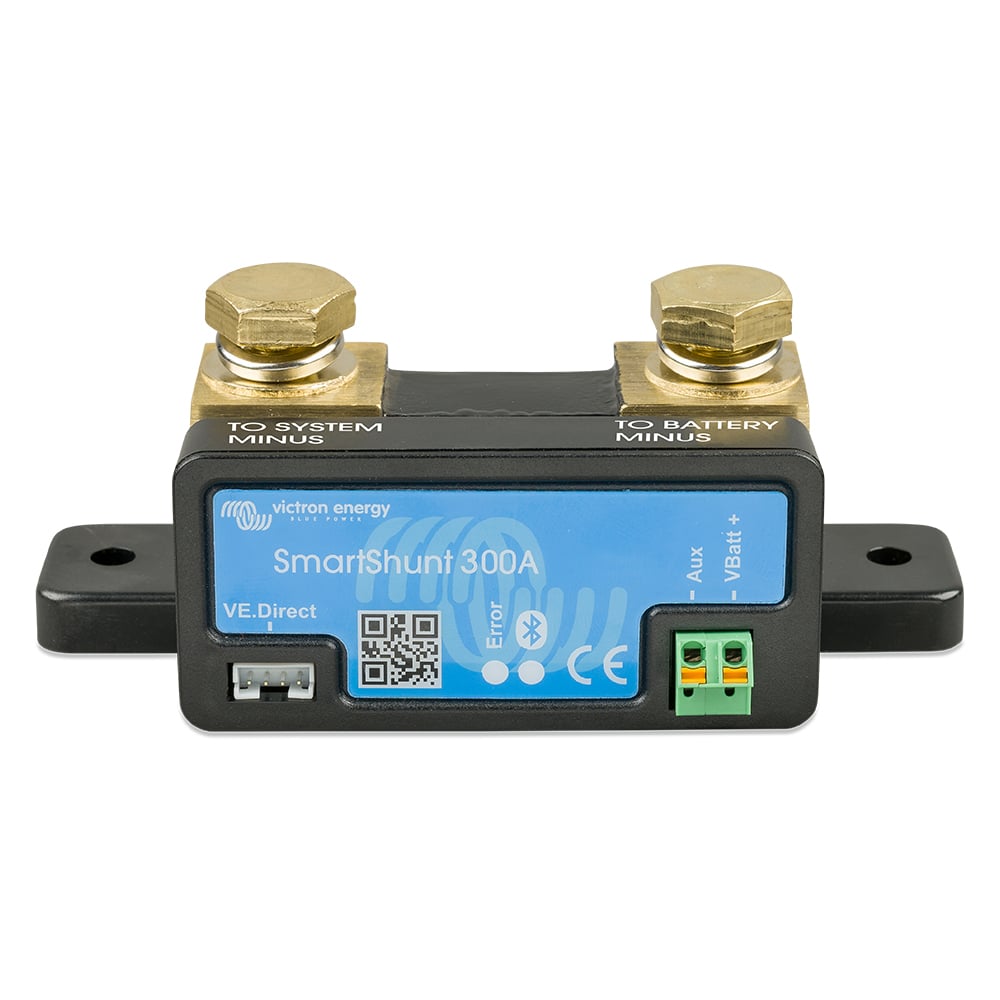

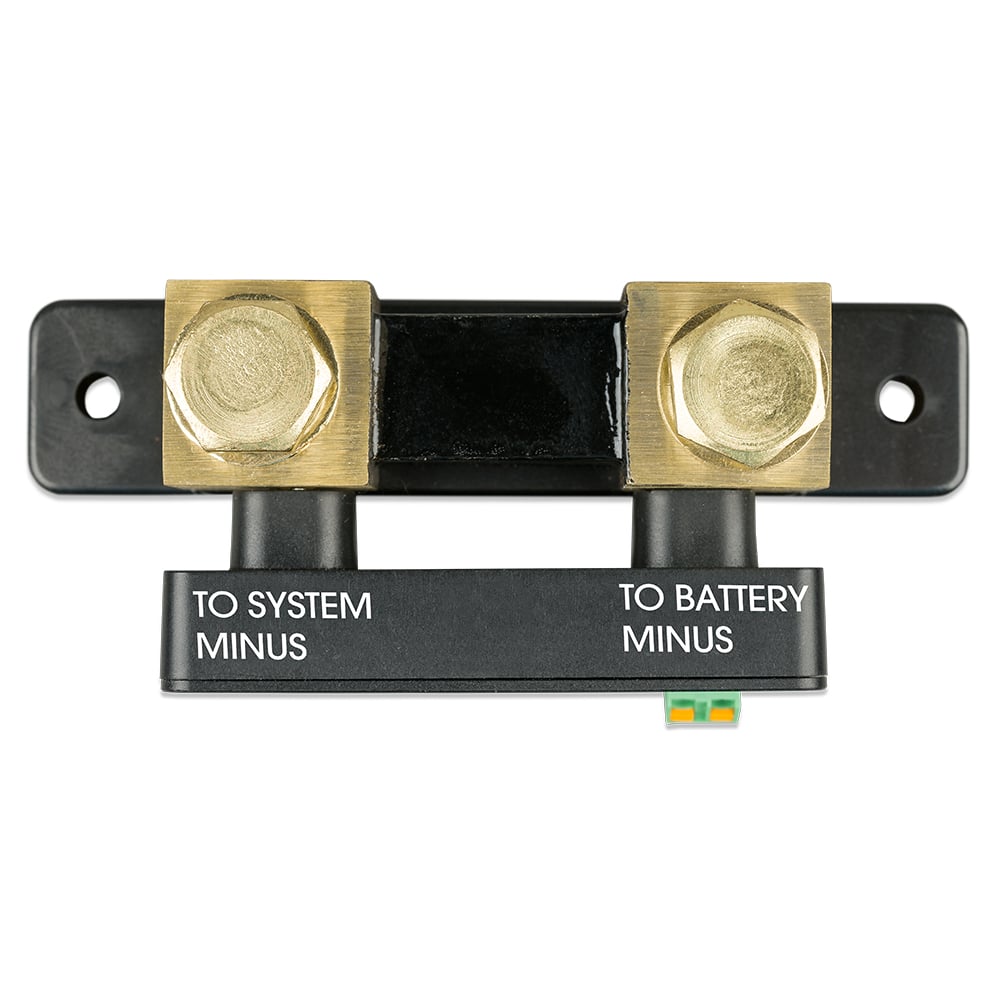

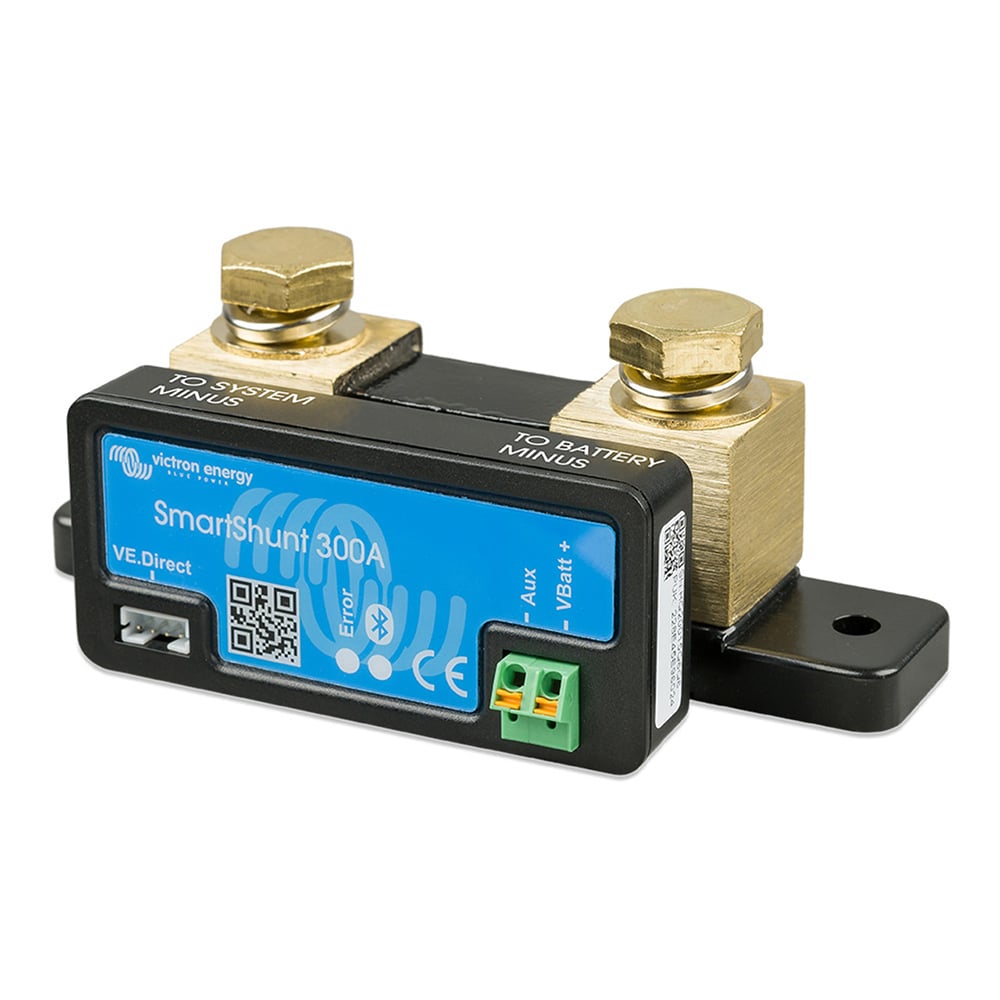

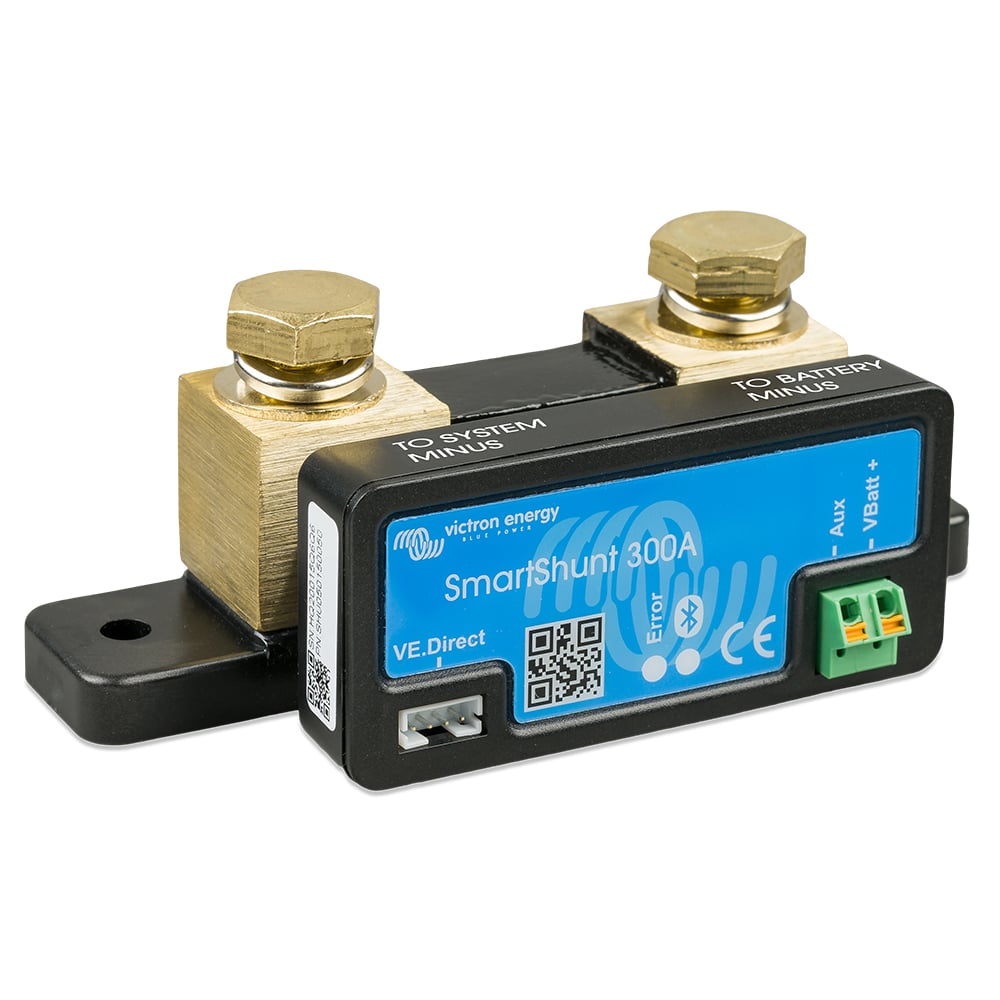

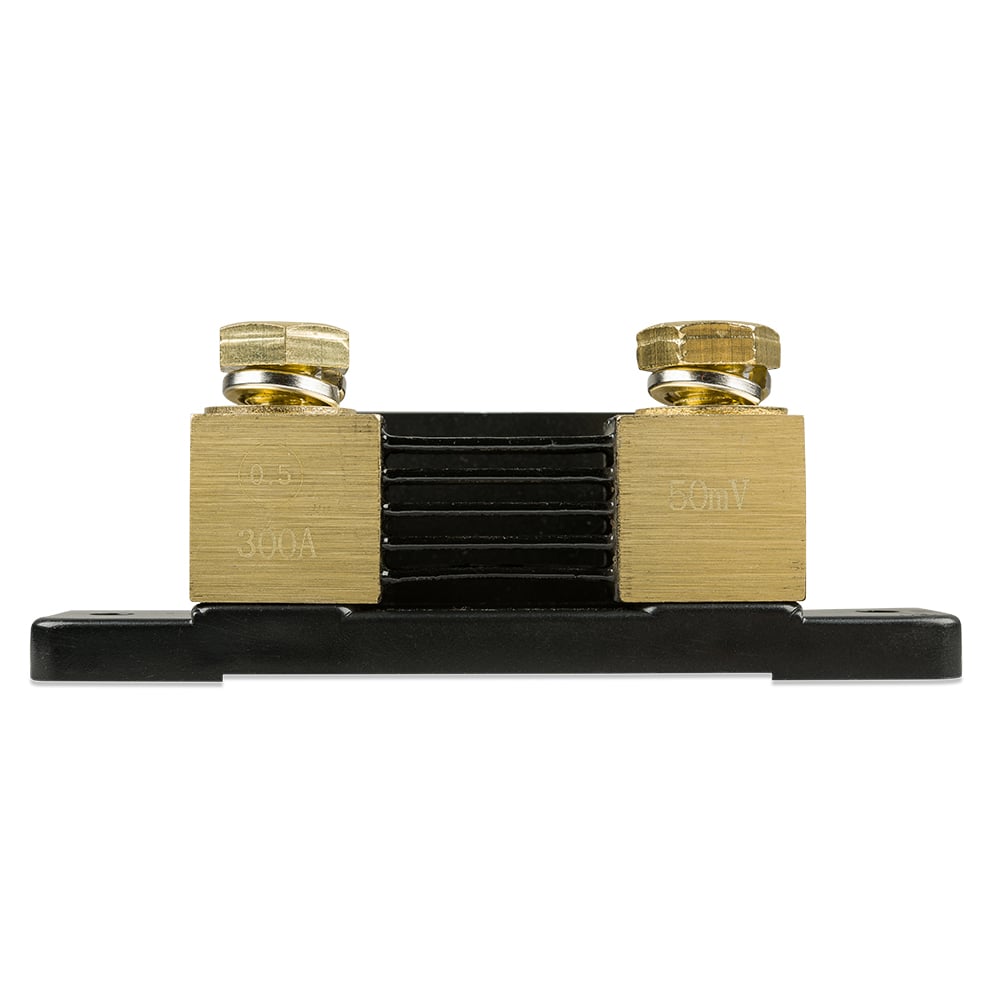

Victron SmartShunt 300A/50mV battery monitor

The SmartShunt 300A from Victron Energy (MPN SHU050130050) is an all-in-one battery monitor without its own display – instead, your smartphone or tablet serves as the display, connecting via Bluetooth using the VictronConnect app. This gives you access to important parameters such as the state of charge, remaining operating time, historical data, and much more at any time. Alternatively, you can connect the SmartShunt to a GX device, such as a Cerbo GX or Color Control GX, and read information from it. The connection is made via a VE.Direct cable. The SmartShunt is an ideal alternative to the BMV battery monitor, especially for systems that require battery monitoring but prefer less cabling and clutter.

about the SmartShunt 300A

• Multifunction battery motor
• Connection via Bluetooth with the VictronConnect app
• Connection with a GX device
• Stores trend data for 46 days
• Bolt for shunt connections: M10
• The following variations are also available:
  • 500A
  • 1000 A
  • 2000 A

Why monitor batteries?

Batteries are used in a wide range of applications, mostly to store energy for future use. However, the actual amount of energy stored cannot be read directly from the battery. Factors such as undercharging or overcharging, deep discharge, excessive charging or discharging currents, and high ambient temperatures can shorten the battery's service life. An advanced battery monitor allows you to monitor these factors and provides important feedback to you as the user. This allows you to take appropriate measures to extend the battery life profitably if necessary. The investment in the battery monitor therefore pays for itself quickly.

The VictronConnect app

The app is essential for setup and monitoring! The following connection options are available:

• Bluetooth
• USB, via the optional interface
• Remote control via a GX device and the VRM portal

The app is available for the following platforms:

• Android
• Apple iOS (USB is not supported; only a Bluetooth connection is possible)
• MacOS
• Windows (Bluetooth is not supported, only a connection via USB is possible)

You can download the app from the respective app stores or from the Victron product page. Alternatively, a QR code is available. Instructions for VictronConnect can also be found in the appendix.

Technical data

• Voltage range Power supply: 6.5-70V DC
• Current consumption: <1 mA
• Input voltage range, auxiliary battery: 6.5-70V DC
• Battery capacity: 1-9999 Ah
• Operating temperature range: -40°C to +50°C
• Temperature measurement range: -20°C to +50°C
• Dimensions: 44 x 120 x 44 mm
• Protection class IP21

Scope of delivery:

1x Victron SmartShunt 300A battery monitor
2x cables with fuse, for '+' connection and starter battery or midpoint connection
