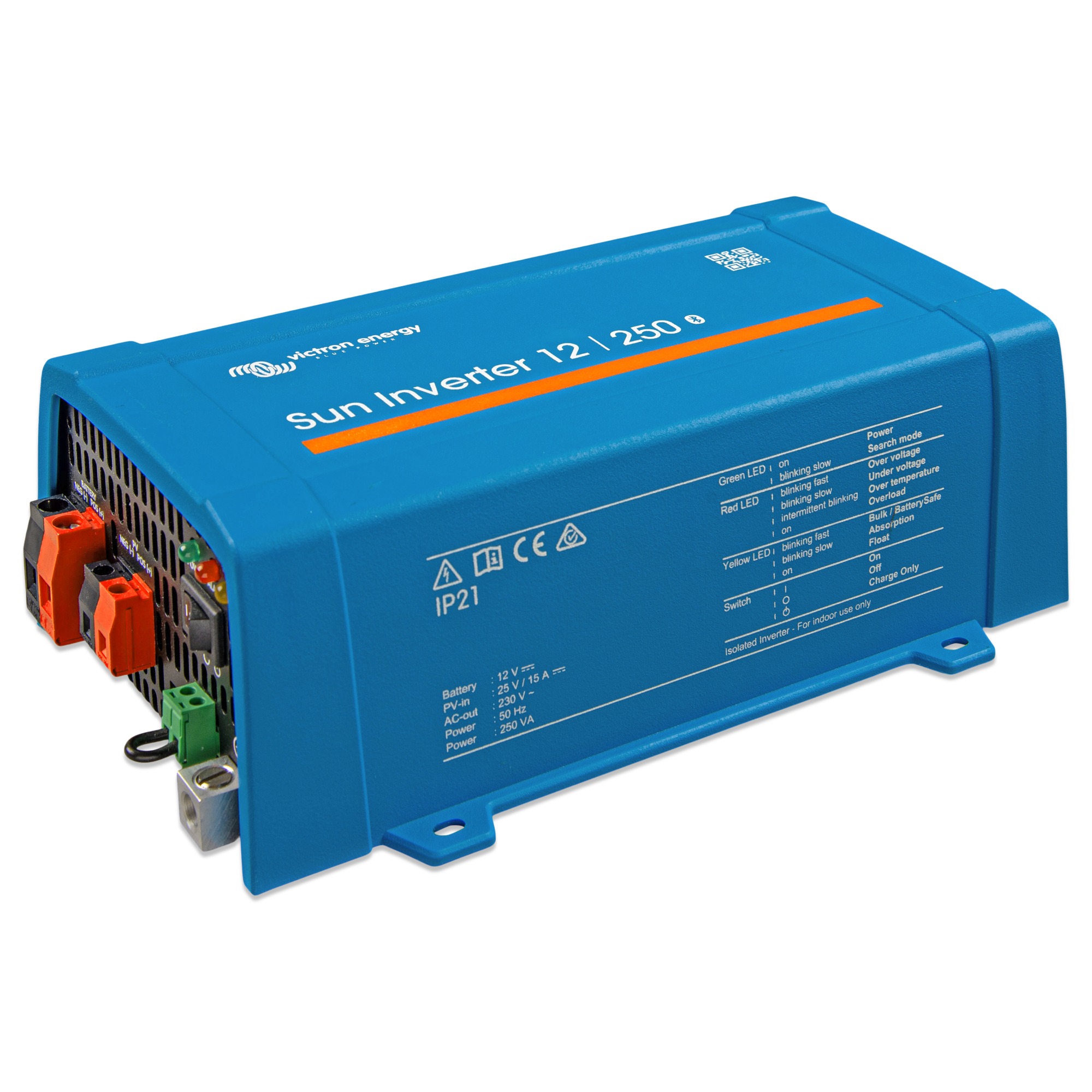

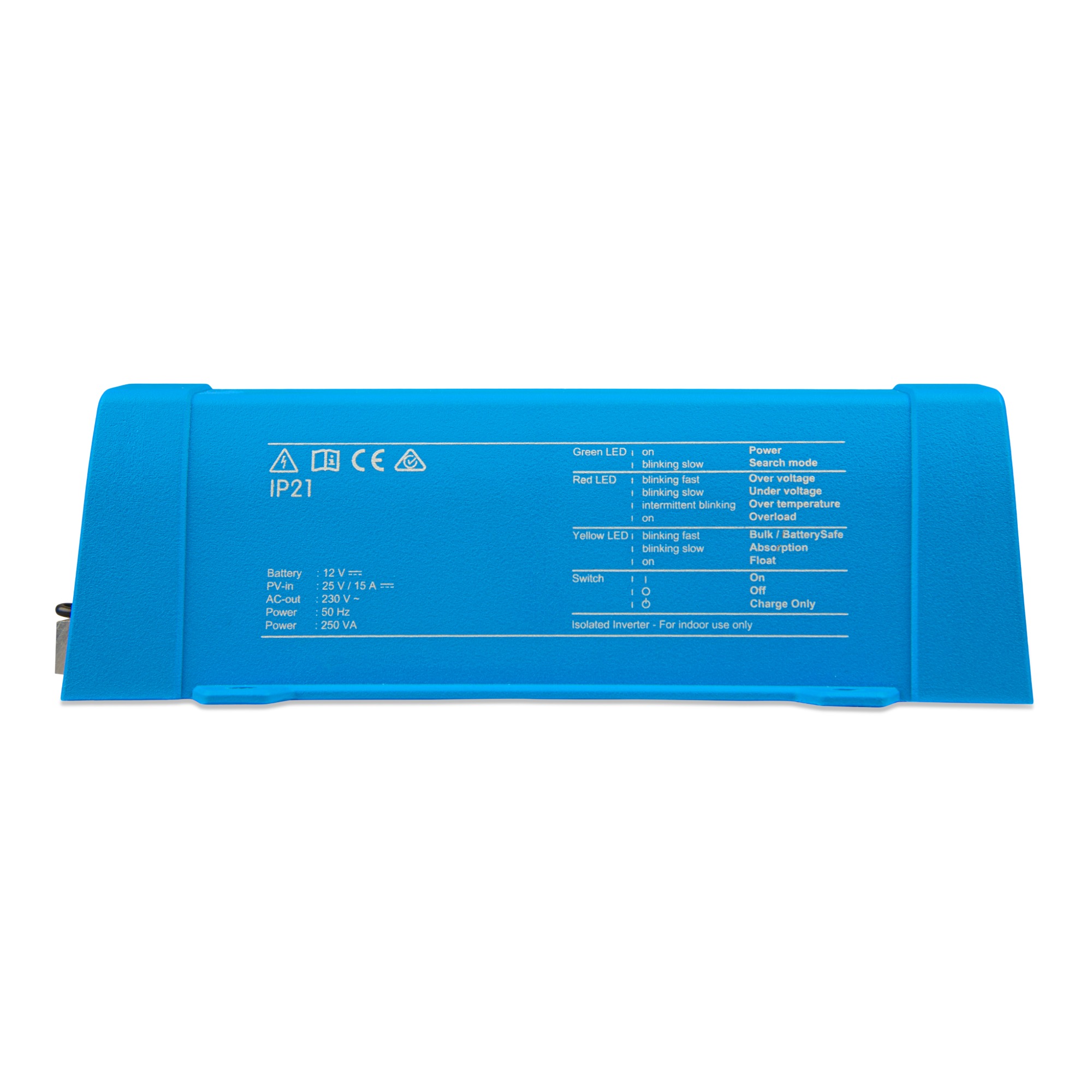

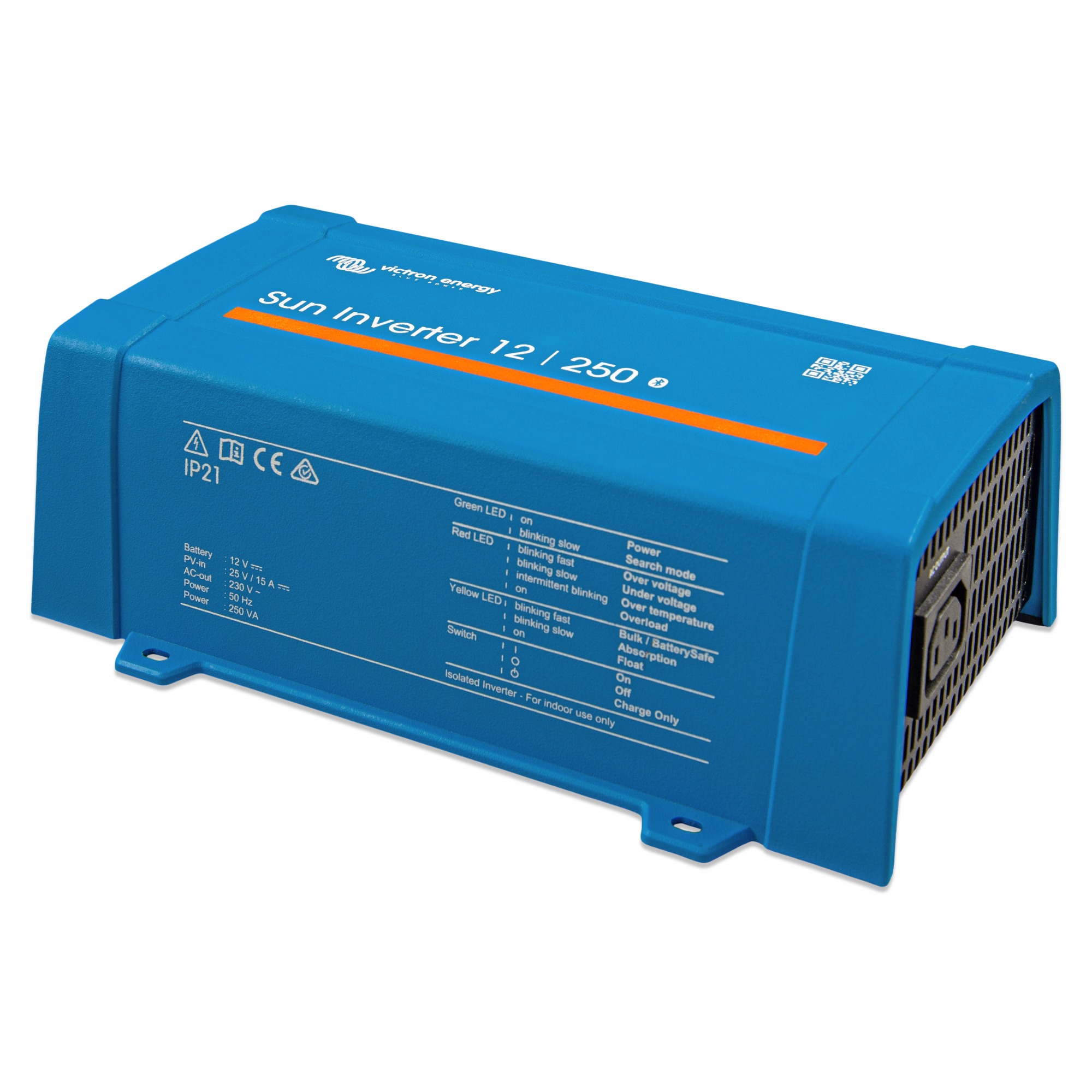

Victron Sun Inverter 12/250-15 IEC 12V 250VA Inverter with PWM Solar Charge Controller

The Victron Energy Sun Inverter 12/250-15 IEC (MPN: SIN121251100) combines a 12-V sine-wave inverter with an integrated 15-A PWM solar charge controller. The unit provides 250 VA of rated power, or 200 W of continuous power at 25 °C, and can simultaneously use connected solar panels to charge the battery. Built-in Bluetooth, the VictronConnect app, and VE.Direct enable system configuration and monitoring. An ECO mode further reduces self-consumption during low-load conditions.

250-VA inverter with integrated 15-A solar charge controller

• 250 VA rated power at 25 °C
• 200 W continuous power at 25 °C
• 175 W continuous power at 40 °C
• Up to 400 W peak power
• Pure sine wave AC voltage at 230 V AC
• For 12-V battery systems
• Integrated PWM solar charge controller with up to 15 A
• PV input for up to 25 V and 375 W
• ECO mode to reduce self-consumption
• Bluetooth and VictronConnect integrated
• VE.Direct for communication and system monitoring
• Remote control and BMS connection possible
• IEC-320 output
• Protection class IP21

230 V power supply from a 12 V battery system

The Sun Inverter converts the DC voltage of a 12-V battery system into 230 V AC voltage. At 25 °C, the unit provides 250 VA rated power or 200 W continuous power. At 40 °C, the specified continuous power is 175 W. Up to 400 W can be provided for short periods.

The increased peak power is particularly relevant for loads with high inrush current requirements. This makes the inverter suitable for compact mobile and stationary applications in which smaller 230-V loads are to be operated independently of the public power grid.

Integrated PWM Solar Charge Controller

In addition to the inverter, the Sun Inverter features an integrated PWM solar charge controller. This supports a maximum PV current of 15 A, a maximum PV voltage of 25 V, and a PV power of up to 375 W. This allows the connected 12-V battery to be charged directly via suitable solar modules.

The charging algorithm is configurable. Using the ON/OFF/CHARGER-ONLY switch, you can choose to operate the entire unit, shut it down completely, or activate only the solar charging function.

ECO Mode for Lower Self-Consumption

In ECO mode, the inverter switches to energy-saving standby mode when the load is low or absent. At regular intervals, the device checks whether a sufficiently high load is present again and then automatically resumes normal inverter operation.

Power consumption without a load is 4.2 W. In ECO mode, this value is reduced to 0.8 W. This makes the feature particularly suitable for battery-based systems where a 230-V load is not continuously active.

Bluetooth, VictronConnect, and VE.Direct

The Sun Inverter can be connected directly to the VictronConnect app via its built-in Bluetooth. There, operating parameters such as battery voltage, AC output, load, as well as solar voltage and solar current can be monitored. Additionally, various operating and charging parameters can be configured.

Via VE.Direct, the device can also be integrated into other Victron system components and monitoring solutions.

Remote Control and BMS Integration

The Sun Inverter can be turned on and off externally via the remote connection. Additionally, a compatible battery management system can control the device and, under certain battery conditions, shut down the inverter or the solar charge controller.

Compact Design and Integrated Protection Functions

The Sun Inverter features a steel housing with a plastic cover and measures 86 × 165 × 260 mm, weighing 2.4 kg. The permissible operating temperature range is from -40 to +60 °C, although power output is reduced above 40 °C.

The integrated protection functions include protection against output short circuits and overloads, as well as protection against excessively high or low battery voltage, overtemperature, and excessive DC ripple voltage.

Technical Specifications

• Battery system: 12 V DC
• DC input voltage range: 9.2–17 V
• Rated power at 25 °C: 250 VA
• Continuous power at 25 °C: 200 W
• Continuous power at 40 °C: 175 W
• Peak power: 400 W
• AC output: 230 V AC ±3%
• Frequency: 50 / 60 Hz ±0.1%
• Maximum efficiency: 87%

• Controller type: PWM
• Maximum PV voltage: 25 V
• Maximum PV current: 15 A
• Maximum PV power: 375 W
• Recommended solar panel type: 36 cells
• Charging algorithm: Programmable

• Bluetooth: Built-in
• App: VictronConnect
• Communication: VE.Direct
• ECO mode: Yes
• Remote Control: Yes
• BMS Connection: Yes, via remote connection

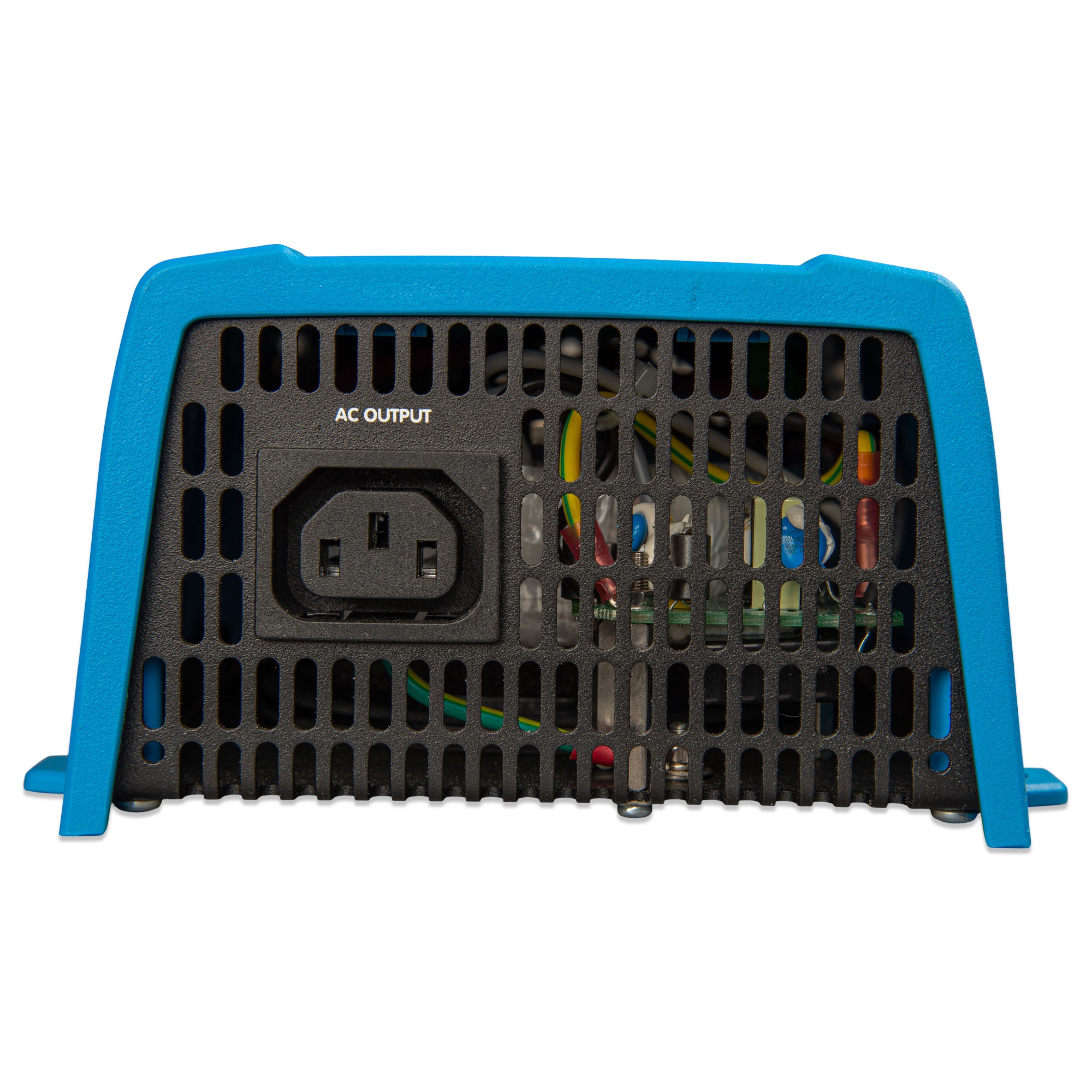

• AC Output: IEC-320

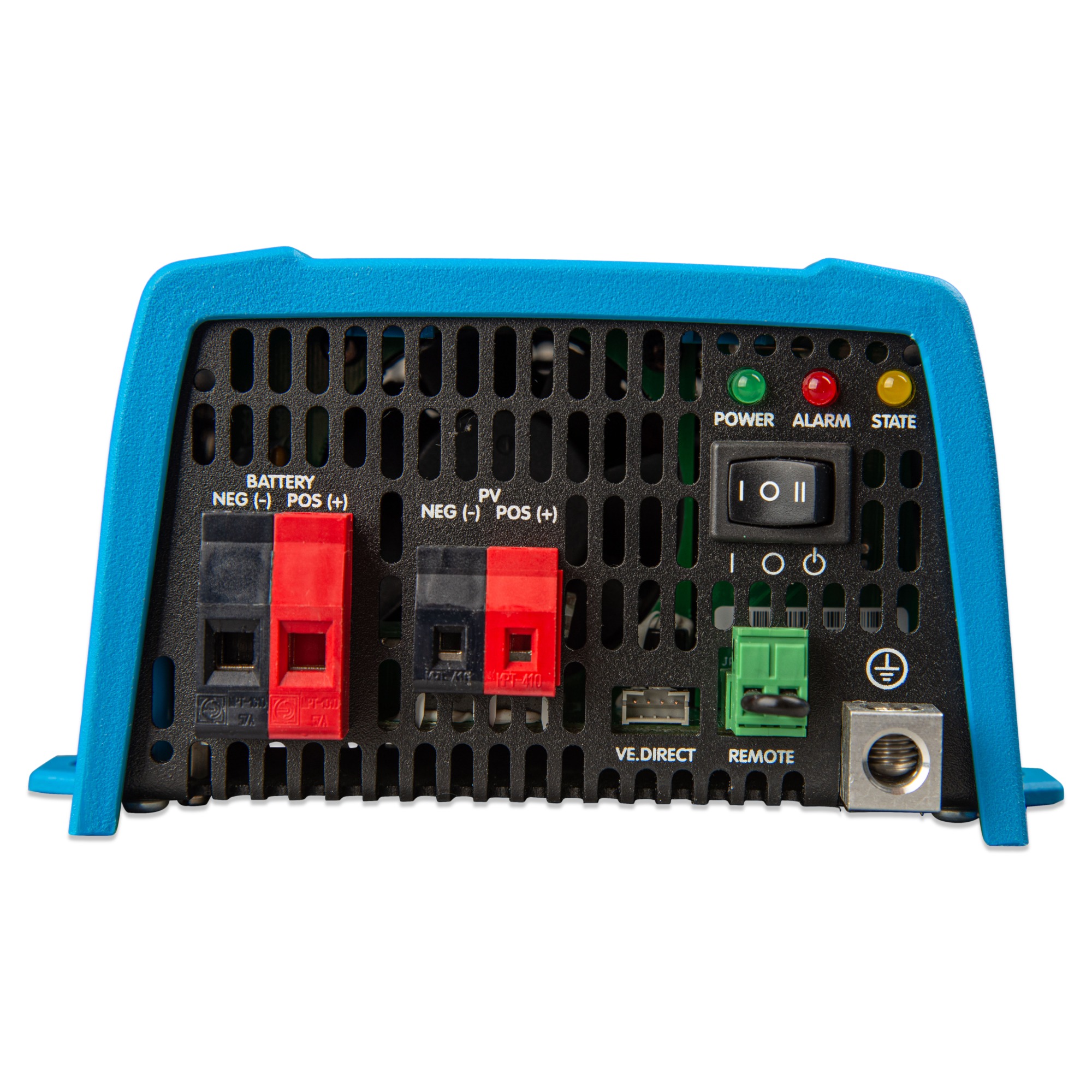

• Battery connection: Screw terminals
• Max. battery cable cross-section: 10 mm² / AWG 8
• PV connection: Screw terminals
• Max. PV cable cross-section: 4 mm² / AWG 12

• No-load power: 4.2 W
• No-load power in ECO mode: 0.8 W
• Protection rating: IP21
• Operating temperature: -40 to +60 °C
• Power reduction: above +40 °C
• Relative humidity: max. 95%, non-condensing
• Housing: Steel housing with plastic cover
• Color: Blue, RAL 5012
• Dimensions (H × W × D): 86 × 165 × 260 mm
• Weight: 2.4 kg

Package Contents

1 × Victron Energy Sun Inverter 12/250-15 IEC
1 × IEC-320 plug
