Zendure Smart D0 Meter - Meter for monitoring own consumption

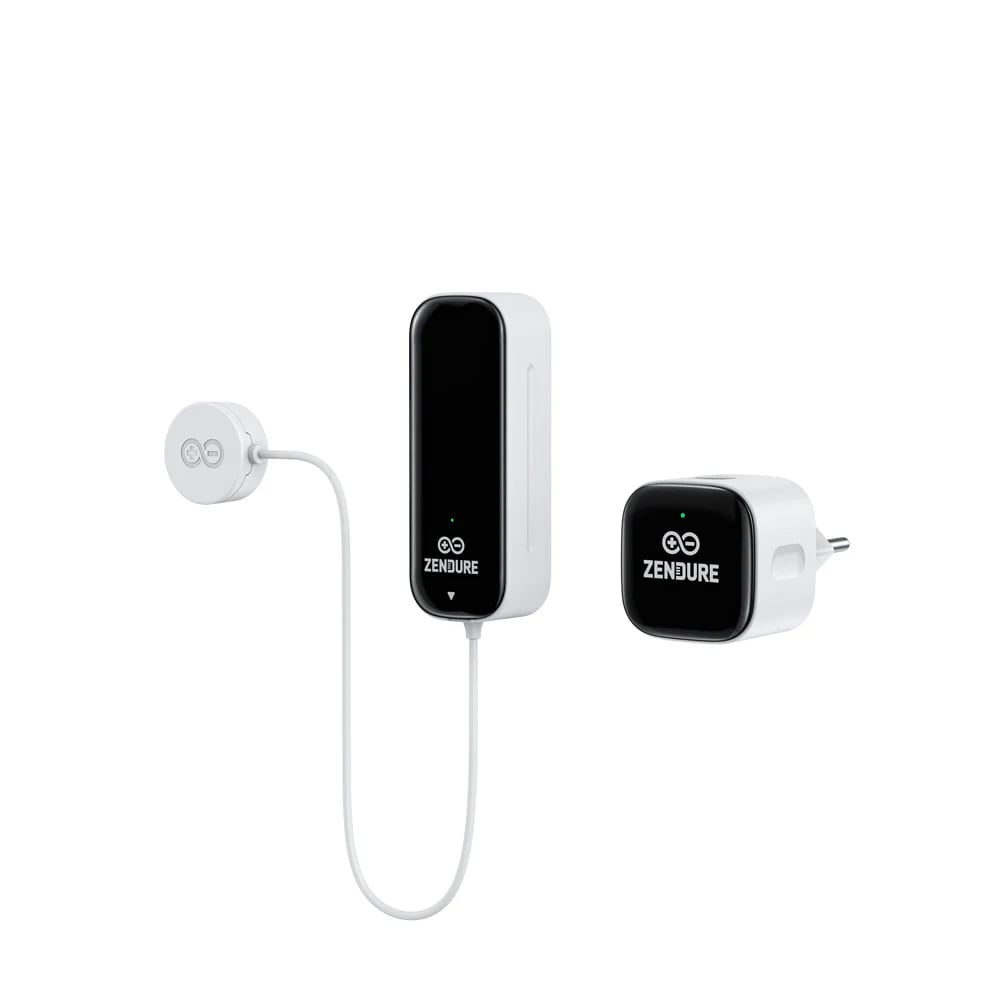

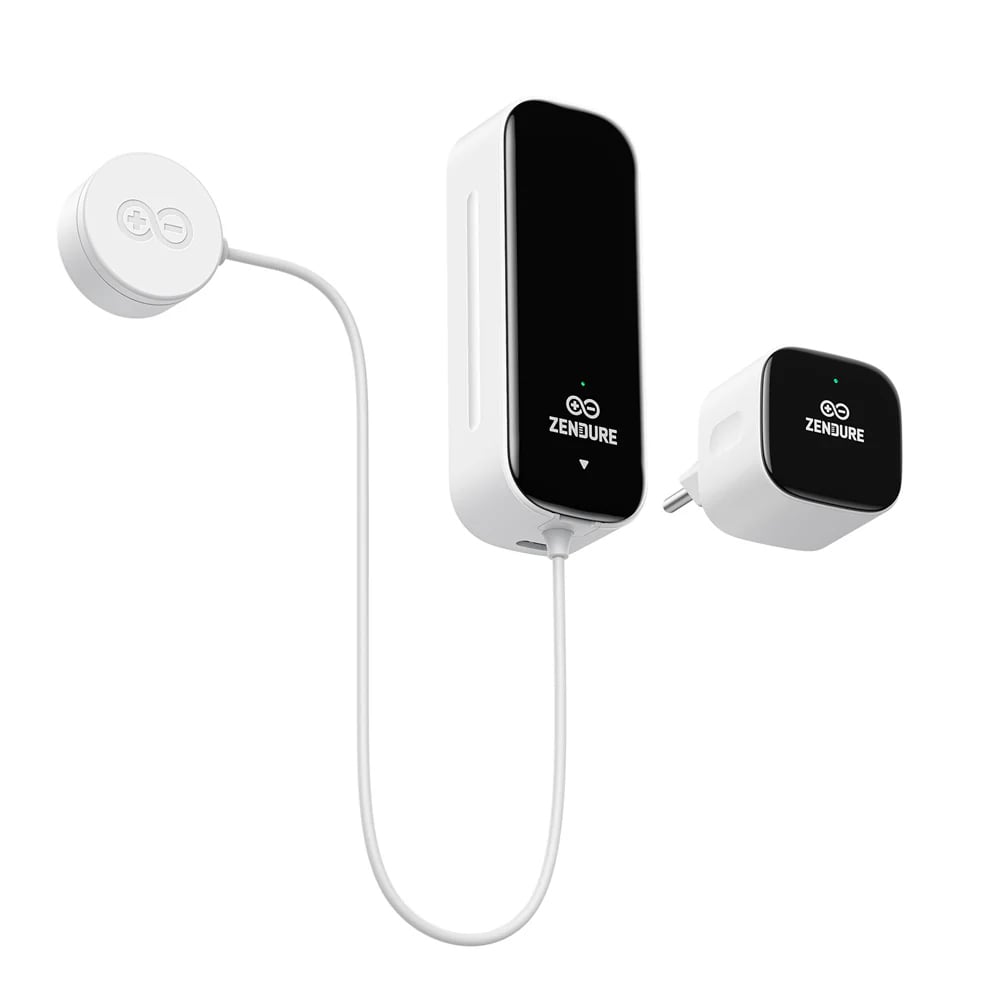

The Zendure D0 meter (MPN: ZDZHD0) is a smart meter that has been specially developed to accurately record your household's energy consumption and evaluate it in real time. It is attached directly to the digital electricity meter and, in conjunction with ZEN+ OS, the central operating system for your energy management, enables you to actively control and optimize your energy consumption. This not only gives you a transparent overview of your electricity consumption, but also allows you to actively control and optimize it. The reader guarantees a stable connection, regardless of whether you use it in the basement or garage. You also have a lot of flexibility when it comes to power supply. Operate the meter with either two AA batteries (not included) or conveniently via the USB-C port. With batteries, you get an update every 10 seconds, with Type-C even every second. The system also impresses with its simple plug-and-play installation and can be easily integrated into smart home platforms such as Home Assistant.

The advantages of the Zendure D0 meter

• Response time under 3 seconds
• 1 W precision
• Real-time overview of power consumption
• Flexible data transfer – locally or via the cloud
• Local communication – works even without an internet connection
• Plug-and-play installation
• Complete control over your energy
• Smart home connectivity (e.g., Home Assistant)
• App functions for control and evaluation
• No ongoing annual fees

ZEN+ OS

ZEN+ OS is the heart of the Zendure ecosystem, enabling central control and analysis of all connected devices. The D0 meter is compatible with Hyper 2000, SolarFlow 800, SolarFlow 800 Pro, SolarFlow 2400 AC, AIO 2400, Hub 2000, and Hub 1200. Please note that compatibility may vary depending on the electricity meter used. We recommend checking compatibility with your meter model before purchasing. If you have any questions or uncertainties, our support team will be happy to help.

Finally, here's a tip: Ideally, place the bridge between the reader and the router to get the best signal strength. If there is a power outlet on the meter, we recommend using the USB-C port for a permanent power supply. This will save you the hassle of changing batteries.

Technical data

D0 Reader

• Input voltage (USB-C): 5 VDC
• Input voltage (AA batteries): 3 VDC
• Max. rated power: 1 W
• Frequency: 803 - 930 MHz
• Max. transmission power: 20 dBm
• Operating temperature: -20°C - +50°C
• Dimensions: 37 x 98.47 x 26 mm

Bridge

• Input voltage (USB-C): 100 - 240 VAC, 50/60 Hz
• Max. rated power: 3 W
• Bluetooth
  • Protocol - Bluetooth 5.0
  • Frequency: 2402 - 2480 MHz
  • Max. transmission power: 20 dBm
• Wi-Fi
  • Protocol - 802.11 b/g/n
  • Frequency: 2412 - 2472 MHz
  • Max. transmission power: 20 dBm
• Operating temperature: -20°C - +50°C
• Dimensions: 42.92 x 42.92 x 71.49 mm

Scope of delivery

1x D0 reader
1x Bridge
