SparBundle Ecoflow Delta Pro 3.6kWh + solar panel + additional battery(ies) + Smart Home Panel
The bundle of the EcoFlow DELTA Pro Powerstation and a matching Offgridtec solar module (MPN 4-01-014615) provides the ideal power supply for camping and outdoor adventures, at home or as a backup solution in case of power failure. It is optionally available with two foldable 440W FSP-2 solar cases, two 400W EcoFlow solar bags or three 410W Luxen full black solar modules. Optionally, the SmartHome Panel, a spare battery or a second power station can also be selected.
Characteristics:
Ideal for use in camping and outdoor areas, on expeditions or as an emergency power supply
Charging with solar energy
Supply up to 14 consumers at the same time
All components perfectly matched
Quick and easy installation according to the Plug & Play principle
Portable and lightweight design for all components

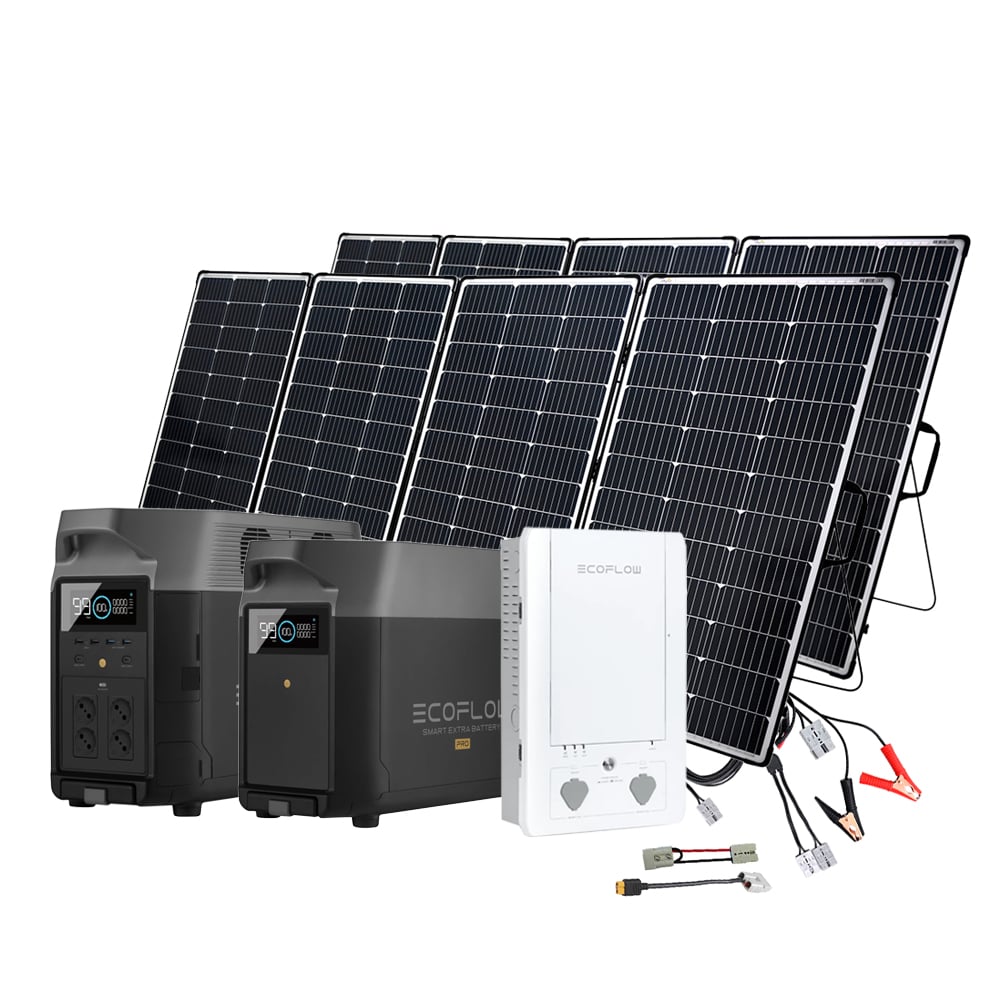

The EcoFlow DELTA Pro + Offgridtec® solar panel bundle includes:
2x Offgridtec FSP-2 440W Foldable Solar Panel (Solar Case)
+ Adapter cable Anderson plug Series connection
+ Adapter cable Anderson to XT60 20cm
Or: 2x Offgridtec Ecoflow 400W foldable solar panel (solar bag)
+ Ecoflow XT60 solar cable

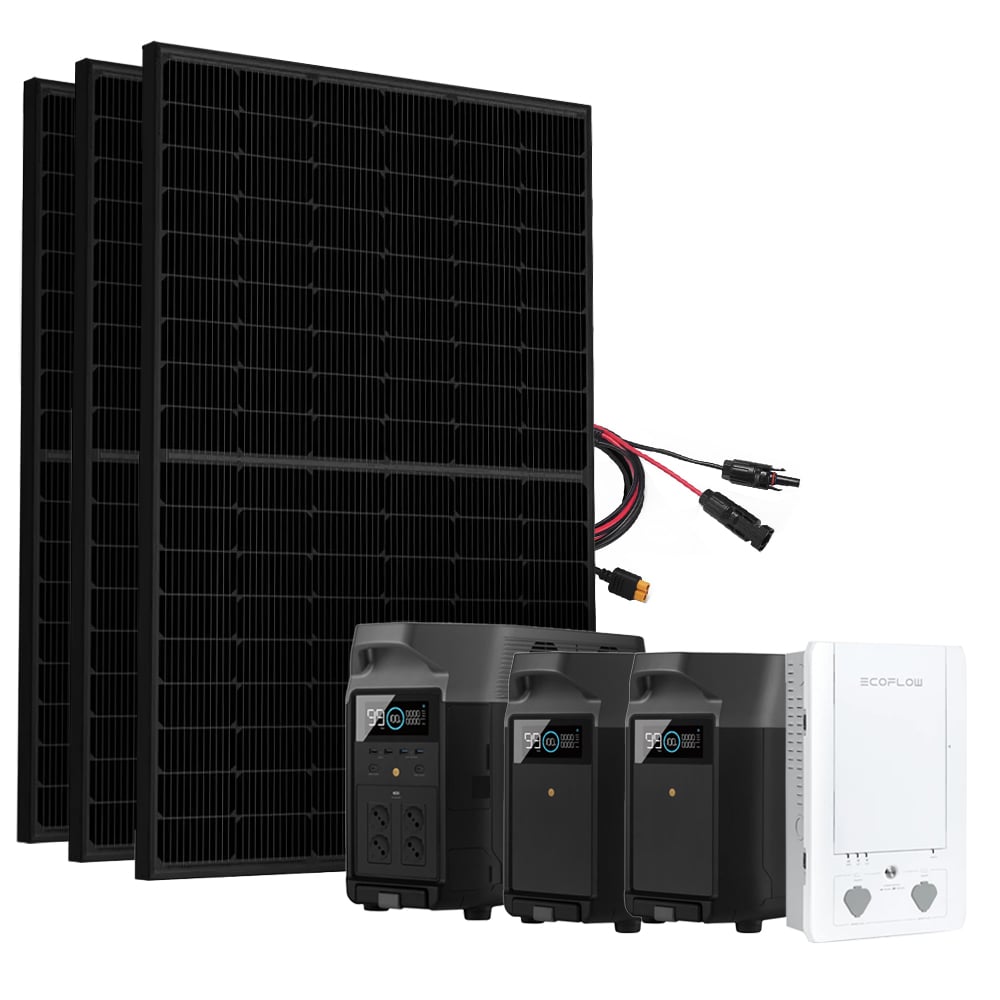

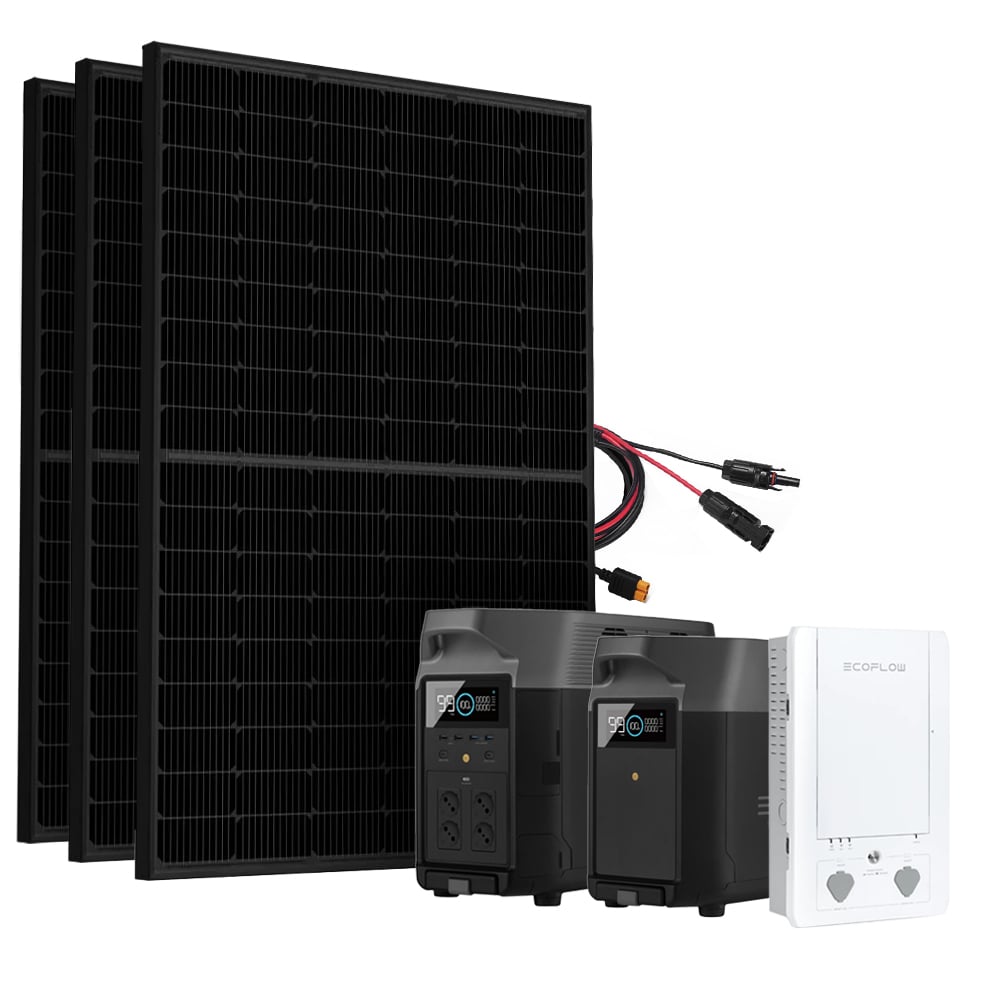

Or: 3x 410W Luxen Full black solar panel + Ecoflow XT60 solar cablel
EcoFlow DELTA Pro Powerstation 3,6Wh
Optional Addition:
Ecoflow Delta Pro Extra Smart Battery
Ecoflow Delta Smart Home Panel (Note: The installation of the EcoFlow Smart Home Panel must be carried out by a licensed electrician).
EcoFlow DELTA Pro Powerstation
With the DELTA Pro (MPN 50034008), EcoFlow presents the largest version of its premium DELTA series in the mobile power station range to date. With its numerous connection and charging options, this portable power station is a versatile all-rounder for use at home, as a backup in the event of a power failure or for camping and outdoor adventures.
With its capacity of 3600Wh and the 3600W inverter, the DELTA Pro can power almost any appliance, such as kitchen appliances, lights, mobile phones and laptops or tools. With the DELTA Pro Smart add-on batteries, the capacity can even be extended by up to 7.2kWh (sold separately).
Inputs and outputs of the EcoFlow DELTA Pro:
AC charge input: Max. 2900W, 230V - 12.5A
Car charge input: supports 12V/24V battery, standard 8A
Solar charge input: 11-150V, max. 15A, max. 1600W
AC output (4x): total 3600W (peak 7200W), 230V/16A
Max. Device power supported by X-Boost: 4500W
USB-A output (2x): 5V - 2.4A, max. 12W per port
USB-A fast charging (2x): 5V/2.4A, 9V/2A, 12V/1.5A, max. 18W per port
USB-C output (2x): 5/9/12/15/20V - 5A, max. 100W per port
DC5521 output (2x): 12.6V - 3A, 38W per port
Car charger output (1x): 126W - 12.6V/DC - max. 10A
Anderson port (1x): 30A, 12.6V
Supports W-Lan & Bluetooth
Supports up to 2 DELTA Pro Smart Extra batteries & smart generator (sold separately)
Technical data:
Dimensions: 635 x 284 x 420 mm
Weight: approx. 45 kg
Warranty: 24 months manufacturer's warranty
Capacity: 3600Wh
Cell chemistry: LFP
Lifetime: 3,500 cycles to 80% capacity - 6,500 cycles to 50% capacity
Charging temperature: 0°C - +45°C
Discharge temperature: -20°C - +45°C
Choose between the FSP-2 440W, 400W EcoFlow or the 410W Luxen Panels!
FSP-2 440W
EcoFlow 400W
Luxen 410W Full Black
Nominal power
440W
400W
410W
Number of pages
4 x 110W
4 x 100W
1 x 410W
Module voltage (Vmp)
40V
41V
31,83V
Max. Charge current (Imp)
11A
9,8A
12,88A
Open circuit voltage (Voc)
48V
48V
37,98V
Short circuit current (Isc)
12A
11A
13,77A
Cell efficiency
>22,63%
>22,4%
21%
Dimensions closed
1072 x 547 x 90 mm
1068 x 620 x 24 mm
1722 x 1134 x 30mm
Dimensions open
1072 x 2188 x 22,5 mm
1068 x 2390 x 24 mm
1722 x 1134 x 30 mm
Weight
13,2 kg
15 kg
21kg
The FSP-2 foldable solar panels are equipped with highly effective SunPower solar cells and can be set up within seconds with the integrated supports and always aligned to suit the position of the sun. When folded, the solar panels are easy to handle and quickly stowed away. The FSP-2 modules work with rear-contacted solar cells that generate efficiencies of over 22%. A 6m solar cable is included in the scope of delivery of the FSP-2 modules.
With the compact, foldable design and a shoulder strap, you can easily carry the EcoFlow 400W solar panels to your campsite or store them in your camper van while you're on the road. The bag, to protect the module when not in use, quickly and easily converts into a handy stand to find just the right angle to catch the sun's rays. Connect the modules to any EcoFlow Delta power station to charge them efficiently. Thanks to the universal solar connectors, connection to third-party generators is also possible.
The Luxpower 410W Full Black Series 5 solar module from Luxen Solar is a monocrystalline and modern module with gallium-doped technology and 108 half-cell layout. Thanks to the multi-busbar technology, three integrated by-pass diodes and the two-part arrangement of the cell strings, this solar panel offers high hot-spot resistance in solo operation and a solid current yield in strings with many modules, even in poor light and partial shading. The noble full-black design makes it a good choice when it comes to finding a solar cell for rooftop installations on residential buildings or for balcony power plants and many other applications.
Optimal cabling
The bundle includes all cables necessary to connect the Powerstation to the selected solar module.
The EcoFlow 400W solar bags and the Canadian Solar 375W solar modules include an EcoFlow XT60 solar cable (3.5m).
The FSP-2 solar bags include a connection kit. With the XT60 to Anderson Adapter, you connect the module's connection cable directly to the mobile power plant and charge it with solar energy. The Anderson plug adapter cable has an Anderson plug for the solar modules at both ends. Thanks to the plug and play principle, connecting two modules in series is simple and straightforward.
