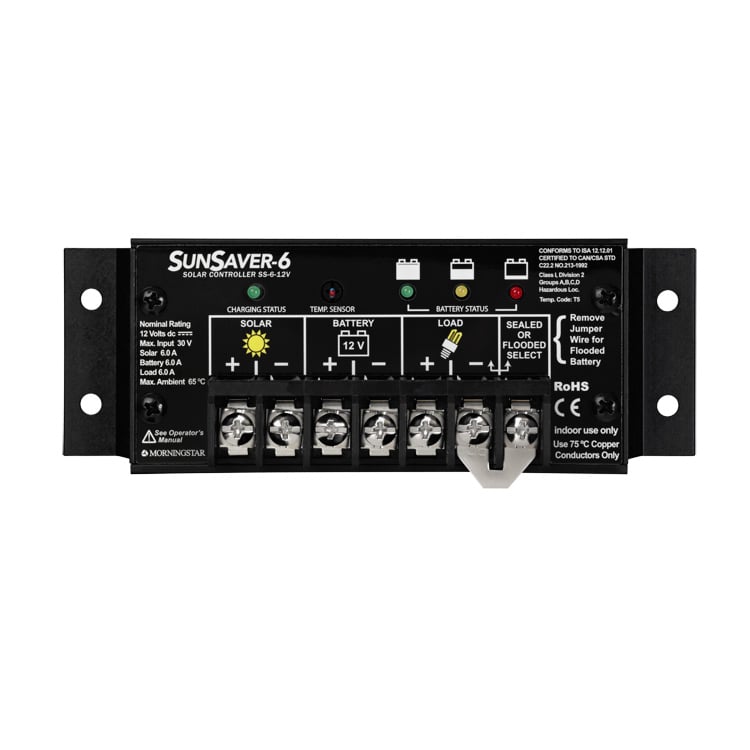

Morningstar Sunsaver SS-6L-12V

Product number: 1-05-004715

Shipped in 10-14 Werktage

€92.03*

Prices incl. 19% VAT plus shipping costs

€77.34**

Incl. 0% VAT plus shipping costs for orders according to §12 Abs. 3 UStG

Product number: 1-05-004715

VAT-exempt delivery possible*

VAT-exempt order for Germany according to § 12 para. 3 UstG

§ Section 12 (3) UstG only applies if you are a private individual and the product is installed in Germany. To benefit from the 0 percent rate, please confirm at the checkout that you are eligible for the zero tax rate according to § 12 para. 3 UstG. Subsequently, the tax rate will automatically be set to zero for eligible items.

Similar Products

VAT-exempt delivery possible*

SunSaver Duo 25A Morningstar Corporation PWM Charge Controller + display remote

€222.49* €186.97**

The SunSaver 25A Morningstar Corporation PWM Charge Controller + display remote for two battery circlesis perfect for applications on boats or in cara...

Soon available again

VAT-exempt delivery possible*

Morningstar TriStar TS45 12V/24V/48V 45A

€247.73* €208.18**

The Morningstar TriStar-controller comes with three different funtions - battery charging, load regulation and redirection control.The controller work...

Shipped in 2-5 days

VAT-exempt delivery possible*

Morningstar TriStar TS60 12V/24V/48V 60A

€339.48* €285.28**

The Morningstar TriStar-controller comes with three different funtions - battery charging, load regulation and redirection control.The controller work...

Shipped in 10-14 Werktage

VAT-exempt delivery possible*

Morningstar TriStar TS-MPPT-60 12V/24V/48V 60 A

€825.24* €693.48**

The TriStar MPPT with TrakStar-Technology™ is a high-end MPPT charge controller for offgrid-photovoltaic systems up to 3kW.Compared to other MPPT-cont...

Shipped in 10-14 Werktage

VAT-exempt delivery possible*

Morningstar PS-15 Prostar Professional Charge Controller

€140.59* €118.14**

The ProStar PS-15 is a mid-range charge controller with extensive electronical protection functions and is perfectly suitable for professional and con...

Shipped in 10-14 Werktage

The Morningstar Sunsaver ss-6L is a high-end charge controller which is easy to install. It comes with a wide range of various protection functions
which ensures a long and safe battery performance. It is safe from dust and humidity and through its robust design and can also be used on boats and yachts.

Electrical data:

System voltage: 12V
Solar current: 6A
Load current: 6A

Features:

LEDs for processing status and the battery's charging level
suitable for marine application
4-step PWM-charge controller
LVD: load disconnect at undervoltage
easy installation

Protection functions:

solar: overload, short-circuit, overvoltage
load: overload, short-circuit, overvoltage
battery: overvoltage
circuits: reverse polarity, overheating, flash and transient overvoltage
current reflow protection at night

Morningstar grants a warranty of 5 years.

Zertifikat_SS-6L-12V.pdf Download

Bedienungsanleitung_SS-6L-12V.pdf Download

Ambient temperature: -40°C - +60°C

Category name: Solar charge controller

Charge controller type: PWM

Connection options: 12V/DC

Connection terminal: 5 mm² / 10 AWG

Humidity: 100% (non-condensing)

Input current solar: 6A

Input voltage: 12 V DC

Manufacturer: Morningstar Corp.

Output voltage: 12V DC

Product Type: Charge controller

Protective functions: 54054,54055,54037

Suitability for the tropics: 54039,54038,54053

System voltage: 12V DC

Weight: 230 g
