5
2
Shipped in 10-14 Werktage
Loading...
€265.41*
€223.03*
Product number:
1-05-002265
VAT-exempt delivery possible*
VAT-exempt delivery according to § 12 para. 3 UstG
§ Section 12 (3) UstG only applies if you are a private individual and the product is installed in Germany. To benefit from the 0 percent rate, please confirm at the checkout that you are eligible for the zero tax rate according to § 12 para. 3 UstG. Subsequently, the tax rate will automatically be set to zero for eligible items.

VAT-exempt delivery possible*
1-05-002260
Morningstar TriStar TS45 12V/24V/48V 45A
The Morningstar TriStar-controller comes with three different funtions - battery charging, load regulation and redirection control.The controller works in on of the selectable modes. If more functions are needed at the same time more controllers can be connected.
The TriStar was developed with high-end technology and shows a wide range of functionality at a competative price. The optional TriStar-displayis the most advanced and most informative controller-display on the market. This UL-certified controller is suitable for solar-home-systems or professionalapplications.
The Morningstar TriStar-controller comes with three different funtions - battery charging, load regulation and redirection control.The controller work...
Shipped in 10-14 Werktage
Shipped in 10-14 Werktage
VAT-exempt delivery possible*
1-05-002270
Morningstar TriStar TS-MPPT-60 12V/24V/48V 45A
The TriStar MPPT with TrakStar-Technology™ is a high-end MPPT charge controller for offgrid-photovoltaic systems up to 3kW.Compared to other MPPT-controllers it has the highest efficiency of 99% and the lowest powerloss.
The TriSTar MPPT is equipped with an intelligent tracking-algorithm which optimizes the PV-system's energy-harvesting by detectingthe systems maximum power point.This is the first PV-controller with an intergrated ethernet-interface which allows data logging for 200 days.
The TriStar MPPT with TrakStar-Technology™ is a high-end MPPT charge controller for offgrid-photovoltaic systems up to 3kW.Compared to other MPPT-cont...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
1-05-002275
Morningstar TriStar TS-MPPT-60 12V/24V/48V 60 A
The TriStar MPPT with TrakStar-Technology™ is a high-end MPPT charge controller for offgrid-photovoltaic systems up to 3kW.Compared to other MPPT-controllers it has the highest efficiency of 99% and the lowest powerloss.
The TriSTar MPPT is equipped with an intelligent tracking-algorithm which optimizes the PV-system's energy-harvesting by detectingthe systems maximum power point.This is the first PV-controller with an intergrated ethernet-interface which allows data logging for 200 days.
The TriStar MPPT with TrakStar-Technology™ is a high-end MPPT charge controller for offgrid-photovoltaic systems up to 3kW.Compared to other MPPT-cont...
Shipped in 10-14 Werktage
Shipped in 10-14 Werktage
VAT-exempt delivery possible*
1-05-004715
Morningstar Sunsaver SS-6L-12V
The Morningstar Sunsaver ss-6L is a high-end charge controller which is easy to install. It comes with a wide range of various protection functionswhich ensures a long and safe battery performance. It is safe from dust and humidity and through its robust design and can also be used on boats and yachts.
Electrical data:
System voltage: 12V
Solar current: 6A
Load current: 6A
Features:
LEDs for processing status and the battery's charging level
suitable for marine application
4-step PWM-charge controller
LVD: load disconnect at undervoltage
easy installation
Protection functions:
solar: overload, short-circuit, overvoltage
load: overload, short-circuit, overvoltage
battery: overvoltage
circuits: reverse polarity, overheating, flash and transient overvoltage
current reflow protection at night
Morningstar grants a warranty of 5 years.
The Morningstar Sunsaver ss-6L is a high-end charge controller which is easy to install. It comes with a wide range of various protection functionswhi...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
1-66-008060
Mastervolt SCM40 40A 12V 24V PWM
High efficiency: your batteries are charged quickly.
Capacity for solar panel configurations of up to 3600 Wp.
Suitable for AGM, gel, wet and Mastervolt Lithium Ion batteries.
Fast and flexible setting of battery type.
Battery temperature sensor for long lifespan.
Automatic 12 V/24 V/48 V detection.
Switchable output.
Noiseless operation.
LCD display.
Fully protected against overtemperature, overload, high/low battery voltage, high/low PV voltage, short circuit and reverse polarity.
High efficiency: your batteries are charged quickly.
Capacity for solar panel configurations of up to 3600 Wp.
Suitable for AGM, gel, wet and Mast...
Soon available again
Soon available again
VAT-exempt delivery possible*
1-67-008535
Victron BlueSolar MPPT 100/50 12V 24V 50A
The Victron MPPT 100/50 (MPN SCC020050200) is part of the BlueSolar MPPT charge controller familiy and provides ultra-fast powertracking which extends your solar system's output. Besides a higher charging and PV-capacity this Blue varys even more from lower models.
More security compared to smaller BlueSolar modelsCompared to 75/10, 75/15 and 100/15 the BlueSolar 100/50 MPPT comes with a overheat protection with auto-switch-off and auto-restart function after reaching a normal operation temperature. Moreover it is equipped with a PV-current reflow protection (the first model in this series).
Next generation MPP-trackerEspecially on clouded days with changing light intensity a MPPT controler increases your system output by up to 30% compared to PWM charge controllers. Additionally the 100/50 is equipped with even more innovative technology like the VE.Direct data port.
Programming, real-time data and loggingLatest Apple and Android devices (smartphones, tablets,...) can be connected via VE.Direct over Bluetooth Smart Dongles and the MPPT App or via the GX Color control.Please note that the Bluetooth Smart dongle and the GX Color Control are not included in the delivery scope but available separately.
Important features:
Ultra-fast MPP-tracker ensures highest possible outcome even when it is cloudy
Integrated VE.Direct data port for connecting devices like the Bluetooth Smart Dongle or the GX Color Control panel
Suitable for 12V and 24V systems
Rated charging amperage: 50A
700W max. PV-performance at 12V and 1400W at 24V
50A consumer output with auto-shutdown at imminent battery undervoltage (deep discharge protection)
Reverse polarity protection
Multistep adaptive charging algorithm
Battery charging algorithm programmable
Integrated battery life algorithm extends battery life when activated and all consumers are connected to the consumer output
Day/night-time control and dimming options
VE.Direct data port integratedVE.Direct transfers important parameters to all devices connected to the charge controller and allows communication to equipment such as the Bluetooth Smart Dongle or the GX Color Control. The VE.Direct data port is meant for products where a full canbus integration would produce extreme costs. Please check our Victron brand section for more information about VE.Direct.
Integrated battery life algorithm extends battery lifeIf the charge controller can't manage to fully charge the battery within a day the battery status switches constantly between "partly charged" and "end of discharge". This operation mode (no regular charging) is ideal for small lead batteries, for lead-acid batteries otherwise irregular charging and discharging can cause severe damage already after several months.The battery life algorithm checks the battery's charging level and heightens the switch-off threshold from day to day. That means that connected consumers are switched off earlier until the produced energy is sufficient for a full battery charge of 100%. From this point on the threshold is modulated in a way that a full charge can be reached once a week.
Delivery Scope:1x Victron SCC020050200 BlueSolar MPPT 100/50 12V 24V 50A charge controller1x Manual
The Victron MPPT 100/50 (MPN SCC020050200) is part of the BlueSolar MPPT charge controller familiy and provides ultra-fast powertracking which extends...
Shipped in 1-3 days
Shipped in 1-3 days
VAT-exempt delivery possible*
1-67-008540
Victron BlueSolar MPPT 150/35 12V 24V 48V 35A
The Victron MPPT 150/35 (MPN SCC020035000) is part of the BlueSolar MPPT charge controller familiy and provides ultra-fast powertracking which extends your solar system's output. Besides a higher charging and PV-capacity this Blue varys even more from lower models. This is the first model within the BlueSolar series that also supports 48V batteries.
Next generation MPP-trackerEspecially on clouded days with changing light intensity a MPPT controler increases your system output by up to 30% compared to PWM charge controllers. Additionally the 100/50 is equipped with even more innovative technology like the VE.Direct data port. Extensive electronical protection from:
reverse battery polarity
current reflow into the module
overheating
short-circuits
reverse PV-connection polarity
Programming, real-time data and loggingLatest Apple and Android devices (smartphones, tablets,...) can be connected via VE.Direct over Bluetooth Smart Dongles and the MPPT App or via the GX Color control.Please note that the Bluetooth Smart dongle and the GX Color Control are not included in the delivery scope but available separately.
Important features:
Ultra-fast MPP-tracker ensures highest possible outcome even when it is cloudy
If the panel is partly shaded auto-MPP-voltage tracking ensures more outcome compared to common MPPT charge controllers
Integrated VE.Direct data port for connecting devices like the Bluetooth Smart Dongle or the GX Color Control panel
High effectivity of 98%
Fully programmable charging algorithms that can be changed via a switch on the device
Rated charging amperage: 35A, 150V max. PV no-load voltage
12V:500W/24V:1000W/36V:1500W/48V:2000W
Multistep adaptive charging algorithm
Integrated temperature sensor adjusts Charging processes according to battery temperature
Day/night-time control and dimming options
VE.Direct data port integratedVE.Direct transfers important parameters to all devices connected to the charge controller and allows communication to equipment such as the Bluetooth Smart Dongle or the GX Color Control. The VE.Direct data port is meant for products where a full canbus integration would produce extreme costs. Please check our Victron brand section for more information about VE.Direct.
Integrated battery life algorithm extends battery lifeIf the charge controller can't manage to fully charge the battery within a day the battery status switches constantly between "partly charged" and "end of discharge". This operation mode (no regular charging) is ideal for small lead batteries, for lead-acid batteries otherwise irregular charging and discharging can cause severe damage already after several months.The battery life algorithm checks the battery's charging level and heightens the switch-off threshold from day to day. That means that connected consumers are switched off earlier until the produced energy is sufficient for a full battery charge of 100%. From this point on the threshold is modulated in a way that a full charge can be reached once a week.
Delivery Scope:1x Victron SCC020035000 BlueSolar MPPT 150/35 12V 24V 36V 48V 35A charge controller1x Manual
The Victron MPPT 150/35 (MPN SCC020035000) is part of the BlueSolar MPPT charge controller familiy and provides ultra-fast powertracking which extends...
Shipped in 1-3 days
Shipped in 1-3 days
1-05-004730

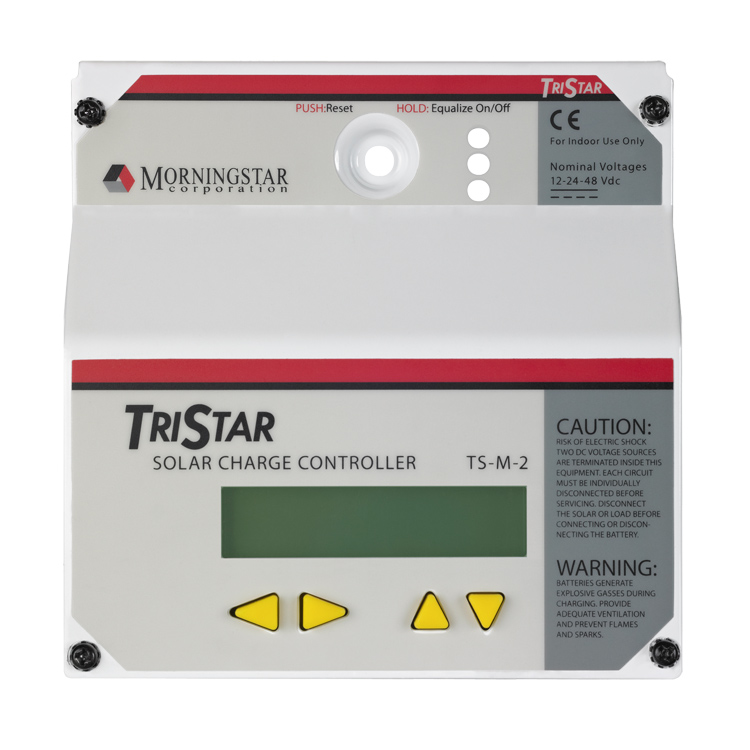

Morningstar Tristar Remote Display
The Morningstar Tristarmeter-2 (ts-m-2) is a high quality digital meter and fits all Tristar charge controllers. This Tristar meter is mounted directly on the charge controller.The 2x16 letter lcd gives you extensive information about your system, controller, logg data. It also gives alarm and error messages to easily detect and fix faults in the system.The Tristarmeter is also networkable and can display data about the complete system via the Morningstar Meter-HUB in addition to the individual charge controller data.Featureseasy to installfor 12v, 24v and 48V systemsProtection against incorrect wiringDiagnostics and protection functionsPlayback data:Operation data (battery voltage, temperature, etc.)System data (voltage, battery type, equalization charge, etc.)Diagnostic data (charge status, power in kWh, etc.)Network dataCertificates:CE CompliantRoHS CompliantETL registered component5 years manufacturer warranty
The Morningstar Tristarmeter-2 (ts-m-2) is a high quality digital meter and fits all Tristar charge controllers. This Tristar meter is mounted directl...
Soon available again
Soon available again
The Morningstar TriStar-controller comes with three different funtions - battery charging, load regulation and redirection control.
The controller works in on of the selectable modes. If more functions are needed at the same time more controllers can be connected.
The controller works in on of the selectable modes. If more functions are needed at the same time more controllers can be connected.
The TriStar was developed with high-end technology and shows a wide range of functionality at a competative price. The optional TriStar-display
is the most advanced and most informative controller-display on the market. This UL-certified controller is suitable for solar-home-systems or professional
applications.
Bedienungsanleitung_TS60.pdf
Download
Accuracy:
12/24 V: 0,1% ±50 mV; 48V: 0,1% ±100 mV
Ambient temperature:
-40°C - +45°C
Charge controller type:
PWM
Connection terminal:
35mm² / AWG 2
Idle clamping modules:
max. 125V/DC
Manufacturer:
Morningstar Corp.
Own consumption under load:
20mA
Product Type:
Charge controller
Protective functions:
Lightning, deep discharge, short circuit, overvoltage, undervoltage, reverse polarity
Scope of application:
indoor area
Weight:
1,6 kg
max. charging current:
60A
max. load current:
60A
