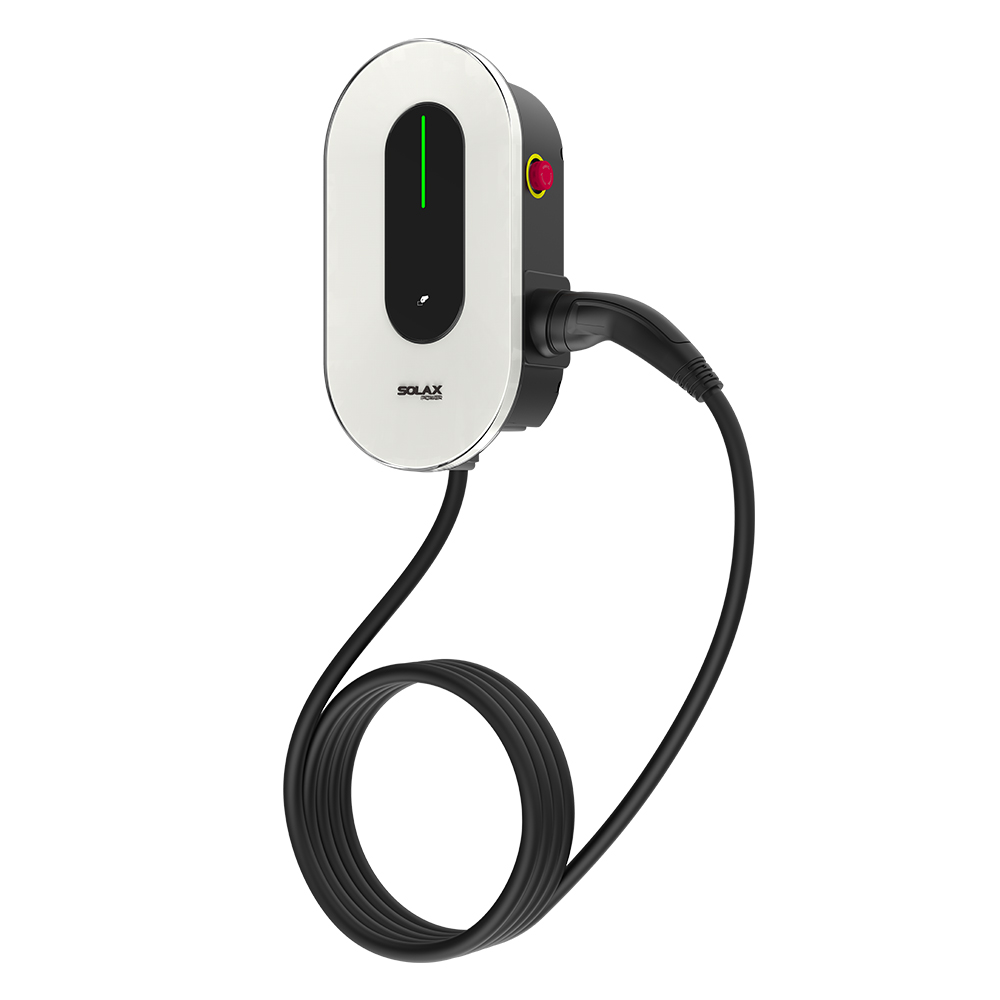

SolaX EV charger X3-HAC-22P G2 22kW smart wallbox, 3-phase

The 3-phase SolaX EV charger X3-HAC-22P G2 with 22 kW (MPN: 1050010352) uses a zero-export system and charges your electric car specifically with surplus solar energy without feeding electricity into the public grid. This allows you to maximize self-consumption from your solar system and increase the efficiency of your charging infrastructure. The unit is permanently installed on-site, and the wallbox is connected directly to the power grid. Integrated communication interfaces enable easy networking with inverters, electricity meters, or external charging management systems. RFID management enables targeted access control, while the remote control function allows you to conveniently monitor and control the charging process remotely at any time. This makes the charger a future-proof solution for independent e-mobility.

Smart EV Charger at a Glance

• Green Charging—Integration with New and Existing PV Systems
• Interoperability—Support for Multiple Communication Protocols
• Dynamic load balancing control
• Maximizes the use of surplus energy in a zero-export system
• Smart app control and RFID management function
• Parallel operation supported
• Comprehensive protection functions
• Selectable plug or outlet output
• Simple and convenient indoor and outdoor installation
• Manufacturer’s product warranty: 3 years; you can find more information here

Multiple options in the HAC series

Since there are different types of chargers in the X1-HAC and X3-HAC series, here’s a brief explanation:

• X3 – 3-phase
• HAC – Series name
• 11 – 11 kW s rated output power
• "P" - Plug type, with charging cable and connector - This model comes with a permanently attached charging cable (Type 2).

Automatic phase switching

With automatic switching between single-phase and three-phase operation, your energy system flexibly adapts to current demand at all times. When power consumption is low, the system operates in single-phase mode and uses the generated solar energy particularly efficiently. As soon as higher power is required—for example, when multiple large appliances are running simultaneously—the system automatically switches to three-phase mode. This ensures that the available solar power is optimally distributed across all phases, reliably powering even high-power devices.

Interoperability

The system is compatible with multiple communication protocols. This allows it to connect seamlessly with various inverters, battery storage systems, and monitoring units. The broad protocol support ensures that all components of your solar system communicate reliably with one another, regardless of manufacturer or system type. This allows you to flexibly integrate the system into existing installations or expand it easily as needed.

Dynamic Load Balancing

The system continuously monitors all relevant operating data of your solar system—such as voltage, current, and temperature—in real time. In the event of deviations or unusual values, it reacts immediately and automatically adjusts the settings to prevent potential risks. This ensures that overloads, overheating, or other malfunctions are detected early and prevented.

Parallel Function

The parallel function allows you to operate multiple EV chargers on the same circuit. In a solar system, two chargers can be used in parallel. The primary unit controls the distribution of solar and grid power, while the secondary unit automatically follows its settings. In standard applications, up to 20 chargers can be connected in parallel, with one unit taking over control and distributing the charging power evenly. This allows you to control all charging points centrally and efficiently.

Safety and Protection

• Overvoltage/Undervoltage Protection
• Overtemperature Protection
• Short-circuit protection
• Overload protection
• Grounding protection
• Cable protection—cable lock (app control)
• Relay protection—real-time weld seam detection
• Ground Fault Protection - Integrated Power Outage Monitoring

Smart App Control

With the SolaX app, you have access to all the important data from your solar system anytime, anywhere. You can view the current energy yield, consumption, and the status of individual components in real time. In addition, the app allows you to adjust settings directly from your smartphone—for example, to switch operating modes or receive notifications in the event of malfunctions. The user interface is clearly laid out, so you can quickly find and easily use all functions.

SolaXCloud

SolaXCloud is a smart platform for managing your home energy. It provides clear monitoring of your energy consumption and power generation, as well as easy control of all connected devices. This allows you to optimize the efficiency of your electricity consumption and get the most out of your solar system. Your data is transmitted securely and reliably at all times. With the Monitoring Cloud app, you can conveniently monitor your photovoltaic system via Wi-Fi, LAN, or 4G. You can view alerts, adjust settings, and manage maintenance. To do so, plug the dongle into the inverter’s USB port. Once powered on, you can connect to the app immediately. You’ll find the QR code to download the app in the user manual.

Technical Specifications

AC Rated Input

• Voltage: 400 V
• Frequency: 50 / 60 Hz
• Grid type: TN, TT, IT

AC Rated Output

• Voltage: 400 V
• Current: 6–32 A (single-phase or three-phase)
• Power: 1.4–22 kW

Interface and Communication

• Communication interface: Wi-Fi / Ethernet / 4G (optional)
• Protocol: OCPP 1.6j, Modbus TCP, Modbus RTU, Cloud API
• Communication with vehicle: IEC 61851-1, ISO 15118 (optional)
• Authentication: Plug and charger / RFID (ISO 14443-A) / App
• Remote Control: App and Web

General Specifications

• Housing material: PC
• Installation: Wall-mounted / Base-mounted (optional)
• Charging connector: Type 2 plug / Type 2 socket (IEC 62196)
• Cable length: 6.5 m
• Operating temperature range: -30°C to +50°C
• Storage temperature range: -40°C to +60°C
• Protection rating: IP65 / IK10 (housing) / IK08 (screen)
• Cooling: Natural cooling
• Weight: 6.5 kg
• Dimensions: 390 x 206 x 139 mm

Package Contents

1x Solax EV Charger X3-HAC-22P G2 22 kW Smart Wallbox (3-phase)
1x Base plate/mounting plate
1x current transformer with 1m cable
2x RFID cards
Includes theft protection and connection/mounting accessories
