Victron Blue Smart IP65 Charger 12/5(1) 230V CEE 7/16 Battery Charger 12V 5A

The Victron Blue Smart IP65 Charger 12/5 (MPN: BPC120533034R) is a smart battery charger for rechargeable 12 V batteries. With a 5 A charging current, a 2 A low-current mode, and optimized charging profiles, it is suitable for lead-acid batteries such as AGM, gel, and wet-cell batteries, as well as LiFePO4 batteries. The charging process, settings, and charging history can be monitored via Bluetooth and the VictronConnect app. The IP65 housing, fanless cooling, and interchangeable battery connectors allow for flexible use as a portable or permanently mounted charger.

Highlights of the charger

• For rechargeable 12-V lead-acid and LiFePO4 batteries
• 5 A maximum charging current and 2 A low-current mode
• Four-stage charging algorithm for LiFePO4 batteries
• Seven-stage adaptive charging algorithm for lead-acid batteries
• Bluetooth monitoring and configuration via the VictronConnect app
• Trickle charge, storage, and power supply modes
• Fanless convection cooling for quiet operation
• IP65 enclosure for protection against dust and water jets

Optimized charging profiles for lead-acid and LiFePO4

The adaptive charging algorithm adjusts the duration of the constant-voltage phase based on the previous charging history. This ensures the battery is fully charged without exposing it to elevated charging voltage for an unnecessarily long time. For AGM, gel, and wet batteries, the Normal and High profiles are available. The separate Lithium mode uses a four-stage charging algorithm for LiFePO4 batteries. At 5 A, the charger is suitable for lead-acid batteries starting at 17 Ah and LiFePO4 batteries starting at 10 Ah. For smaller batteries, the low-current mode reduces the charging current to 2 A. This allows lead-acid batteries starting at 7 Ah and LiFePO4 batteries starting at 4 Ah to be charged. In maximum charging mode, the charger is designed for battery capacities up to 50 Ah.

Settings and Charging Status via Bluetooth

The VictronConnect app can be used to configure the charging mode, charging current limit, and advanced parameters. Among other things, the app displays battery voltage, charging current, and the current operating status. Charging histories make it easy to monitor past charging cycles, while firmware updates can also be performed wirelessly. The charger also offers protection against reverse polarity, short circuits, and overheating.

Trickle Charging, Recovery, and Power Supply

Once fully charged, the device switches to the trickle charge or storage mode. This allows a connected battery to be kept charged over an extended period. An optional recovery function is available for deeply discharged lead-acid batteries. In the configurable power supply mode, the device can also supply loads with a constant DC voltage, either with or without a connected battery. Lithium batteries must not be charged when the battery temperature is below 0 °C. The charger must be operated in a well-ventilated area on a non-flammable surface and must not be installed directly above the battery or together with it in an enclosed compartment.

Technical Specifications

• Nominal battery voltage: 12 V
• Maximum charging current: 5 A
• Low-current mode: 2 A
• Maximum battery capacity in 5-A mode: 50 Ah
• Nominal input voltage: 220–240 V AC
• Input voltage range: 180–265 V AC
• Mains frequency: 45–65 Hz
• Power plug: CEE 7/16
• Maximum efficiency: 94%
• Standby power: 0.5 W
• Cooling: natural convection, fanless
• Protection rating: IP65
• Operating temperature: −40 to +50 °C
• Full rated power: up to +30 °C
• Maximum humidity: 95%, non-condensing
• Battery cable: 16 AWG
• Weight: 0.9 kg
• Dimensions: 45 × 81 × 182 mm

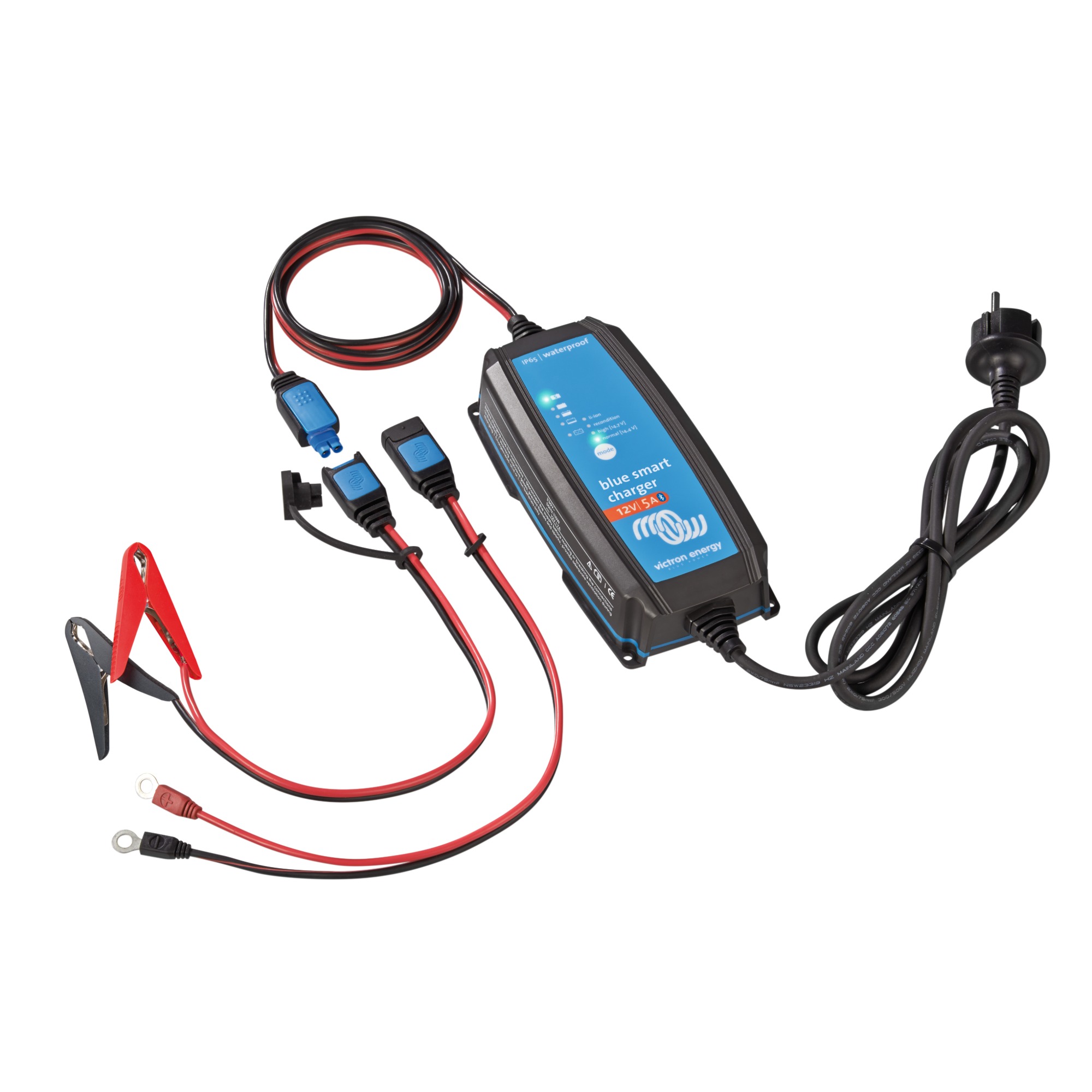

Package Contents:

1x Victron Blue Smart IP65 Charger 12/5(1) with CEE-7/16 power plug (1.5 m)
1x connection cable with battery terminals
1x connection cable with M8 ring terminals
