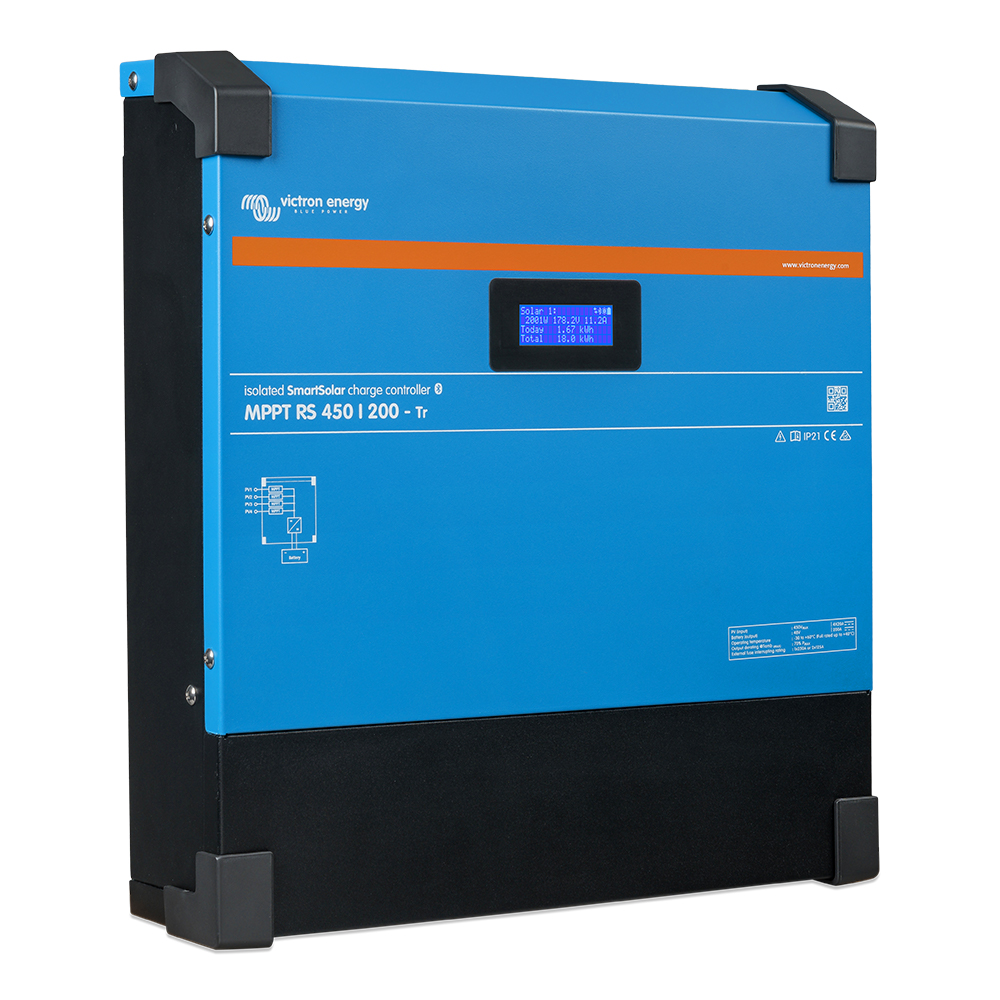

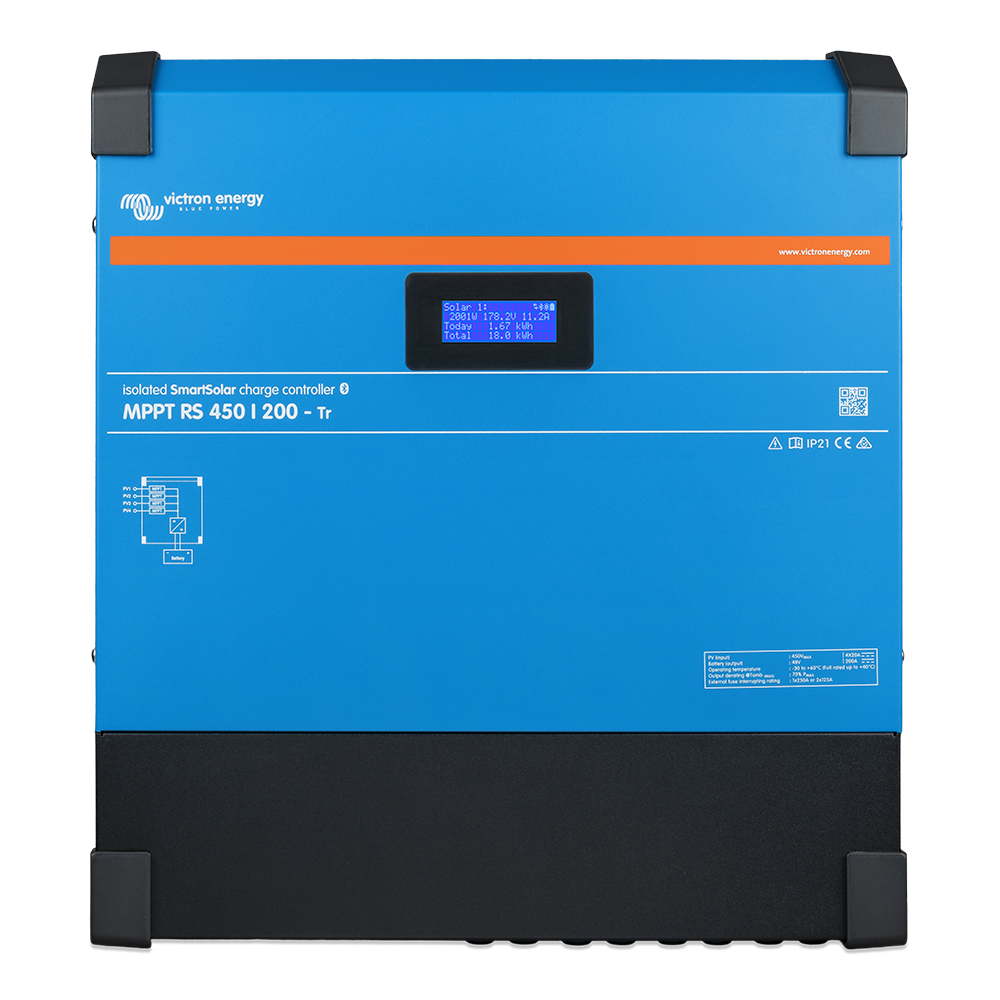

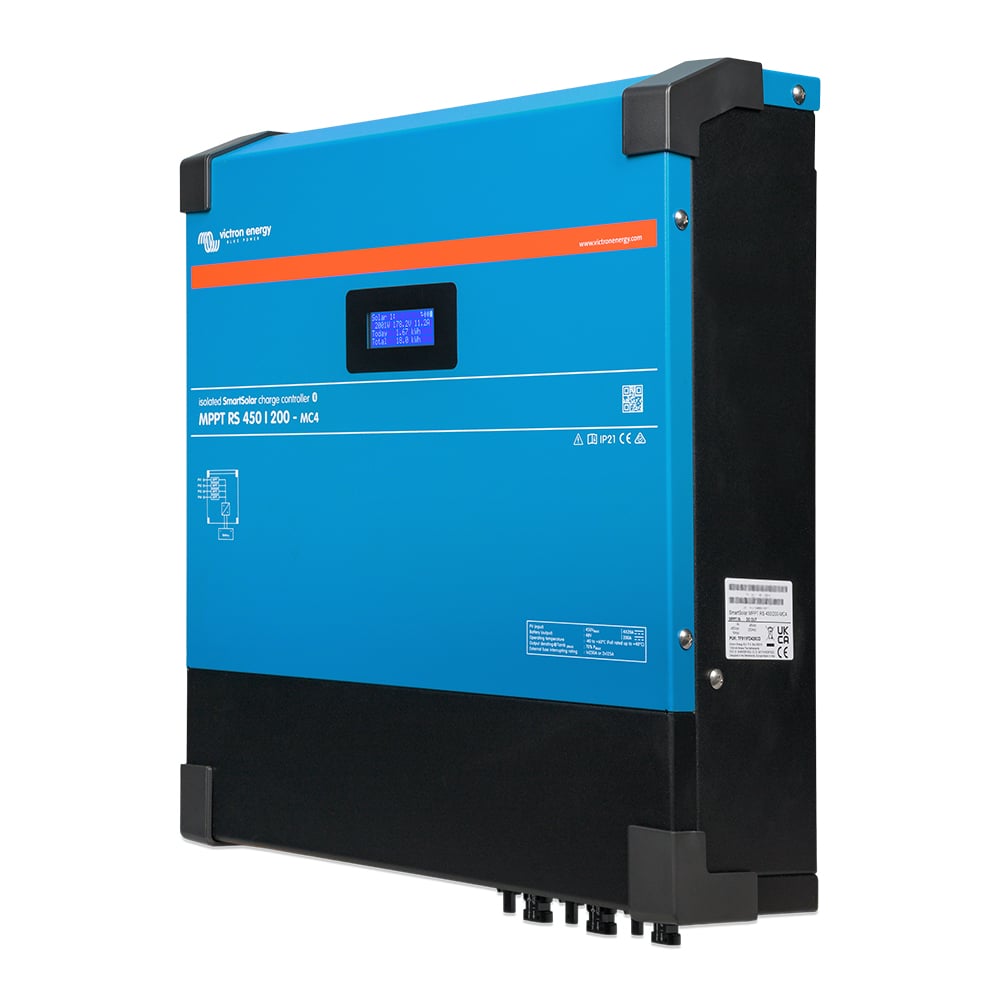

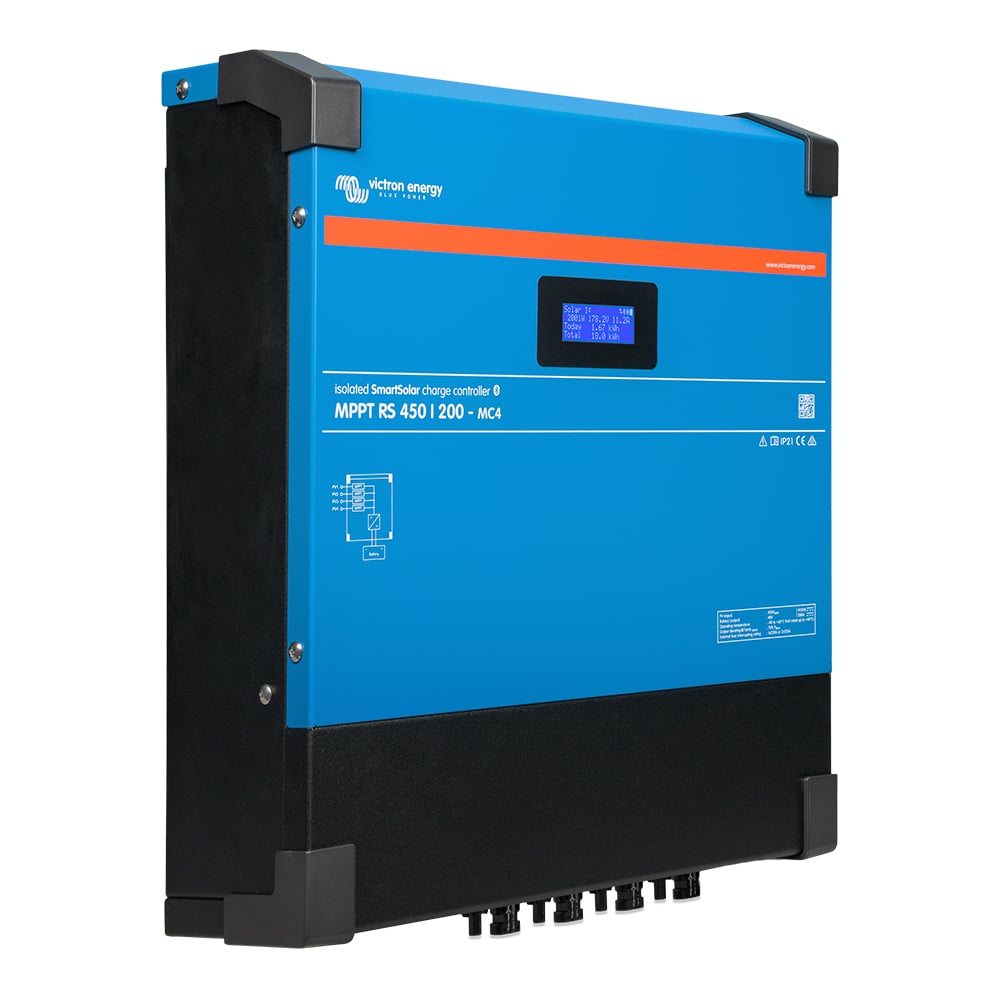

The mppt rs SmartSolar by Victron Energy (mpn: scc145120410) is a 48v solar charge controller with a PV input voltage of up to 450 vdc and an output current of 200a. It is used in grid-tied and off-grid Solaranapplications where maximum battery charging power is required.

Features

  • With ultra-fast maximum power point tracking (mppt)
  • Multiple independent mppt tracking inputs

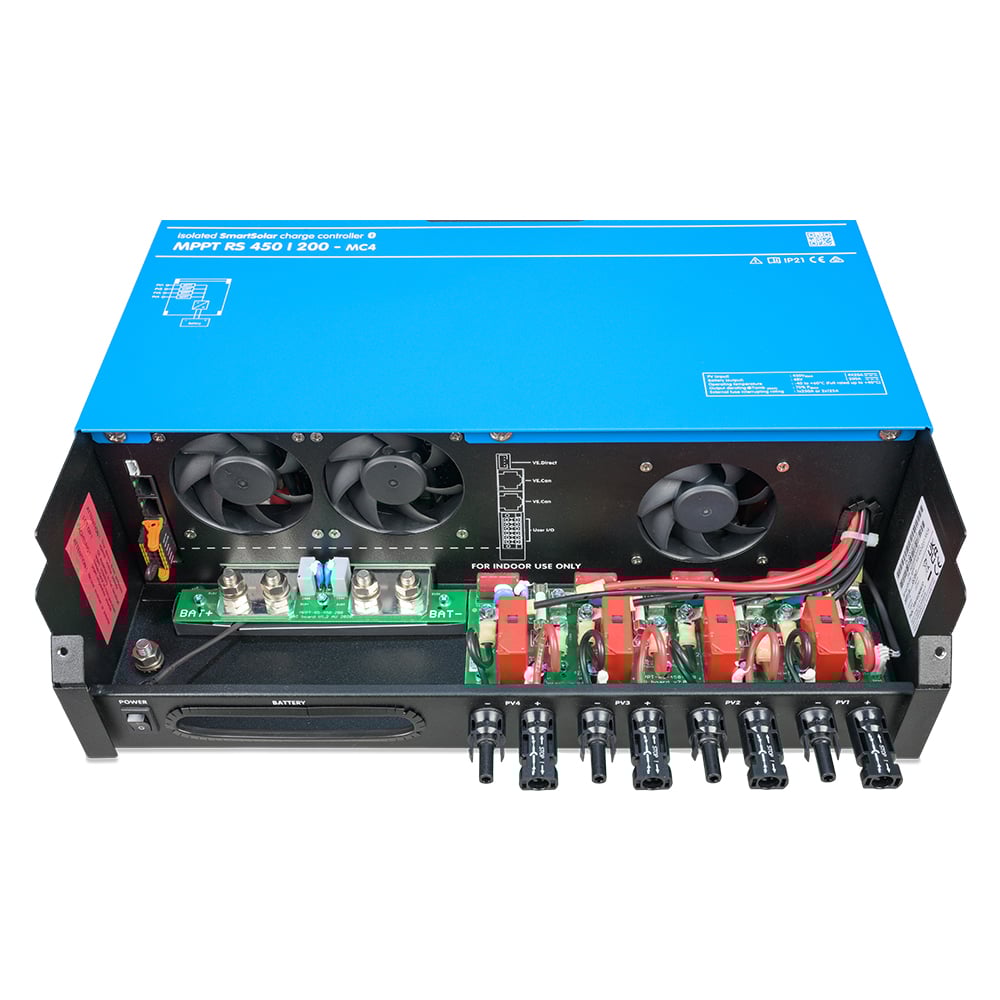

  • Isolated PV connections for added safety
  • Wide mppt voltage range
  • Lightweight, efficient and quiet
  • Integrated display and Bluetooth communication
  • PV insulation resistance monitoring for safety at higher voltages

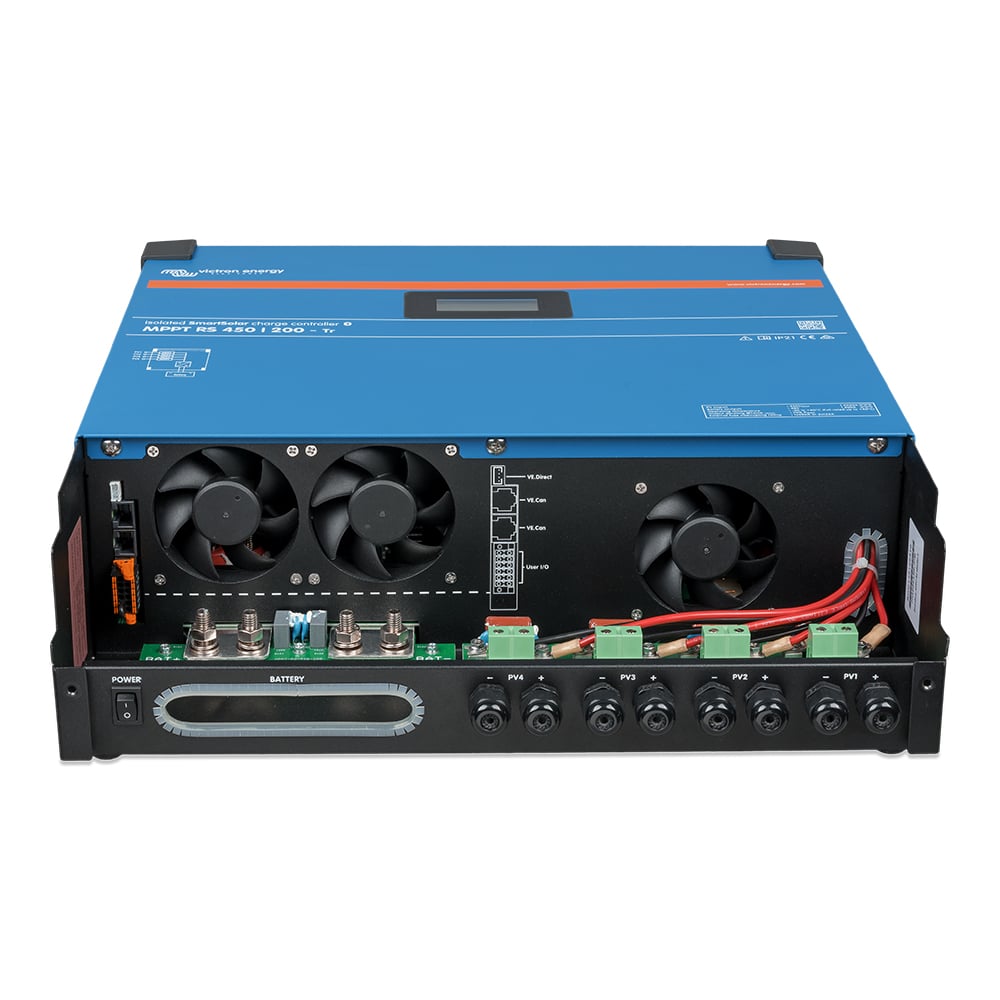

  • VE.Can and VE.Direct connection
  • I/O connections

Configure and monitor with VictronConnect app or in VRM portal

The integrated BluetoothSmart connection allows quick monitoring or configuration of settings via app. The integrated 30-day history shows the individual performance of each mppt tracker. The app enables the display of e.g. battery voltage and current, PV voltage and current, history data and trends. The VictronConnect app is available for Android, iOS, Windows and macOS x.
When the solar controller is connected to a Gx device and the internet, the Victron Remote Management Portal (vrm) provides access to the full power of your SmartSolar rs charge controllers.

Additional units connected in series

The SmartSolar rs charge controller is equipped with VE.Can bus connections. This allows communication with additional SmartSolar rs & VE.Can mppt units. The additional units are simply "daisy chained" together with an RJ45 cable. When linked together, all individual charge controllers synchronize their charge levels. You can also send your data to a Gx device (such as the CerboGx) via the same cable for monitoring.

Technical data

  • Battery voltage: 48v
  • Rated charging current: 200A
  • Max. Charging power: 11.5 kW at 57.6V
  • Charging algorithm: multi-stage adaptive (customizable)
  • Max. DC PV voltage: 450V
  • mppt operating voltage range: 80-450V
  • Number of trackers: 4
  • Max. PV operating input current: 18a per tracker
  • Protection class: IP21
  • Dimensions: 487 x 434 x 146 mm
  • Weight: 13,7 kg

Scope of delivery:

1x Victron SmartSolar mppt rs 450/200-rt 48v charge controller

Victron_BlueSolar_SmartSolar_Overview.pdf Download
Victron_SmartSolar-MPPT-RS-450-200_Dimensions.pdf Download
Victron_SmartSolar-MPPT-RS-450_CE.pdf Download
Victron_SmartSolar-MPPT-RS-450_Manual.pdf Download
Victron_VictronConnect_Manual.pdf Download
Victron_SmartSolar-MPPT-RS-450_Handbuch.pdf Download
Victron_SmartSolar-MPPT-RS-450_Datasheet.pdf Download
Victron_SmartSolar-MPPT-RS-450_Datenblatt.pdf Download
Victron_VictronConnect_Handbuch.pdf Download
Manufacturer: Victron Energy
Protection type: IP21
Solar module current (max.): 18A
Solar module voltage (max.): 450 V
System voltage: 48V
Weight: 13,7 kg
ean: 8719076051886
max. charging current: 200A
mpn: SCC145120410
