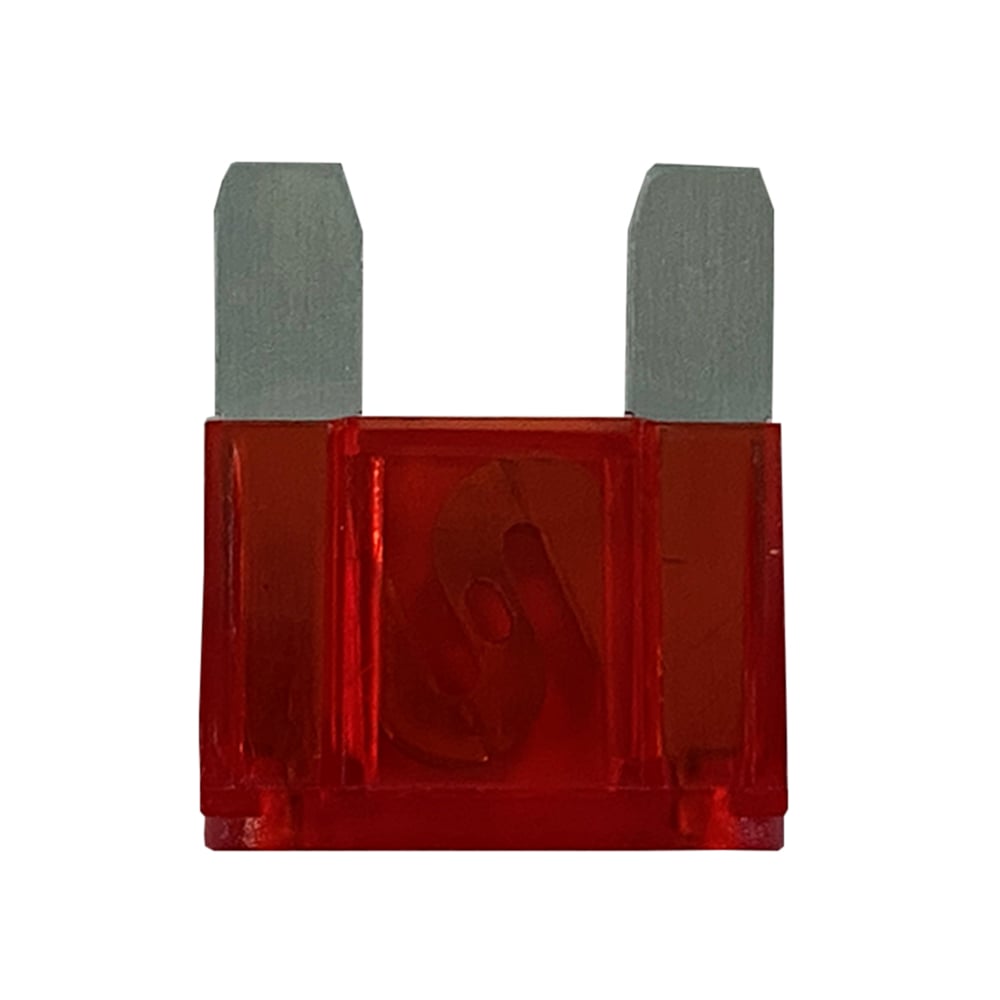

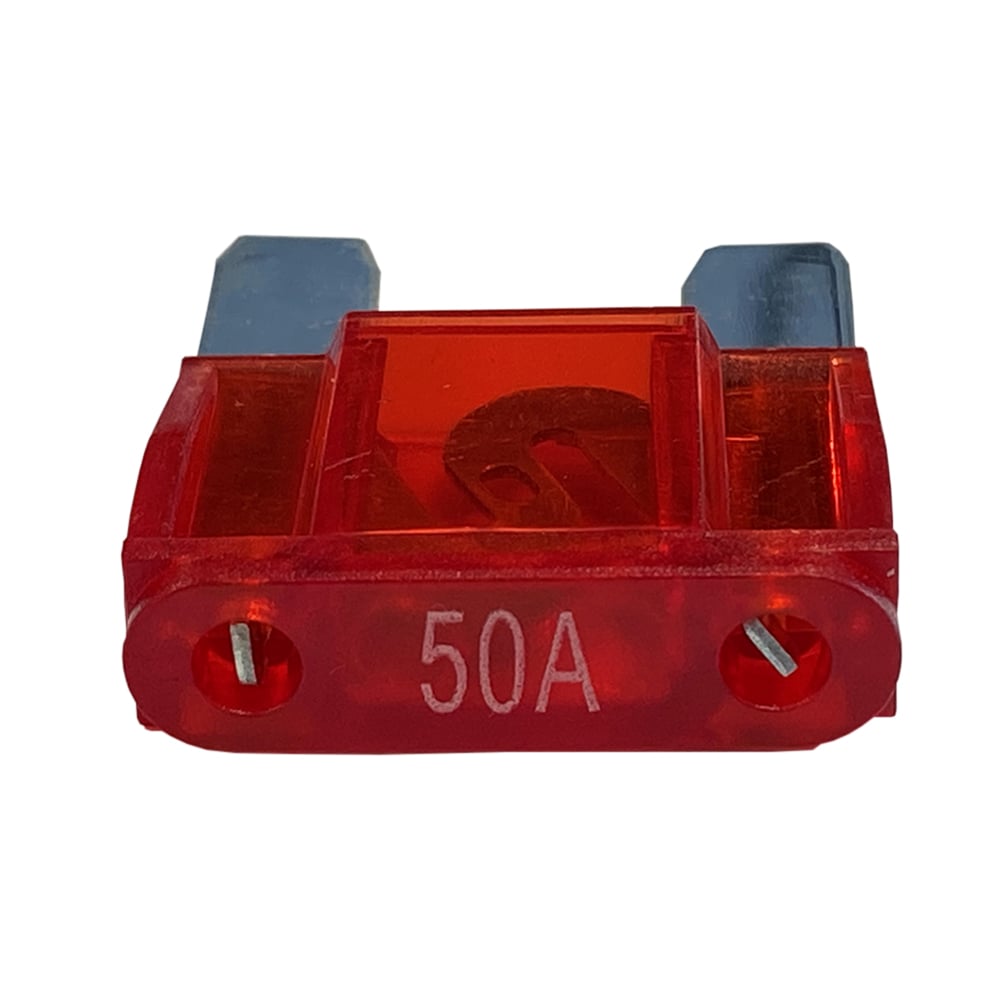

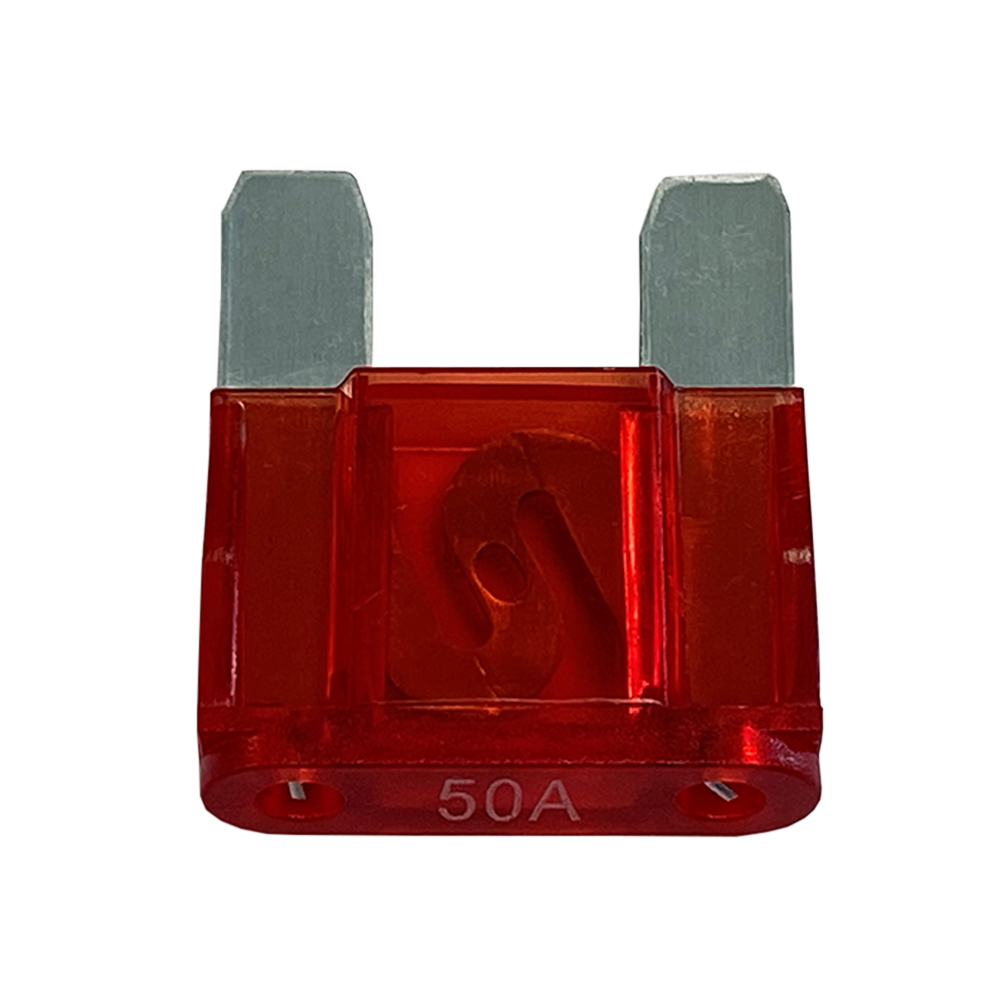

The Maxi fuses are, in contrast to the standard automotive flat fuses, intended for currents from 30a. Visually they correspond to the car flat fuses (ato), only they are larger.
The fuse is suitable for systems with 12v or 24v. In general, fuse elements should always be located in close proximity to the battery in order to provide the best possible protection for the cable route to the consumer.
Features:
Maxi flat plug-in fuse
Voltage range: max. 32v dc (designed for 12v and 24v battery systems)
Fuse rating: 50a
Fuse type: slow blow
Housing material: plastic
Contact material: copper zinc alloy
Scope of delivery:
1x Maxi fuse 50a (red)
Manufacturer:Offgridtec
Product Type:MAXI fuse
8-01-007525
