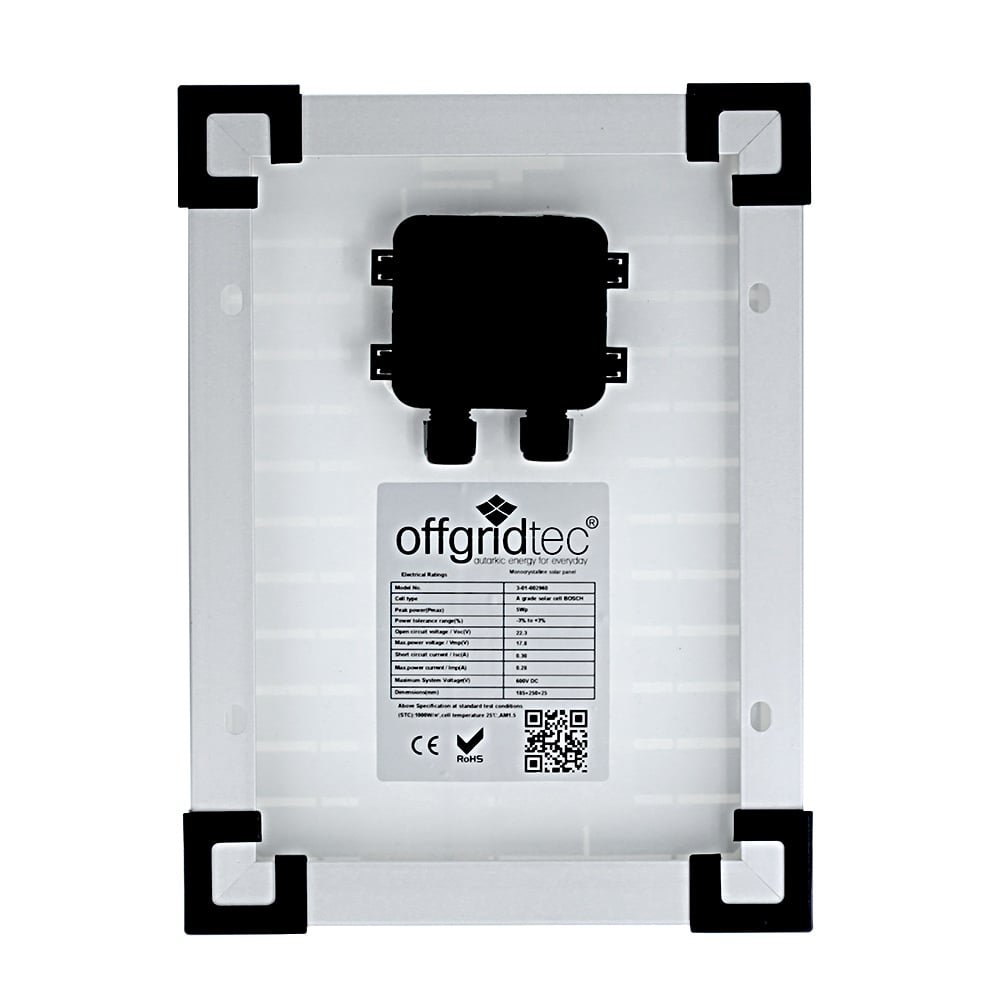

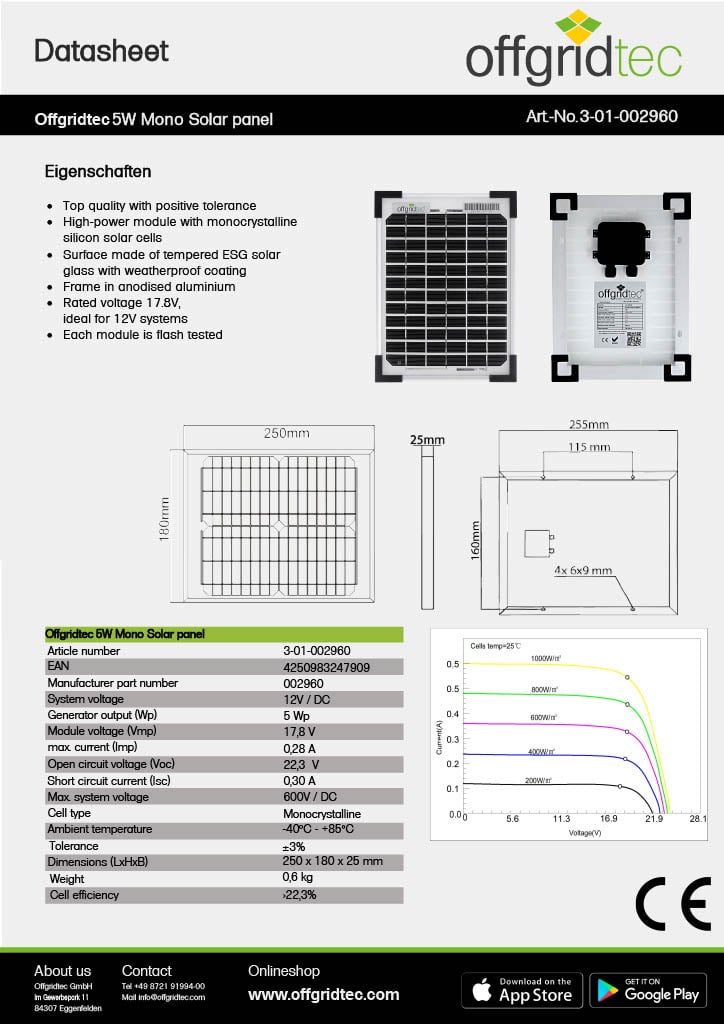

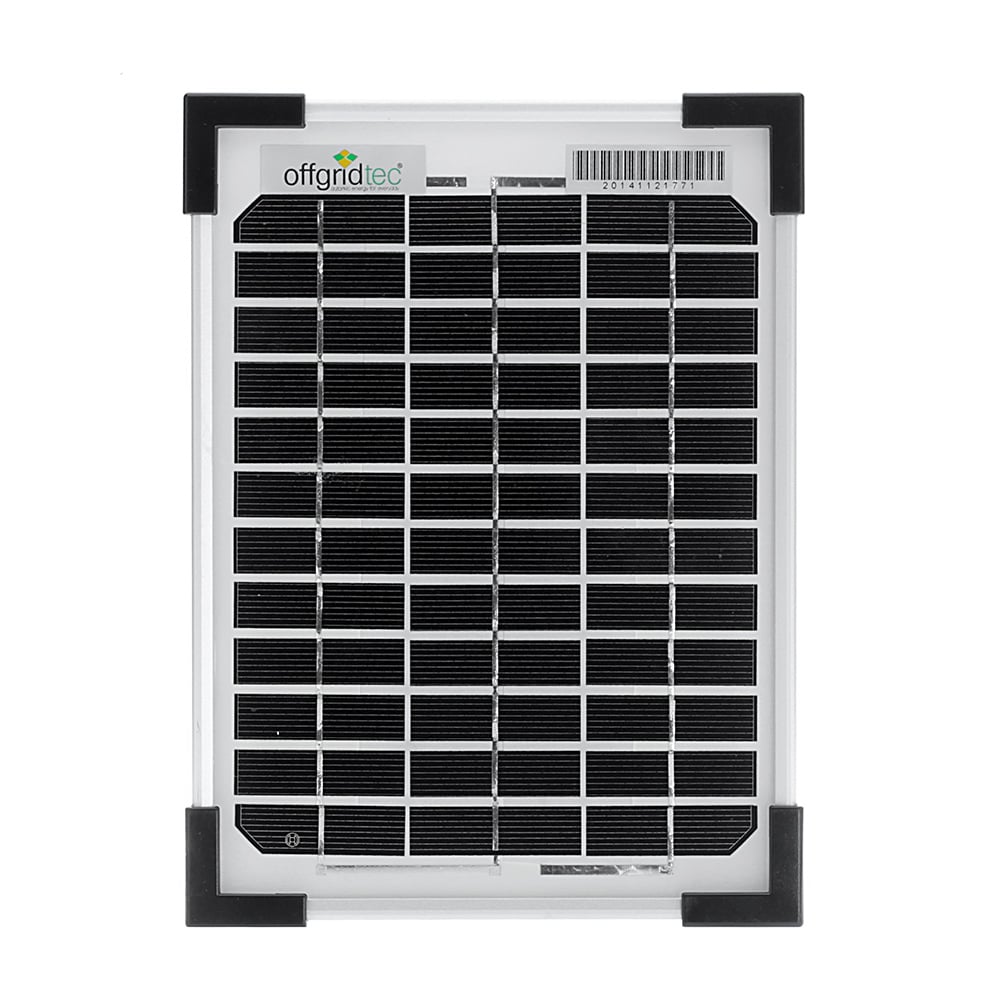

Offgridtec® 5w mono 12v solar panel

The Offgridtec olp 10w (mpn 3-01-013100) is a powerful 12v solar module with an innovative overlapping design, wafer assembly and dimensions that almost reach the range of high-performance solar modules. The shingle arrangement of the wafers ensures optimum current flow through minimized power losses and a significantly higher module efficiency through better space utilization. The perc technology used improves light absorption and increases the power yield. Technical features of the olp 10w Power (Pmax): 10wp Voltage (Vmp): 18.7V max. current (Imp): 0.53A Open circuit voltage (Voc): 22.44V Short-circuit current (Isc): 0.58A max. system voltage: 600V Ambient temperature: -40°C - +85°C Dimensions: 244 x 300 x 25 mm Weight: 1,05kg Note: No connection cables included! Unique features of the olp series from Offgridtec Unique module design with overlapping wafer arrangement (overlapping design) ensures very high module efficiency thanks to better surface utilization and reduced power losses due to line resistances Modern, homogeneous appearance without visible conductor tracks Innovative perc technology ensures improved absorption at longer wavelengths, e.g. at flat irradiation angles (early morning and evening) or in cloudy conditions Less loss with partial shading Thanks to overlapping design finishing, the module has a space requirement of just 244 x 300 x 25 mm with a nominal output of 10 w. The cell efficiency is over 23% Innovative perc technology The perc technology (Passivated Emitter Rear Cell) in the Offgridtec olp solar modules ensures a higher efficiency of the solar cells with its key technology. A dielectric layer is created on the back of the cell between the conventional aluminium metallization and the silicon wafer layer, which is provided with tiny holes by a laser. This dielectric layer reflects light that reaches the back of the solar cell without generating charge carriers. The reflection gives the photons a "second chance" to generate electricity. In addition to the higher efficiency at different wavelengths and the increased probability of electrons contributing to the output, perc technology contributes to lower system costs and an increase in the area energy yield. Scope of delivery: 1x 3-01-013100 Offgridtec® olp 10w 12v perc overlapping solar panel shingle technology

The solar module 10w mono from Offgridtec (mpn 3-01-001265) works with monocrystalline solar cells with a high efficiency of >22% and is ideal for 12v systems thanks to its 20v operating voltage. In Offgridtec mono solar modules only cells of the highest quality grade are installed and guarantee a constant high quality and performance with maximum service life thanks to state-of-the-art manufacturing. Features of Offgridtec 10w 12v mono solar panel Power (Pmax): 10w proven quality directly from Offgridtec high operating voltage of 20v, perfect for 12v systems manufactured according to the latest standards monocrystalline A-grade solar cells extremely resistant ESG glass makes the module usable even in the most adverse environmental conditions 1 blocking diode - prevents current backflow when directly charging 12v batteries ideal for 12v systems on land or in mobile solar systems Proven, immediately operational solar module The mono 10w 20v is one of over 40 proven solar panels from the Offgridtec portfolio and participates in Offgridtecs experience in manufacturing high quality 12v and 24v solar cells. The module can be used in very adverse operating conditions thanks to the extremely resistant solar glass. It can withstand heavy hail and storms or extreme cold and heat without any problems and thanks to the monocrystalline A-grade cells you can count on noteworthy yields even on cloudy days. The most important technical data at a glance Working voltage (Vmp): 20 V Open circuit voltage (Voc): 24 V max. current (Imp): 0.5 A Short circuit current (Isc): 0.54 A max. system voltage: 600 V permissible ambient temperature: -40°C - +85°C Dimensions: 230 x 370 x 25 mm Weight: 1,0 kg Part number: 3-01-001265 Universally applicable Offgridtecs 10w 20v Mono is universally applicable for example in 12 volt Solaranlagen on garden sheds, allotments or for the power supply of lighting applications, self-sufficient systems of signal and surveillance technology and many more. But also in mobile systems such as in mobile home solar systems this panel makes a good figure. Due to the integrated blocking diode, no current backflow can occur when directly charging a 12v battery. This prevents the battery from discharging through the solar panel at night or in dim light. The module is delivered with connection socket. Cables are not included. Scope of delivery: Offgridtec 3-01-001265 10w mono 12v solar module

The solar module 50w mono from Offgridtec (mpn 3-01-001260) uses monocrystalline solar cells with a high efficiency of >22% and is ideal for 12v systems thanks to its 20v operating voltage. In Offgridtec mono solar modules only cells of the highest quality grade are installed and guarantee a constant high quality and performance with maximum service life thanks to state-of-the-art manufacturing. Features of Offgridtec 50w 12v mono solar panel Power (Pmax): 50w proven quality directly from Offgridtec high operating voltage of 20v, perfect for 12v systems manufactured according to the latest standards monocrystalline A-grade solar cells extremely resistant ESG glass makes the module usable even in the most adverse environmental conditions ideal for 12v systems on land or in mobile solar systems 1 bypass diode - minimized power loss in shaded conditions Proven, immediately operational solar module The mono 50w 20v is one of over 40 proven solar panels from the Offgridtec portfolio and participates in Offgridtecs experience in manufacturing high quality 12v and 24v solar cells. The module can be used in very adverse operating conditions thanks to the extremely resistant solar glass. It can withstand heavy hail and storms or extreme cold and heat without any problems and thanks to the monocrystalline A-grade cells you can count on noteworthy yields even on cloudy days. The most important technical data at a glance Working voltage (Vmp): 20 V Open circuit voltage (Voc): 24 V max. current (Imp): 2.5 A Short circuit current (Isc): 2.7 A max. system voltage: 1000 V permissible ambient temperature: -40°C - +85°C Dimensions: 520 x 550 x 25 mm Weight: 3,7 kg Part number: 3-01-001260 Universally applicable Offgridtecs 50w 20v Mono is universally applicable for example in 12 volt Solaranlagen on garden sheds, allotments or for the power supply of lighting applications, self-sufficient systems of signal and surveillance technology and many more. But also in mobile systems such as in mobile home solar systems this panel makes a good figure. Due to the integrated bypass diode, the module can continue to produce power even in shaded or dim light conditions.The connection cables are 80 cm long and equipped with MC4 connectors. Scope of delivery: Offgridtec 3-01-001260 50w mono 20v solar module

The solar module 30w mono from Offgridtec (mpn 3-01-001530) works with monocrystalline solar cells with a high efficiency of >18% and is ideal for 12v systems thanks to its 20v operating voltage. In Offgridtec mono solar modules only cells of the highest quality grade are used and guarantee thanks to modern manufacturing a constant high quality and performance with maximum lifetime. Features of Offgridtec 30w 12v mono solar panel proven quality directly from Offgridtec manufactured according to the latest standards monocrystalline solar cells extremely resistant ESG glass makes the module usable even in the most adverse environmental conditions ideal for 12v systems on land or in mobile solar systems Frame in anodized aluminum The mono 30w 12v is one of over 40 proven solar panels from the Offgridtec portfolio and participates in Offgridtecs experience in manufacturing high quality 12v and 24v solar cells. The module can be used in very adverse operating conditions thanks to the extremely resistant solar glass. It can withstand heavy hail and storms or extreme cold and heat without any problems and thanks to the integrated bypass diodes, the module can continue to produce power even in shaded or low light conditions. The most important technical data at a glance Power (Pmax): 30w Working voltage (Vmp): 20 V Open circuit voltage (Voc): 24 V max. current (Imp): 1.5 A Short circuit current (Isc): 1.62 A max. system voltage: 600 V permissible ambient temperature: -40°C - +85°C Dimensions: 560 x 360 x 25 mm Weight: 2,5 kg Universally applicable Offgridtecs 30w 12v Mono is universally applicable for example in 12 volt Solaranlagen on garden houses, allotments or for the power supply of lighting applications, self-sufficient systems of signal and surveillance technology and many more. But also in mobile systems such as in mobile home solar systems this panel makes a good figure. Scope of delivery: Offgridtec 3-01-001530 30w mono 12v solar panel
