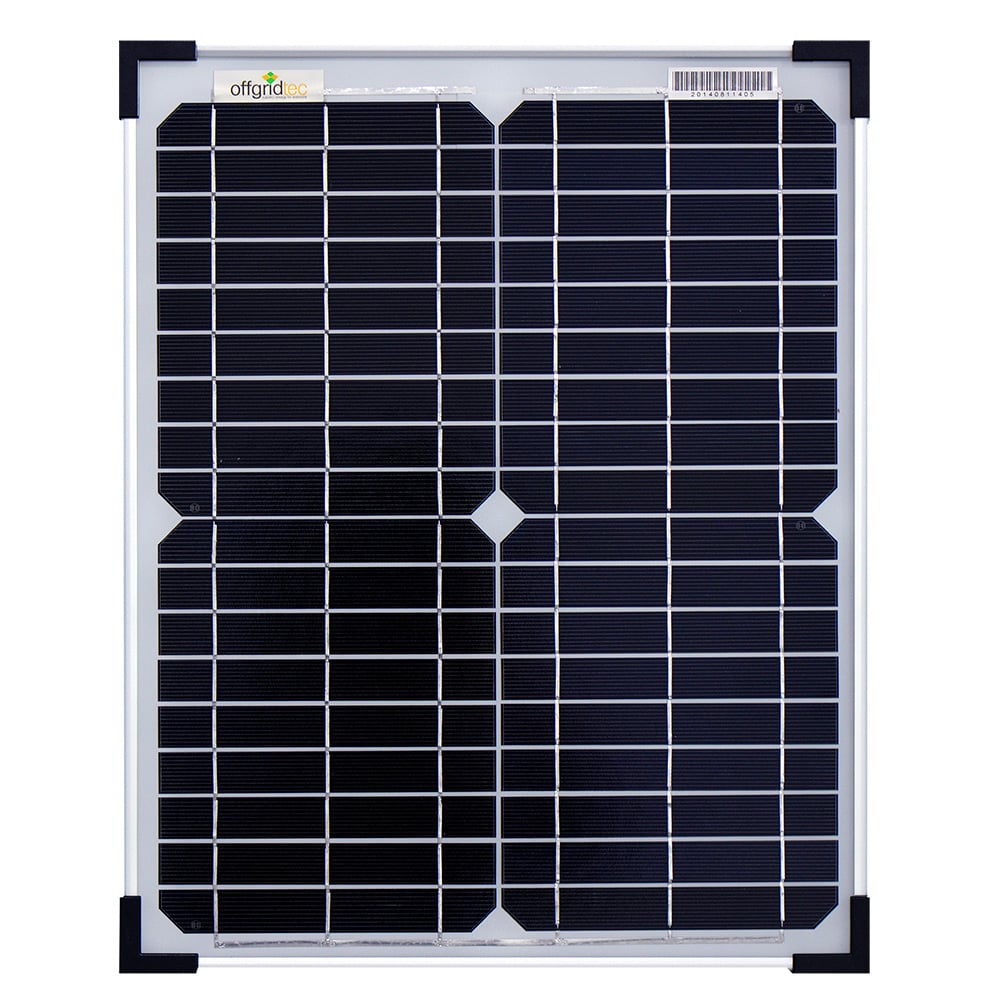

Offgridtec® 20W Mono Solar Panel 12V – Monocrystalline Solar Module

The 20W Mono solar panel from Offgridtec (MPN: 001560) is a compact monocrystalline solar module designed for reliable power generation in 12V solar systems. With a rated power output of 20 W, a robust aluminum frame, tempered ESG solar glass, and an integrated bypass diode, it is suitable for applications requiring a compact and durable power source. Typical applications include RVs, campers, boats, yachts, and small off-grid solar systems.

Compact solar power supply for 12V off-grid systems

• 20 W rated power for small 12V solar systems
• Monocrystalline solar cells with over 22.3% cell efficiency
• Integrated bypass diode to reduce power losses during partial shading
• Robust frame made of anodized aluminum
• Tempered ESG solar glass for high durability
• Junction box with two cable entries
• Suitable for RVs, boats, garden sheds, and other off-grid applications
• Maximum system voltage of 600 V DC
• 10-year warranty—click here for warranty terms and conditions

Monocrystalline cell technology for reliable energy generation

The solar panel uses monocrystalline solar cells, which are characterized by high efficiency in a small area. This makes the module particularly suitable for applications with limited space, such as on vehicle roofs or smaller mounting systems. With a generator output of 20 W and a module voltage of 20 V, the module can be used in conjunction with a suitable solar charge controller to charge 12V battery systems. Typical applications include small off-grid systems, lighting systems, surveillance equipment, or powering recreational vehicles.

Less Power Loss During Partial Shading

The module features an integrated bypass diode. This reduces power loss when individual cell areas are partially shaded—for example, by branches, antennas, or other objects. As a result, the solar panel can deliver the highest possible energy yield even under changing light conditions.

Robust Construction for Long-Term Outdoor Use

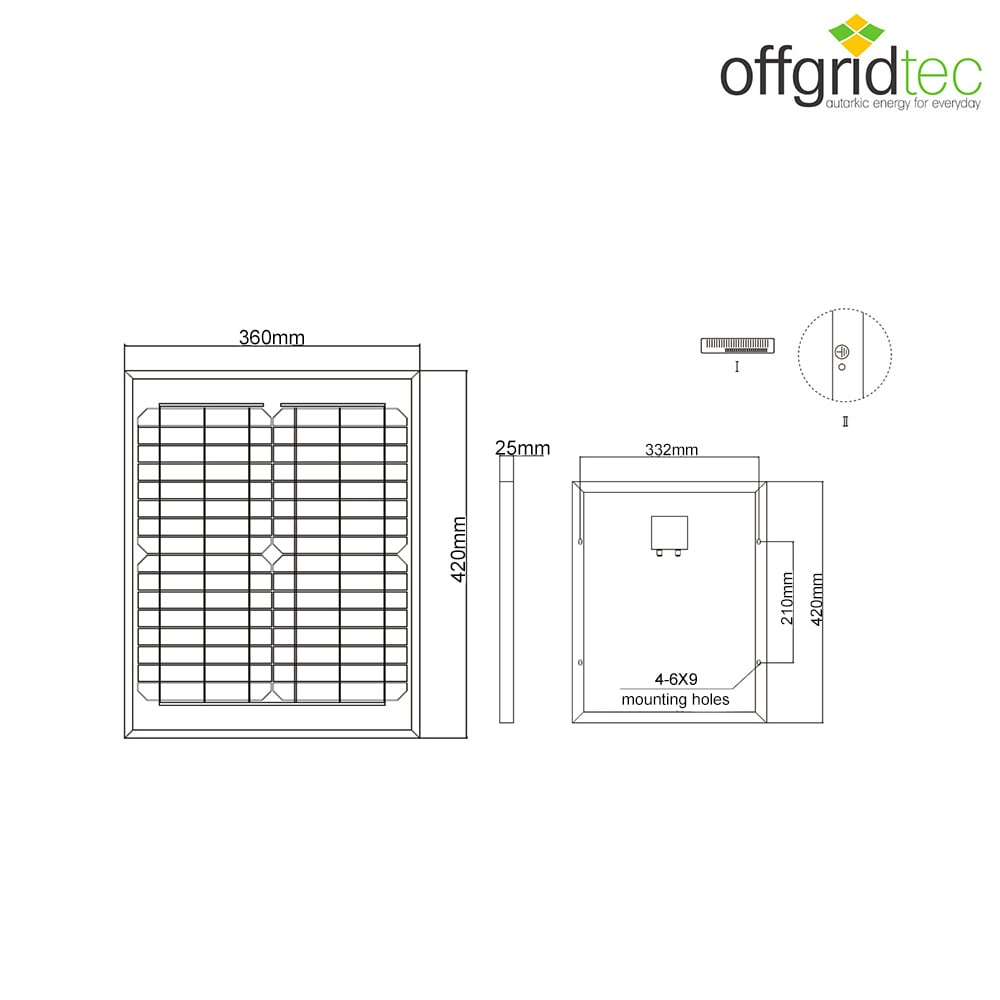

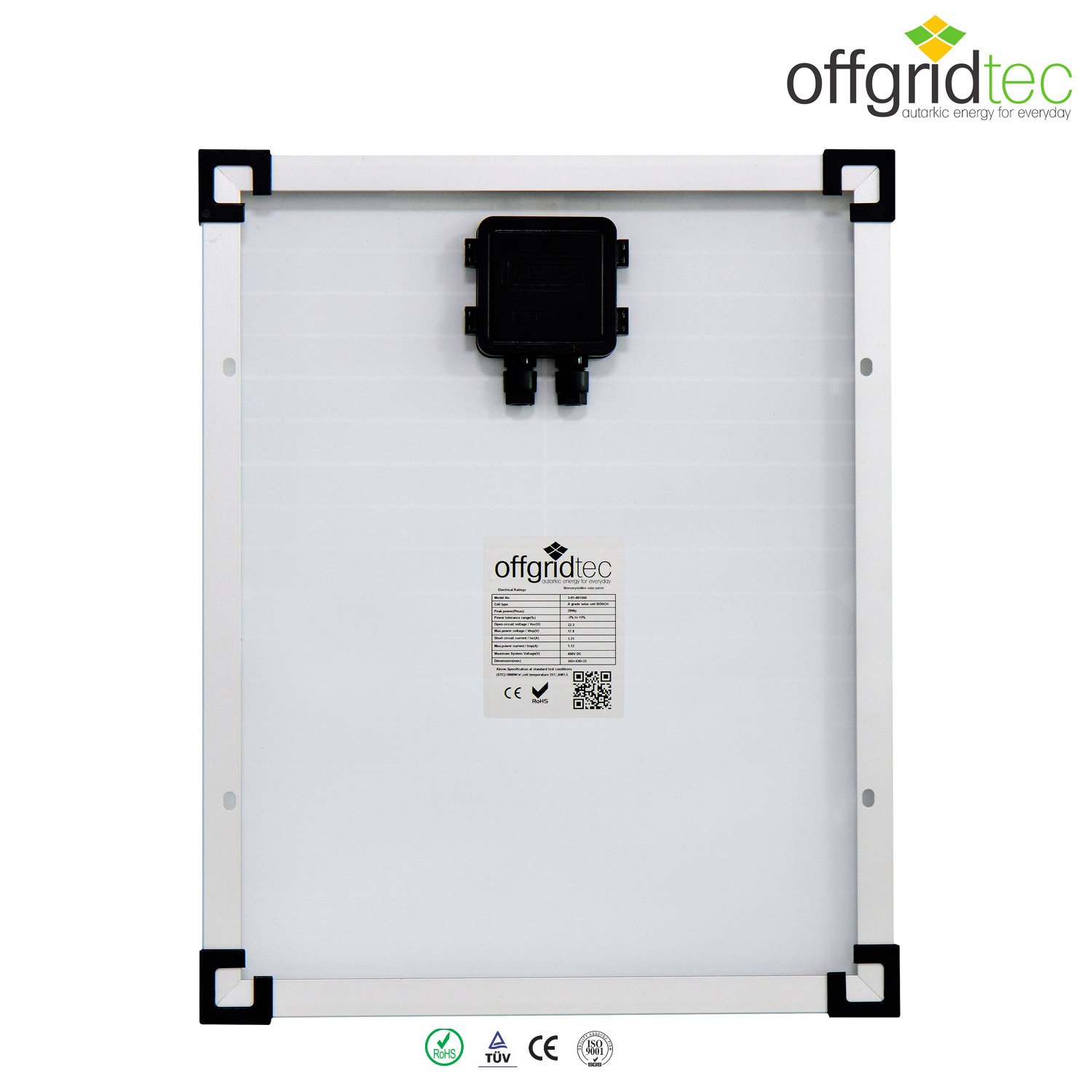

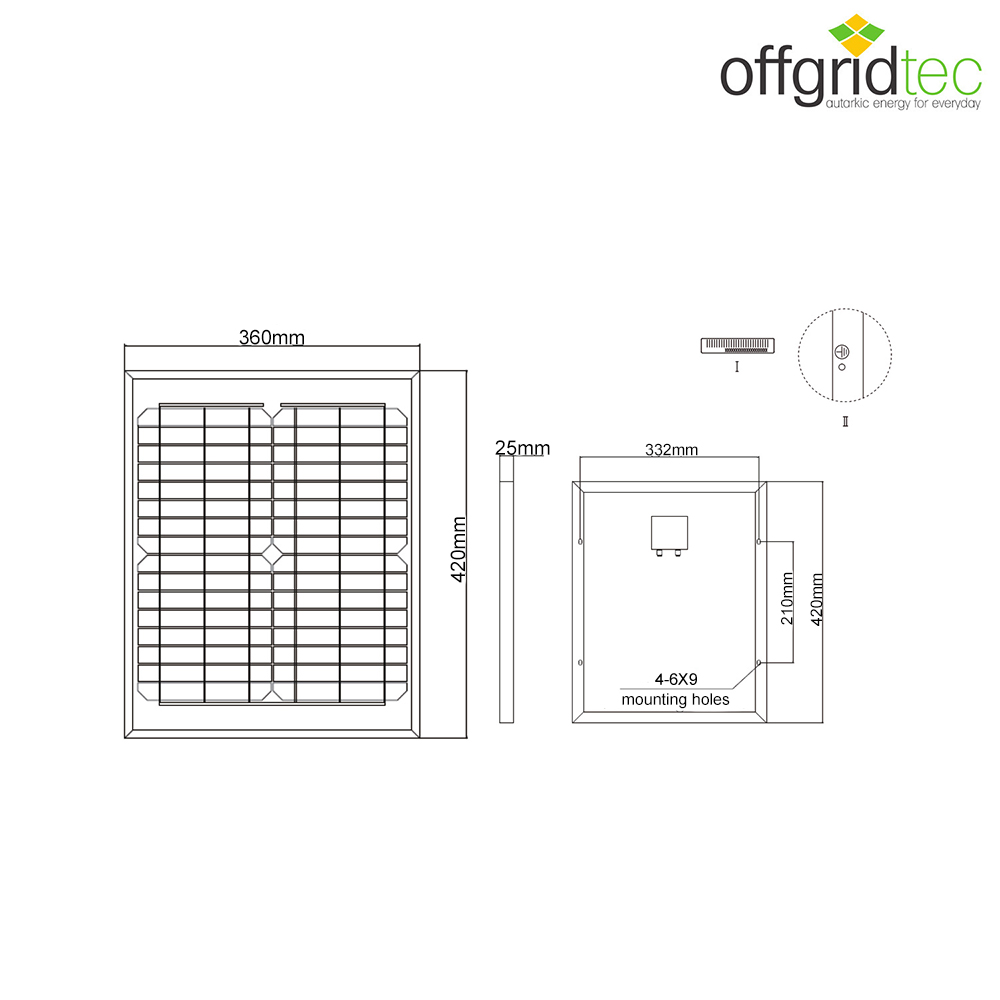

The frame is made of anodized aluminum, offering a sturdy construction while remaining lightweight. The front is protected by specially tempered ESG solar glass, which is designed for long-term outdoor use. With its compact dimensions of 420 x 360 x 25 mm, the module can be integrated even into smaller mounting areas. Its light weight of just 1.8 kg makes transport and installation easy. The back features a junction box with two cable entries and four mounting holes for installation.

Typical Applications

• RV and campers
• Boats and yachts
• Garden sheds
• Small off-grid systems
• Self-sufficient lighting or surveillance systems
• Mobile power supply for small appliances

Technical Specifications

• System voltage: 12 V DC
• Generator power: 20 Wp
• Module voltage (Vmp): 20 V
• Maximum current (Imp): 1 A
• Open-circuit voltage (Voc): 24 V
• Short-circuit current (Isc): 1.08 A
• Maximum system voltage: 600 V DC
• Cell efficiency: >22.3%
• Power tolerance: ±3%
• Ambient temperature: -40 °C to +85 °C
• Frame material: Anodized aluminum
• Front glass: Tempered ESG solar glass
• Junction box: 2 cable entries
• Bypass diode: 1 integrated
• Weight: 1.8 kg
• Dimensions: 420 × 360 × 25 mm

Package Contents

1x Offgridtec® 20W Mono Solar Panel 12V – Monocrystalline solar module
