Zendure AIO Pro 900Wp balcony power plant with storage

The All-In-One Pro complete system from Offgridtec (MPN: 019820) is a 900W balcony power plant that offers you an ideal solution for producing part of your household electricity yourself. The central element is the Zendure AIO Pro storage system, which combines a Hyper 2000 hybrid inverter with a 1920Wh AB2000X battery. The set is completed by two powerful 450W solar modules from Luxen Solar and matching connection and connection cables. Thanks to the plug-and-play principle and compact design, setup is very easy, without any annoying cable clutter.

• Plug and play – plug in and save money
• Control your own consumption
• Make your lifestyle more environmentally friendly
• Quickly amortized investment

The complete balcony power plant set includes:

• 1x Zendure AIO Pro 1200 all-in-one storage system

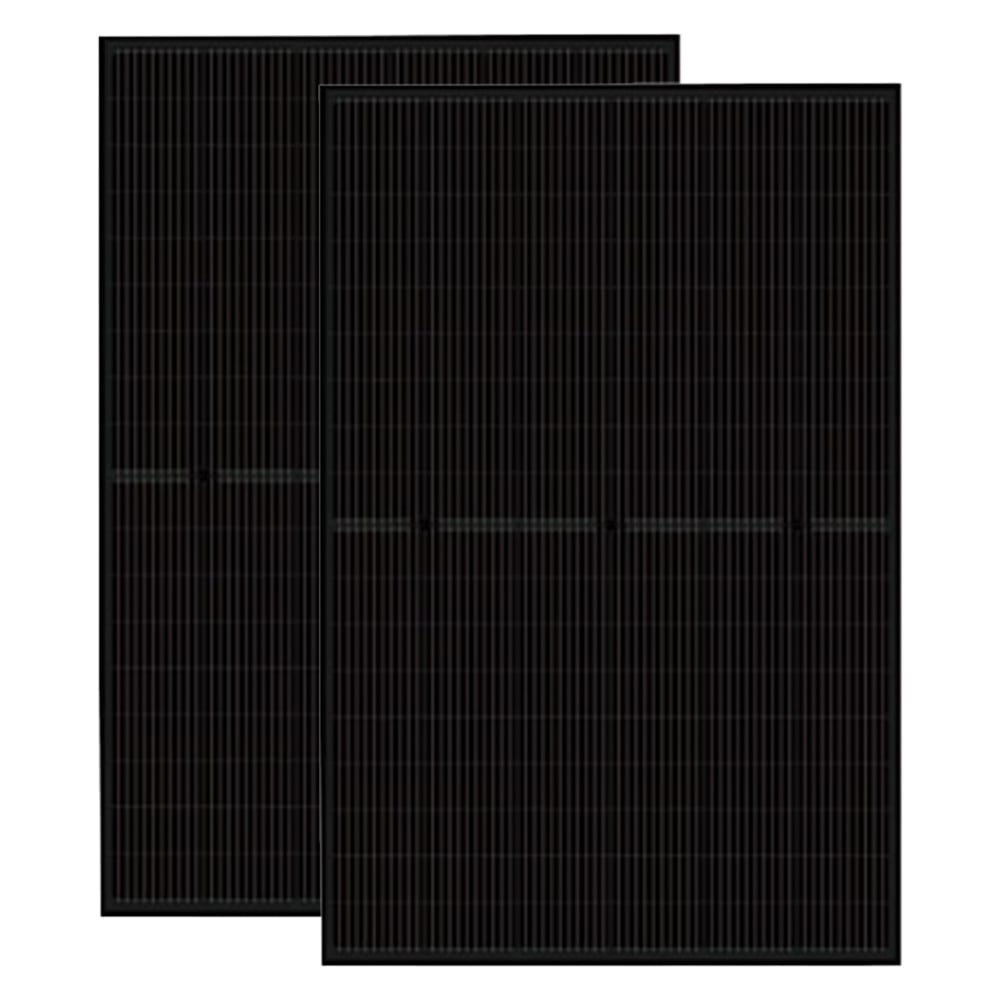

• 2x Luxen Solar 450W Bifacial TopCon N5 Full Black solar modules

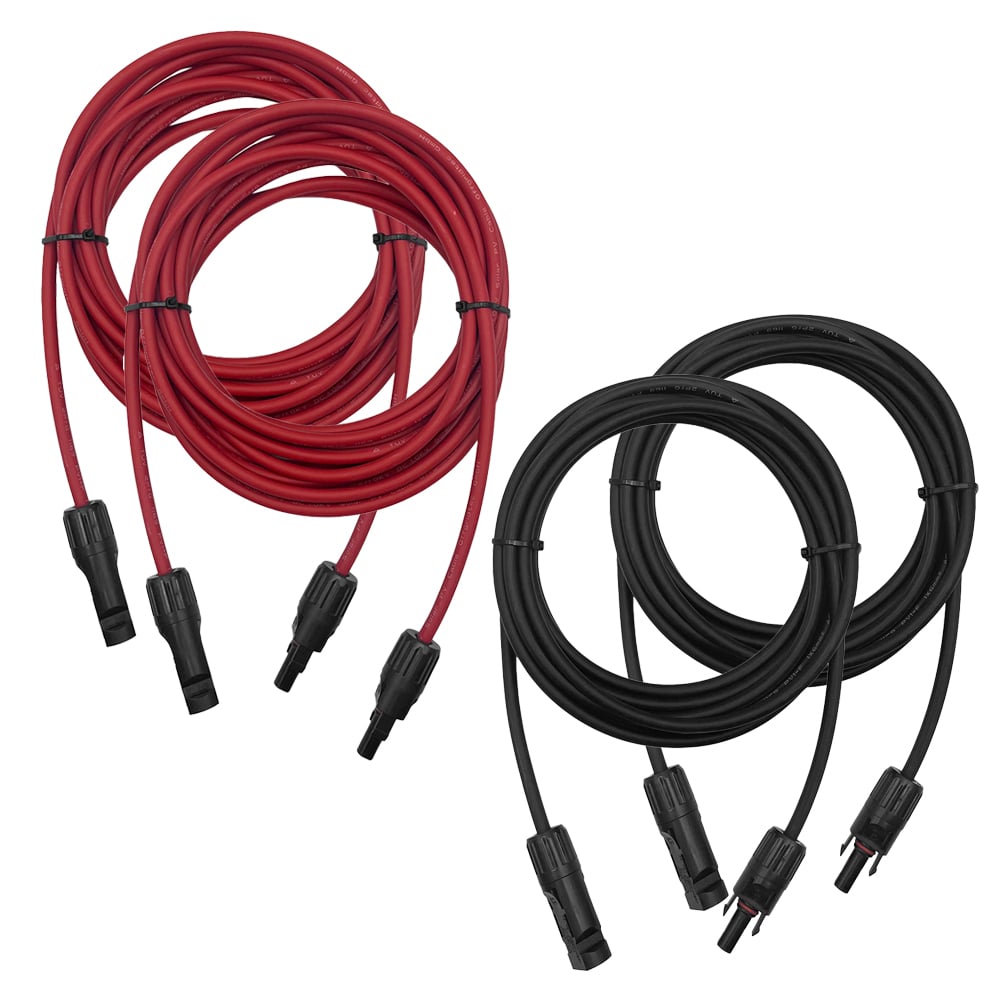

• 2x MC4 to MC4 6mm² 5m red/black connection cables

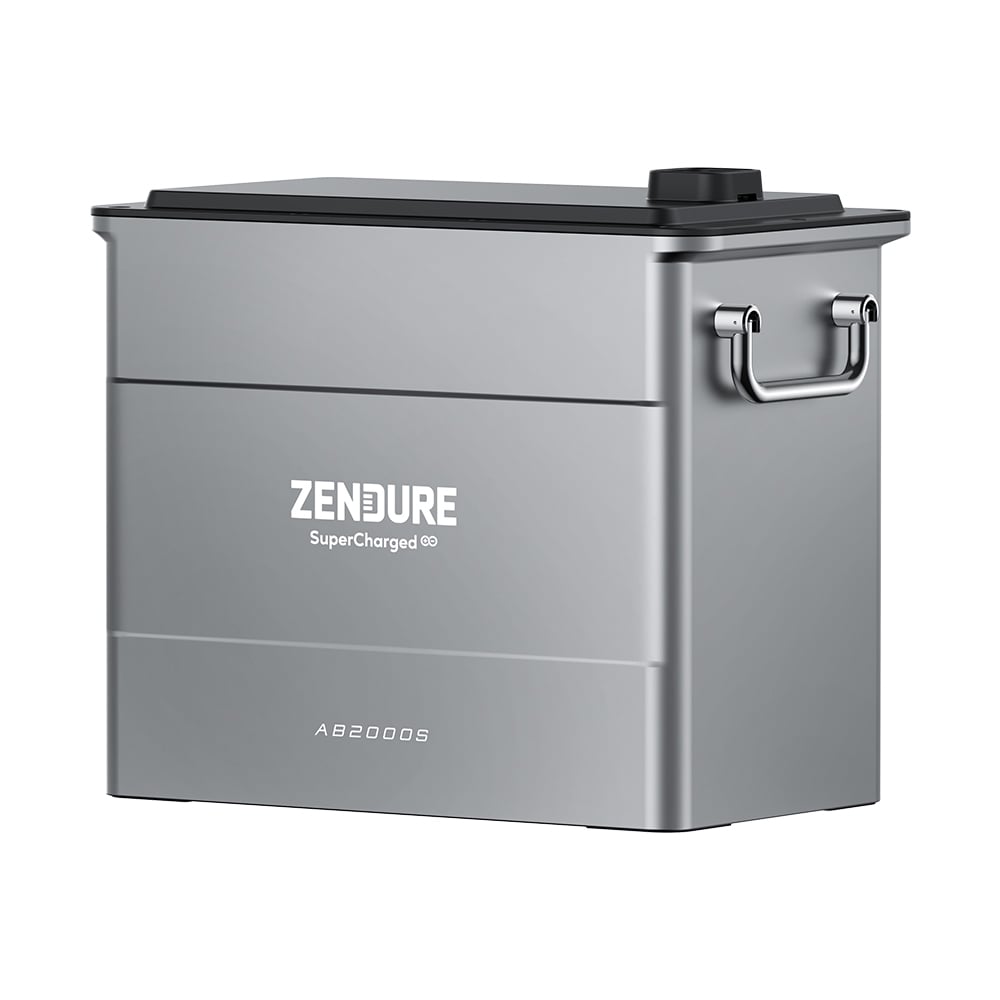

• 1x Zendure SolarFlow AB2000X expansion battery 1920Wh

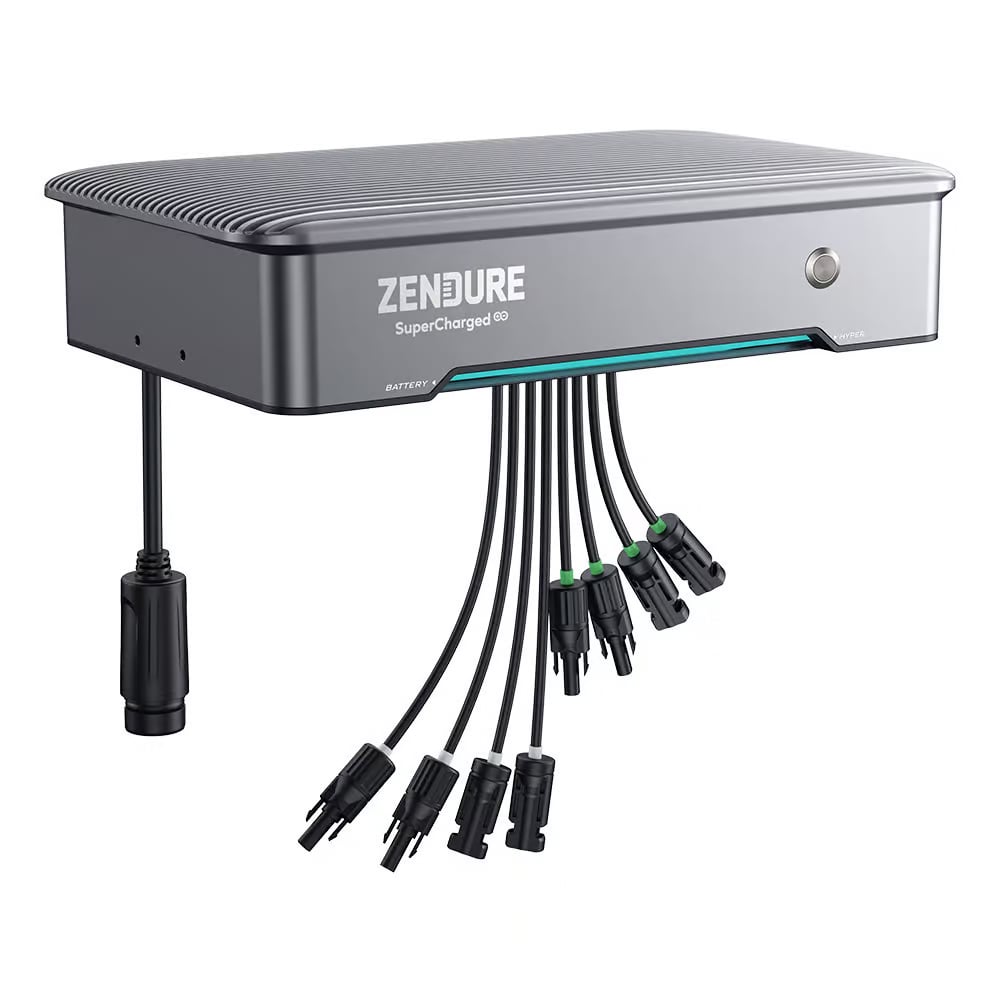

All-in-One Pro 1200 storage system

With the SolarFlow storage system from Zendure, you get an efficient solution for supplying your balcony power plant's battery with solar or grid power. The AIO Pro set combines a Hyper 2000 hybrid inverter with a 1920Wh AB2000X battery, which is equipped with the latest LiFePO4 cell technology.

• Hybrid inverter
• Flexible storage option with expansion
• Automatic multi-set connection thanks to ZenLink
• Anti-discharge technology
• Time-of-use automation
• AC-coupled storage solution
• 1200W bidirectional AC power
• 10-year manufacturer's warranty – information on the warranty conditions can be found here

Technical

Inverter

• Nominal voltage: 15V-55V
• Recommended power: 350W-550W
• Number of MPP trackers: 2
• MPPT voltage range: 16-48V
• Nominal current: 20A per MPPT
• Rated power: 900W per MPPT

Battery

• Capacity: 1920Wh/48V
• Battery type: LiFePO4
• Total capacity of 11.52Wh possible (modular expansion)

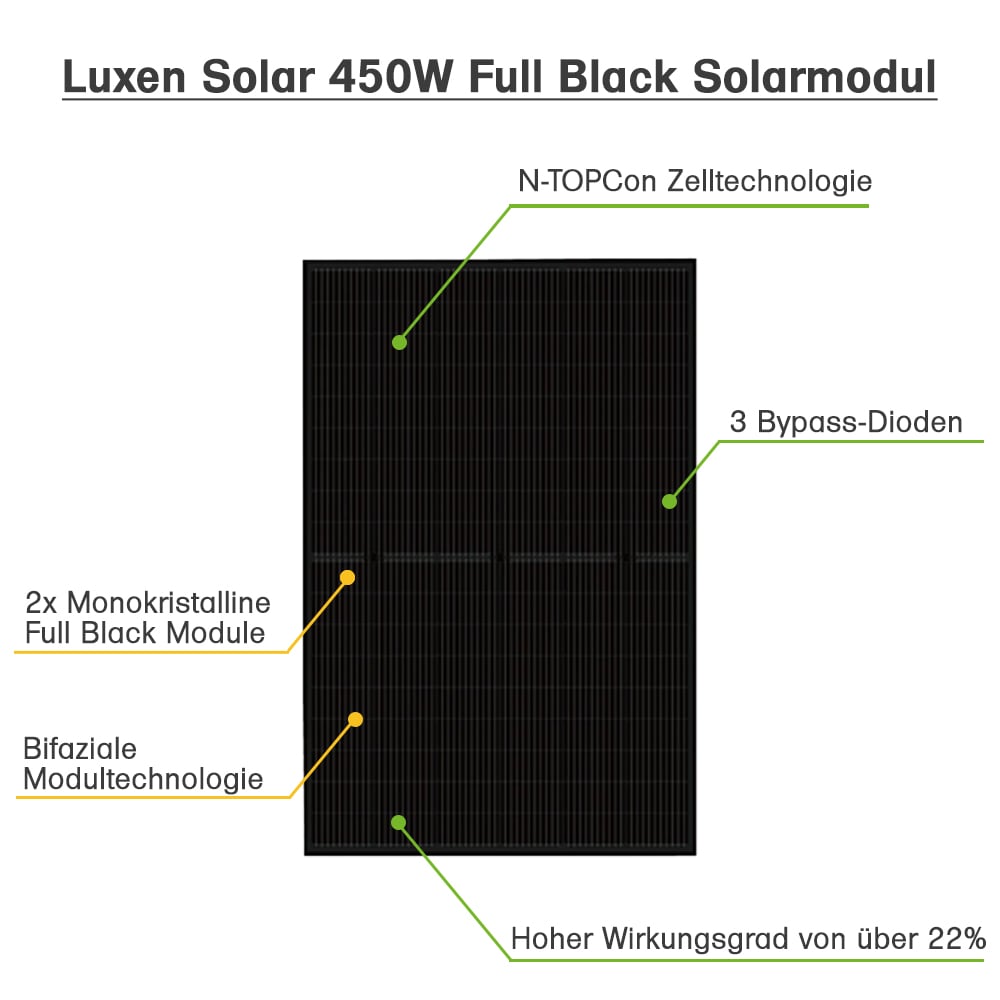

Luxen Solar 450W Full Black solar module

The bifacial 450W Full Black solar module from the Luxneri N5 series by Luxen Solar (MPN LNDX-450ND) sets new standards in solar technology. It combines innovative technologies such as LECO N-TOPCon cell technology and a 96-cell half-cut layout to maximize efficiency. In addition, SMBB half-cut cell technology is used to optimize performance.

• LECO N-TOPCon cell technology
• SMBB half-cut cell technology
• Low BOS & LCOE
• Bifacial cell module technology
• Excellent anti-PID and low LID performance
• Reduced hotspot risk
• 3 bypass diodes - minimized power loss in case of shading
• High cell efficiency of over 22.52%
• 15-year manufacturer's warranty - information on the warranty conditions can be found here

Technical data

• Maximum power: 450W
• Module voltage (Vmp): 30.08V
• Max. current (Imp): 14.96A
• Open circuit voltage (Voc): 35.21V
• Short-circuit current (Isc): 16.02A
• Module efficiency: 22.52%
• Max. operating voltage: 1500V DC
• Operating temperature range: -40°C to +85°C
• Dimensions: 1762 x 1134 x 30 mm
• Cells: 96 (6x16)
• Protection class IP68
• Connection: MC4
• Weight: 24 kg
