1200W balcony power plant with ultra-light solar modules and Zendure AIO Pro storage system

The Offgridtec 1200W balcony power plant (MPN 022225) is the perfect solution for efficient and sustainable power generation in your home. With six Offgridtec balcony solar modules, you benefit from high energy yield and optimal performance, even in changing light conditions. The ultra-light PV panels are supplied with metal cable ties for direct attachment to the balcony railing. The Zendure AIO Pro all-in-one storage system, which combines a Hyper 2000 hybrid inverter with a 1920Wh AB2000X battery, feeds the generated energy into your household and reliably stores any surplus in the battery, so you can access your own electricity even at night or on cloudy daysexcess energy in the storage unit reliably, so that you can access your own electricity even at night or on cloudy days. Take advantage of renewable energy with this sophisticated complete system, improve your energy balance, and take a forward-looking step toward sustainability.

• Energy storage: Battery stores excess energy for later use
• High capacity: Battery ensures reliable energy supply
• Maximized energy production: optimization in partial shade
• Outstanding efficiency: monocrystalline PV modules with over 22% efficiency

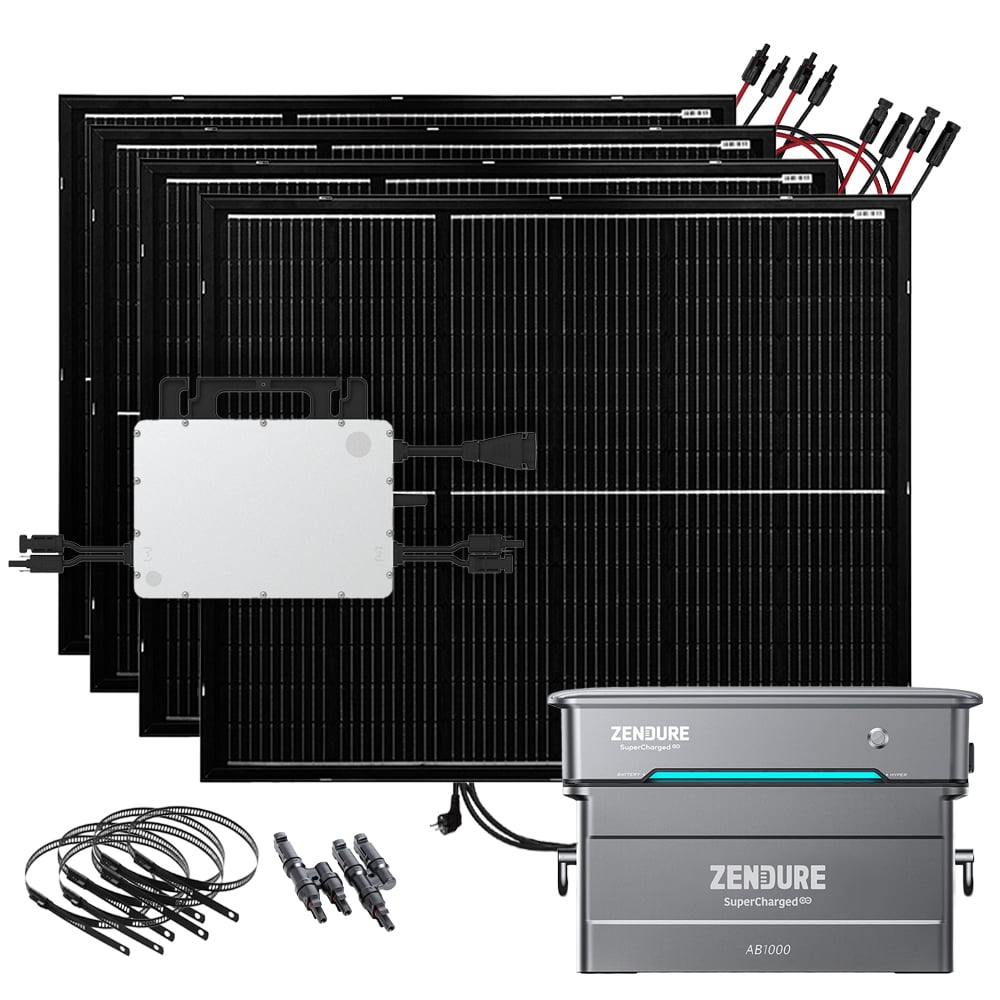

The complete balcony power plant system includes:

• 3x Offgridtec balcony solar module set 12V 2x 200W
• 1x Zendure AIO Pro 1200 all-in-one storage system
• 1x Zendure SolarFlow AB2000X expansion battery 1920Wh LiFePO4

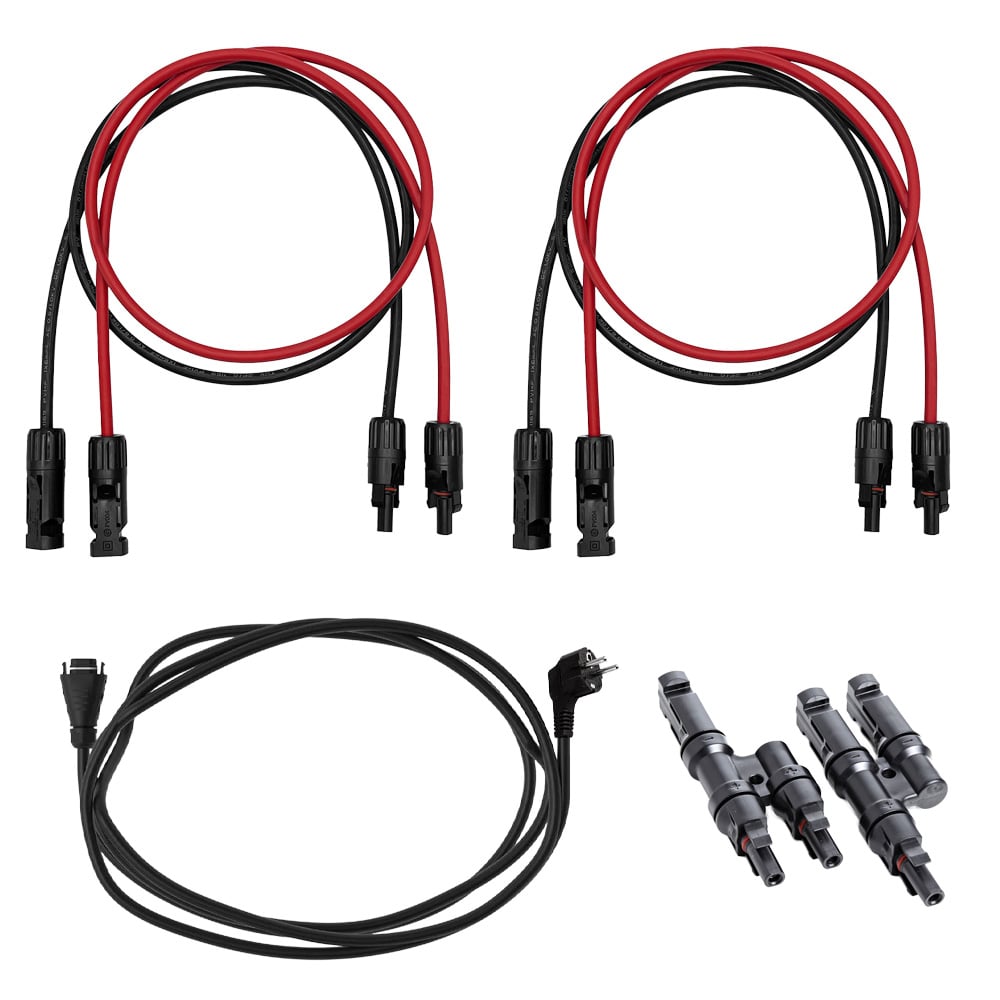

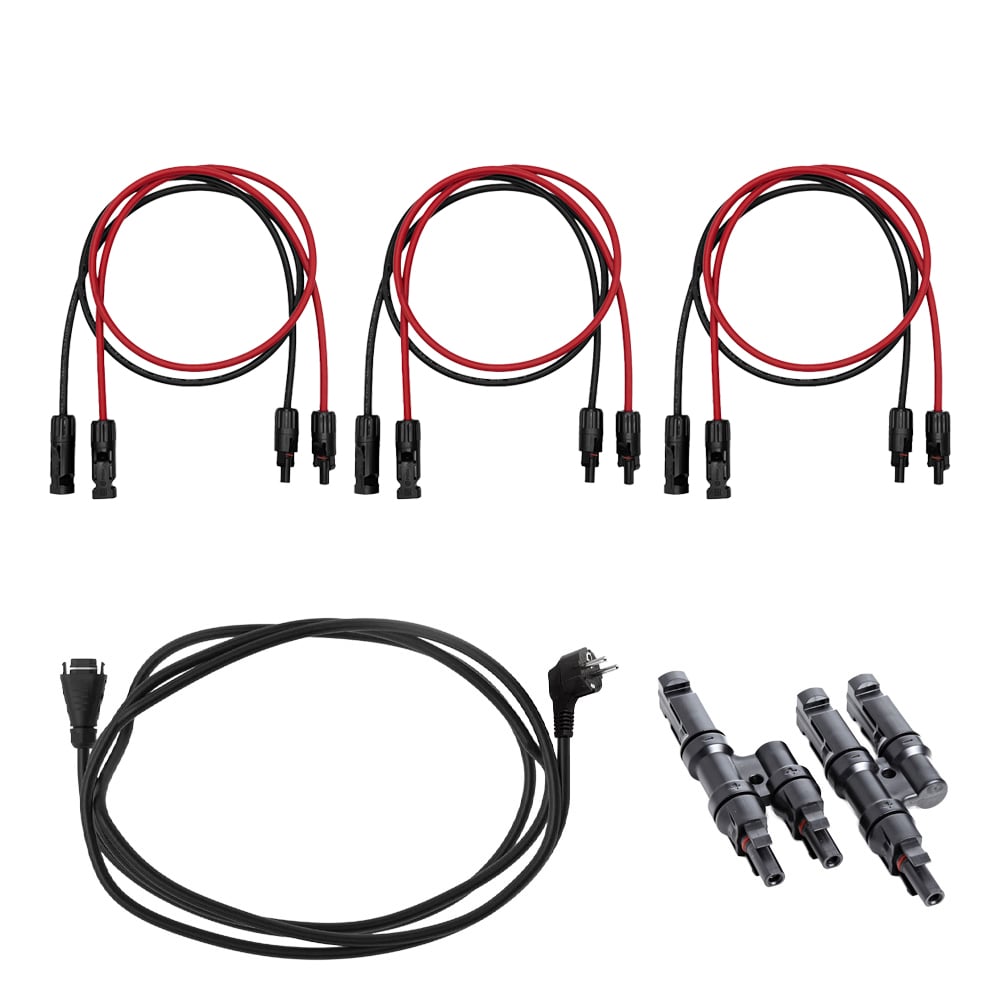

• 3x Offgridtec MC4 to MC4 6mm² 5m red/black connection cables
• 1x Offgridtec Y-plug branch socket

How does a balcony power plant work?

The Offgridtec balcony power plant is a compact solar system with several solar modules and a Zendure AIO storage system. The Hyper 2000 inverter is connected to the Schuko socket in the house and stacked on top of the battery. The solar power generated is used directly in the household, and the battery stores excess energy for later use. If mains power is available, the devices use this first before accessing the stored energy. This allows you to optimize your power supply efficiently.

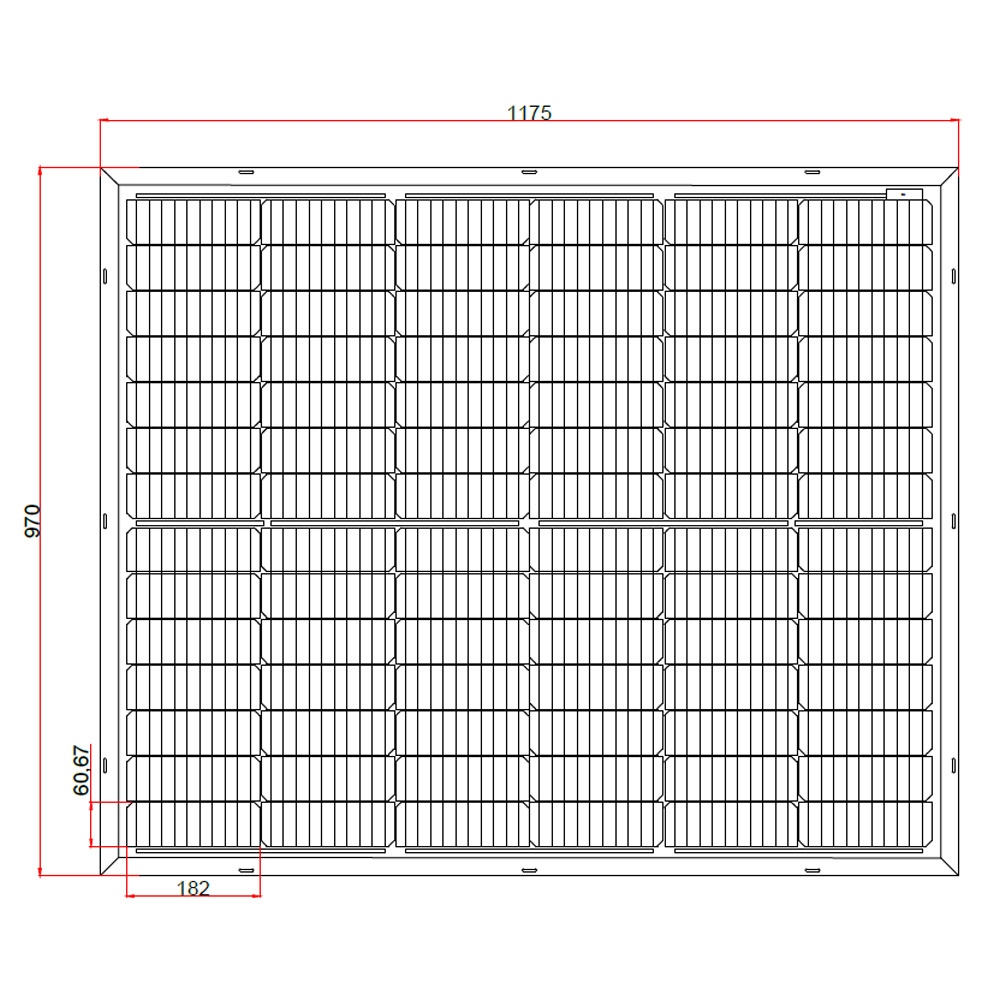

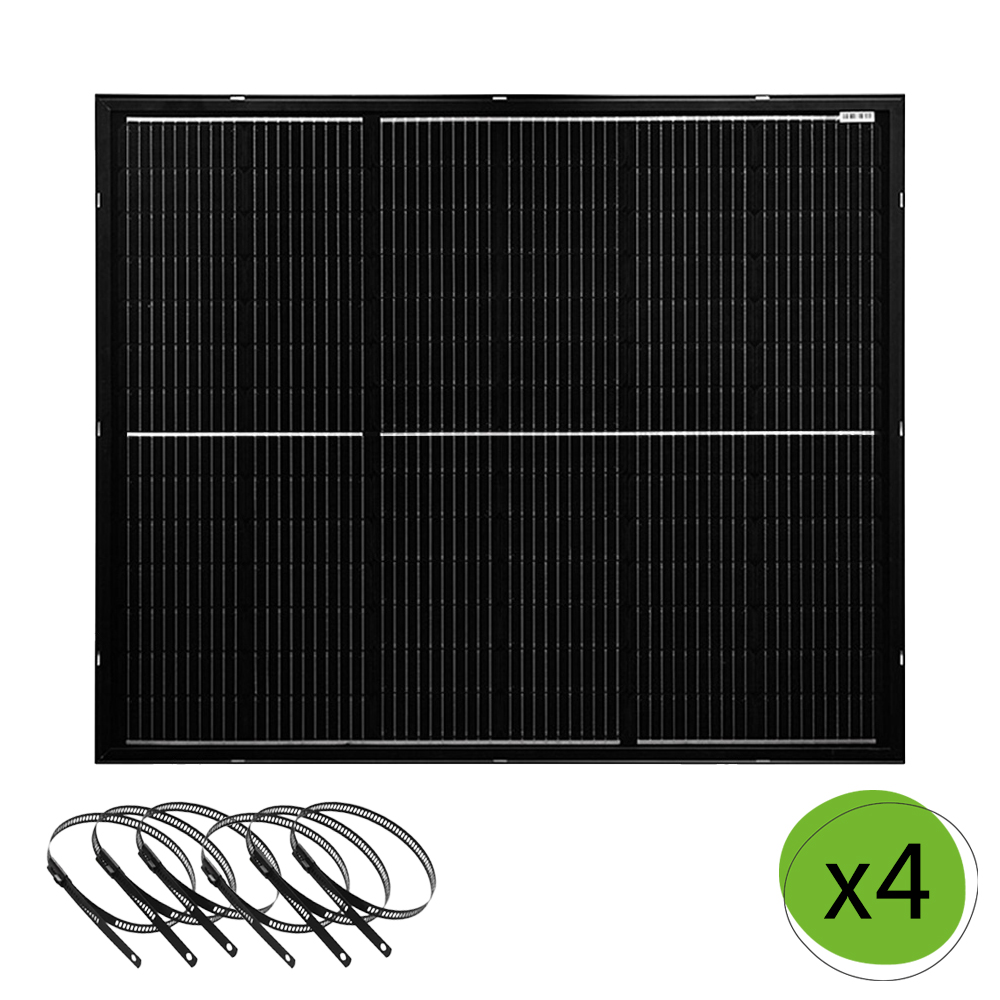

Offgridtec balcony solar module set

The Offgridtec Balcony Solar Module Set 2x 200W consists of two 200W solar modules, which operate with monocrystalline solar cells and a remarkable efficiency of 22.7%. These modules offer an operating voltage of 24.2V each and combine outstanding energy efficiency, aesthetic design, and easy installation at an affordable cost.

• Powerful monocrystalline solar cells
• 8mm thin aluminum frame
• Includes metal cable ties for easy installation

Technical data per module:

• Power (Pmax): 200W
• Operating voltage (Vmp): 24.2 V
• Open-circuit voltage (Voc): 28.3 V

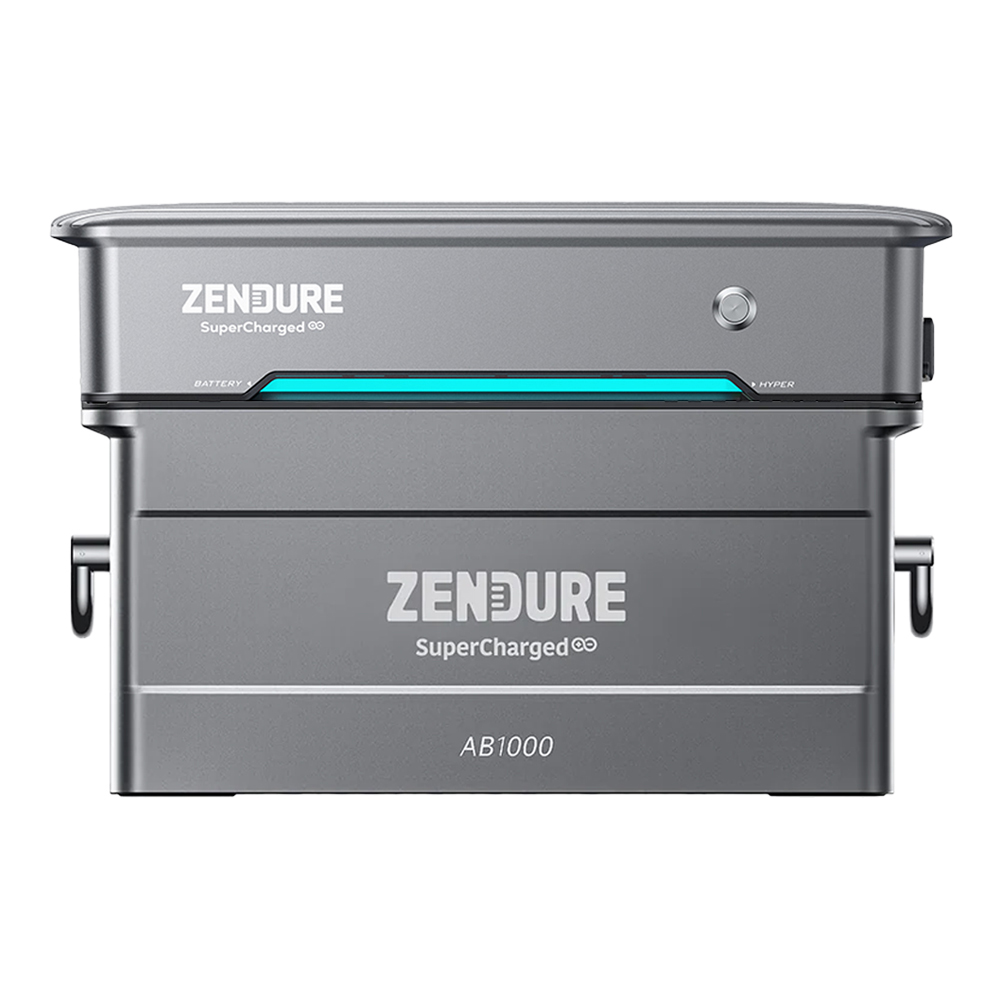

Zendure All-In-One Pro 1200 storage system

The SolarFlow storage system from Zendure provides you with an efficient solution for supplying your balcony power plant's battery with solar or grid power. The AIO Pro set combines a Hyper 2000 hybrid inverter with a 1920Wh AB2000X battery, which is equipped with the latest LiFePO4 cell technology.

• Hybrid inverter
• Flexible storage option with expansion
• Automatic multi-set connection thanks to ZenLink
• Anti-discharge technology

Technical

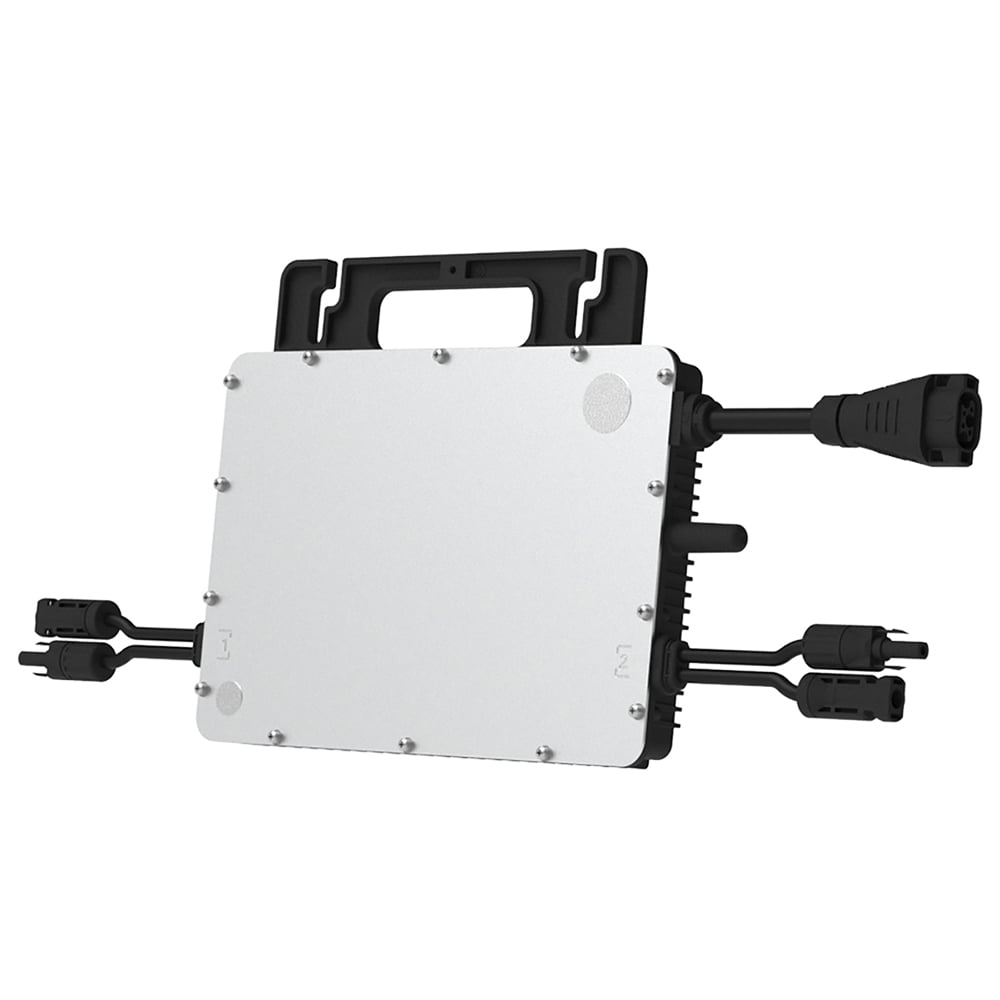

Inverter

• Nominal voltage: 15V-55V
• Recommended power: 350W-550W
• Number of MPP trackers: 2
• MPPT voltage range: 16-48V
• Nominal current: 20A per MPPT
• Rated power: 900W per MPPT

Battery

• Capacity: 1920Wh/48V
• Battery type: LiFePO4
• Total capacity of 11.52Wh possible (modular expansion)

Balcony power plants in Germany

There is currently no law or regulation in Germany governing the generation of solar power for purely personal use. The maximum limit of 600W AC PV power is a reserve value which, according to the current VDE standard, can be fed into an existing power outlet circuit in a house without overloading it. There are no specifications for independent circuits without additional load.
All electrical installations should be carried out in accordance with VDE standards. However, the operation of a balcony power plant via a standard Schuko socket is not prohibited in principle. Registration with the Federal Network Agency is mandatory. However, there are no known cases of fines for failure to register balcony power plants, nor are there any insurmountable problems with grid operators. Compliance with and implementation of standards and obligations is the responsibility of the plant operator. A wealth of technical and legal information on this subject can be found on relevant websites.
