Offgridtec Solarflow 9.60kWh 900W balcony power plant including storage and 800 Pro inverter

With the balcony power plant from Offgridtec (MPN: 024896), you can generate and store your own solar power easily and flexibly. The compact system consists of 2–4x 450W powerful and bifacial solar modules, a SolarFlow 800 Pro storage system with up to five AB2000X batteries, enabling a maximum capacity of 11.52kWh per stack. With 4 MPPTs of 660W each, an independent BMS module, and starting from 16V input voltage, this combination offers you maximum performance. Whether your solar modules are installed on the roof, balcony, garden shed, or terrace, the 800 Pro can be easily connected to a conventional power outlet, ensuring high flexibility of use. You can conveniently manage when and how much energy is used from which source via a user-friendly app. This innovative technology maximizes efficiency and makes it much easier to operate your solar system.

The advantages of a balcony power plant

• Simply save on electricity costs by producing your own electricity
• Perfect for tenants and homeowners, as no major renovations are necessary
• Quick installation without special knowledge, ready for immediate use
• Flexible use and expandable at any time
• Become more independent and better equipped to cope with power outages
• Increase economic efficiency by 6-10%
• Monitoring and control via app possible

The set includes:

• Luxen Solar 450W bifacial solar module TopCon Luxneri Series N5 Full Black (2x or 4x selectable)
• 1x Zendure SolarFlow 800 Pro 1920Wh 800W storage system for balcony power plants
• Zendure SolarFlow AB2000X expansion battery 1920Wh LiFePO4 (1-5x selectable)

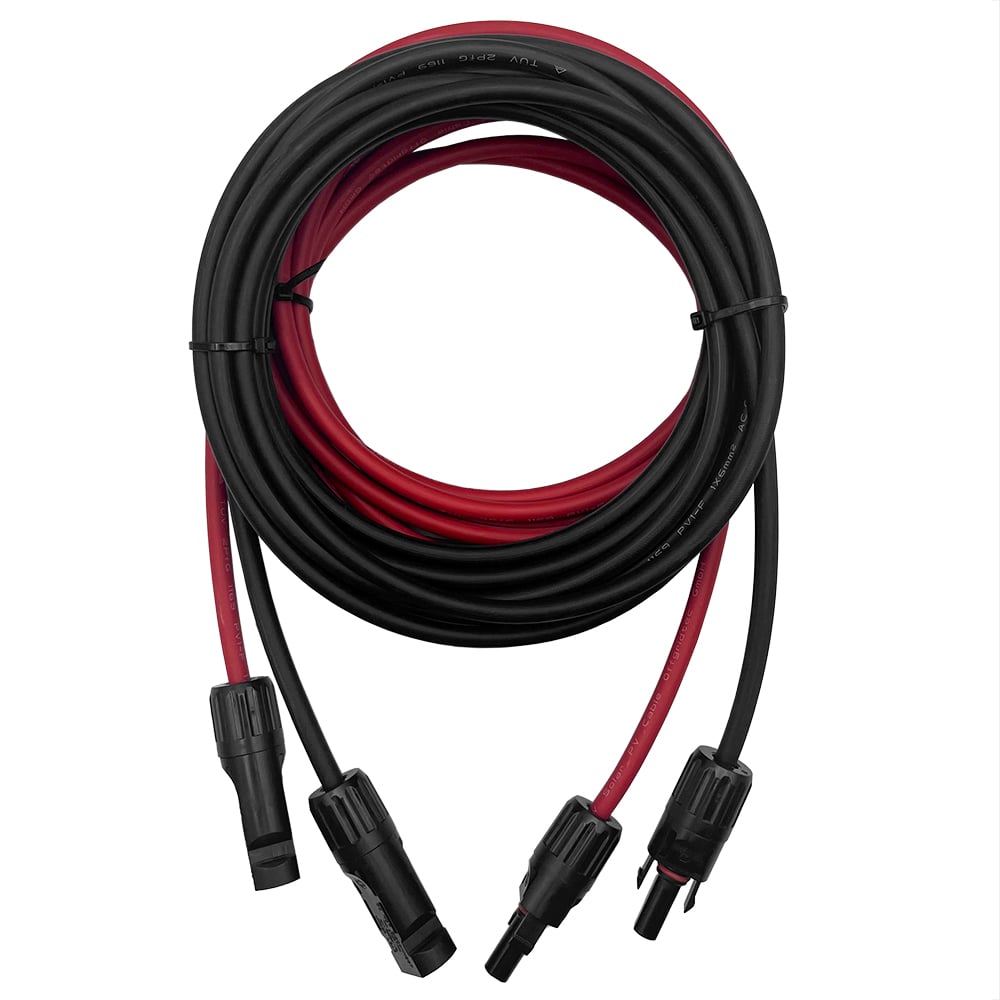

• MC4 to MC4 6mm² 5m red/black connection cable (2-4x depending on selection)

How does SolarFlow work with the 800 Pro?

During the day: During the day, the storage system converts the energy generated by the solar panels into AC power for your home. If excess solar power is generated that would be fed back into the grid, it is forwarded to the batteries for storage, reducing energy waste. This can be configured in the Zendure app or by using a compatible smart electricity meter.
At night: At night, the system converts the stored energy into AC power for your home, significantly improving energy efficiency. This reduces the waste of excess solar energy and helps you get the most cost benefit from your system.

• If the power generation of the solar panels is higher than the set AC output power, the inverter stores the surplus in the connected batteries.
• If the power generation of the solar panels is lower than the set AC output power, all of the power generated by the modules is supplied to your home and the storage is discharged to achieve the set AC output power.
• If there is no power generation from the solar panels, the system uses the batteries to supply your home with power.

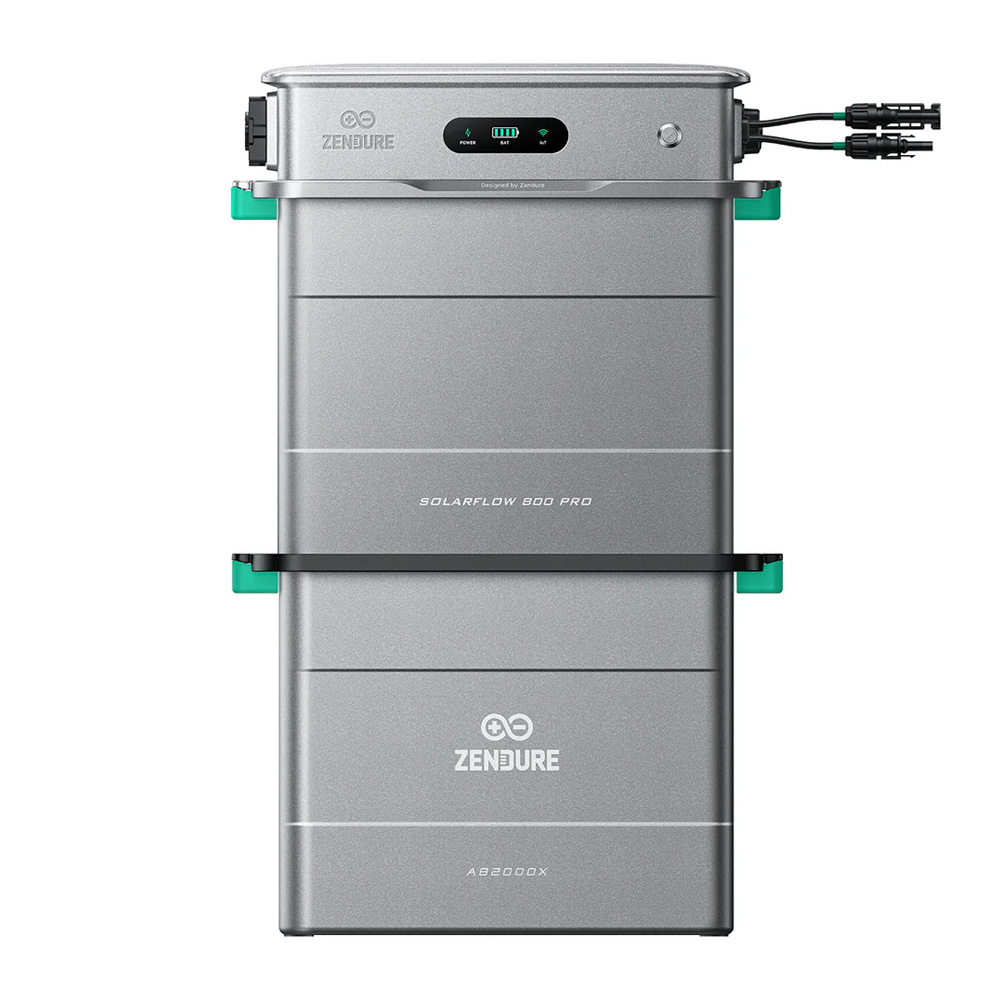

Solarflow 800 Pro Storage System

With the SolarFlow 800 Pro storage system from Zendure (MPN: ZDSF800P), you get smart energy management combined with a bidirectional 800W micro inverter and an integrated battery with a capacity of 1920Wh. The combination of four MPPTs, each with 660W, a standalone BMS module, and the ability to start from an input voltage of 16V ensures maximum performance. The system responds within 3 seconds and adapts flexibly to your energy needs.

• 800W bidirectional AC charging/discharging
• From 0 to 800W in less than 3 seconds
• 1000W off-grid power supply
• Optimal performance in low light
• Expandable up to 11.52kWh (1-5x AB2000X)
• 4 independent MPPT's
• AI-controlled energy management

Technical

PV input

• Max. PV input voltage: 55V DC
• Max. PV input current: 18A DC
• Max. PV input power: 2640W (4x 660W)

AC parameters

• Max. AC output power (on-grid): 800W
• Max. AC output power (off-grid): 1000W
• Max. AC output current (on-grid): 3.5A
• Max. AC output current (off-grid): 4.35A

General

• Protection class: IP65
• Temperature range: -20°C to +55°C
• Weight: 25.9 kg
• Dimensions: 338.6 x 226 x 358 mm

AB2000X expansion battery

The AB2000X from Zendure (MPN: ZDAB2000X) is a state-of-the-art LiFePO4 battery that efficiently stores excess energy from your balcony power plant. The battery offers you many new technologies and protective functions, with a particular focus on safety and durability. Compared to the previous models in the AB series, the battery has been further optimized to make your system even more reliable.

• Integrated fire protection system
• Automatic self-heating function
• Intelligent battery management system (BMS)
• 6000 cycles at 70% DoD
• Anti-thermal runaway technology

Technical data

• Battery chemistry: LiFePO4
• Capacity: 1920Wh (40Ah, 48V)
• Nominal output current: 25A
• Max. input/output power of one battery: 1680W
• Max. input/output power from two batteries: 1920W
• Weight: 20.3 kg
• Dimensions: 388 x 224 x 292 mm

450W Luxen N5 solar module

The bifacial 450W Full Black solar module from the Luxneri N5 series by Luxen Solar (MPN LNDX-450ND) sets new standards in solar technology. It combines innovative technologies such as LECO N-TOPCon cell technology and a 96-cell half-cut layout to maximize efficiency. It also uses SMBB half-cut cell technology, which helps optimize performance.

• LECO N-TOPCon cell technology
• SMBB half-cut cell technology
• Low BOS & LCOE
• Bifacial cell module technology
• Excellent anti-PID and low LID performance

Technical data

• Maximum power: 450W
• Module voltage (Vmp): 30.08V
• Max. current (Imp): 14.96A
• Open circuit voltage (Voc): 35.21V
• Short-circuit current (Isc): 16.02A
• Module efficiency: 22.52%
• Max. operating voltage: 1500V DC
• Operating temperature range: -40°C to +85°C
• Weight: 24 kg
• Dimensions: 1762 x 1134 x 30 mm
