Offgridtec® HomePremium s UsV solaranlage 2150Wp 3,5kWh LiFePo4 storage 1-phase

Extremely versatile complete package

The Offgridtec® HomePremium series is a true all-rounder at an unbeatable price-performance ratio. As well as being used as a usv backup solution with a choice between mains and battery priority, this PV system can also be used as a self-consumption system. There are virtually no limits to the performance of this Solarasystem - depending on personal requirements and on request, extensions are possible, both on the module and battery side. if a higher output power is required on the inverter, additional identical devices can also be connected here to increase performance.

In addition to the power electronics, the storage system and the solar modules, all components required for the connection are also included in the scope of delivery, with the exception of the solar module holder, which must be ordered separately. all other components are plug and play - this means no annoying plug installation or the like - connect and you're done. Depending on your choice, the system is supplied with or without an electricity meter.

Parts list - what's inside

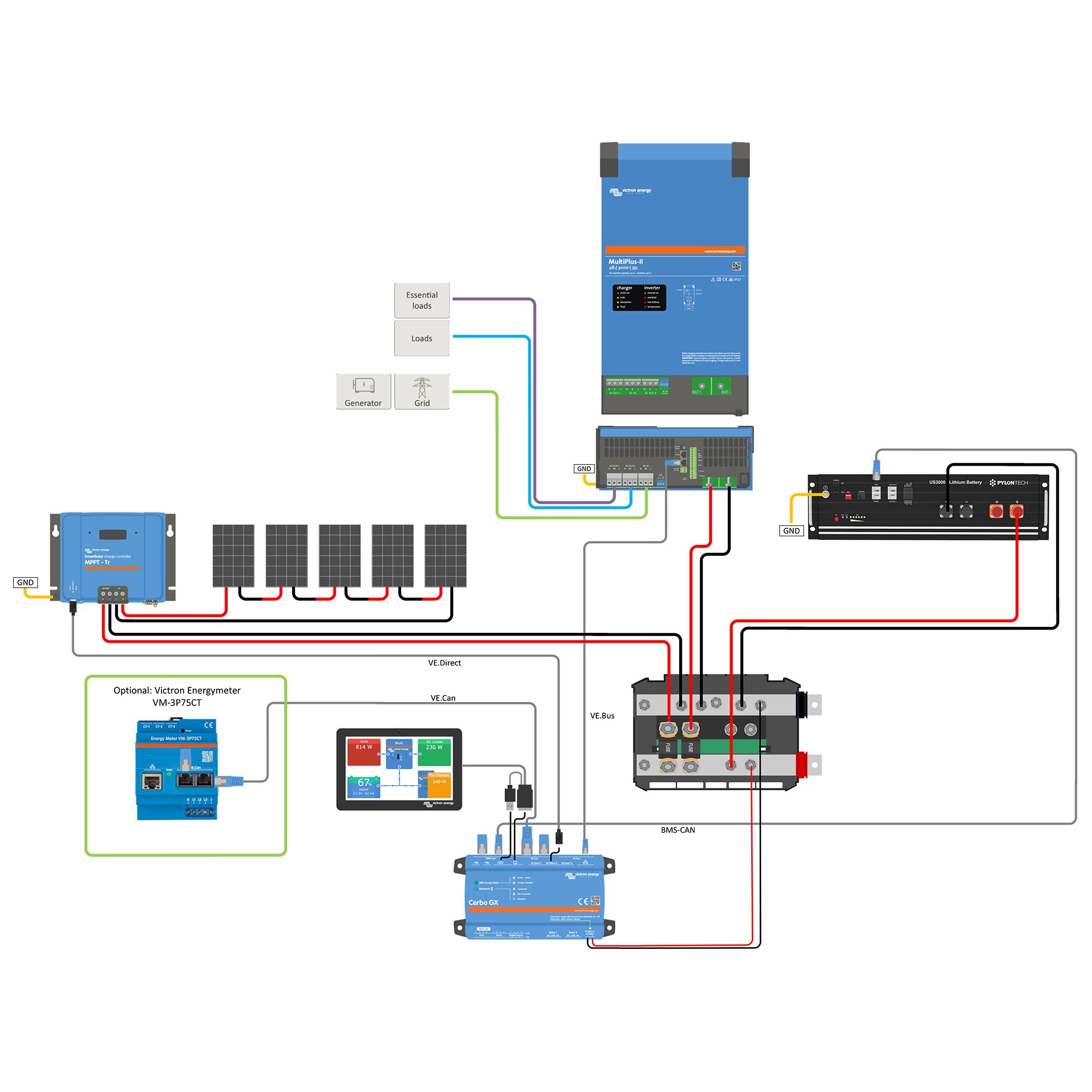

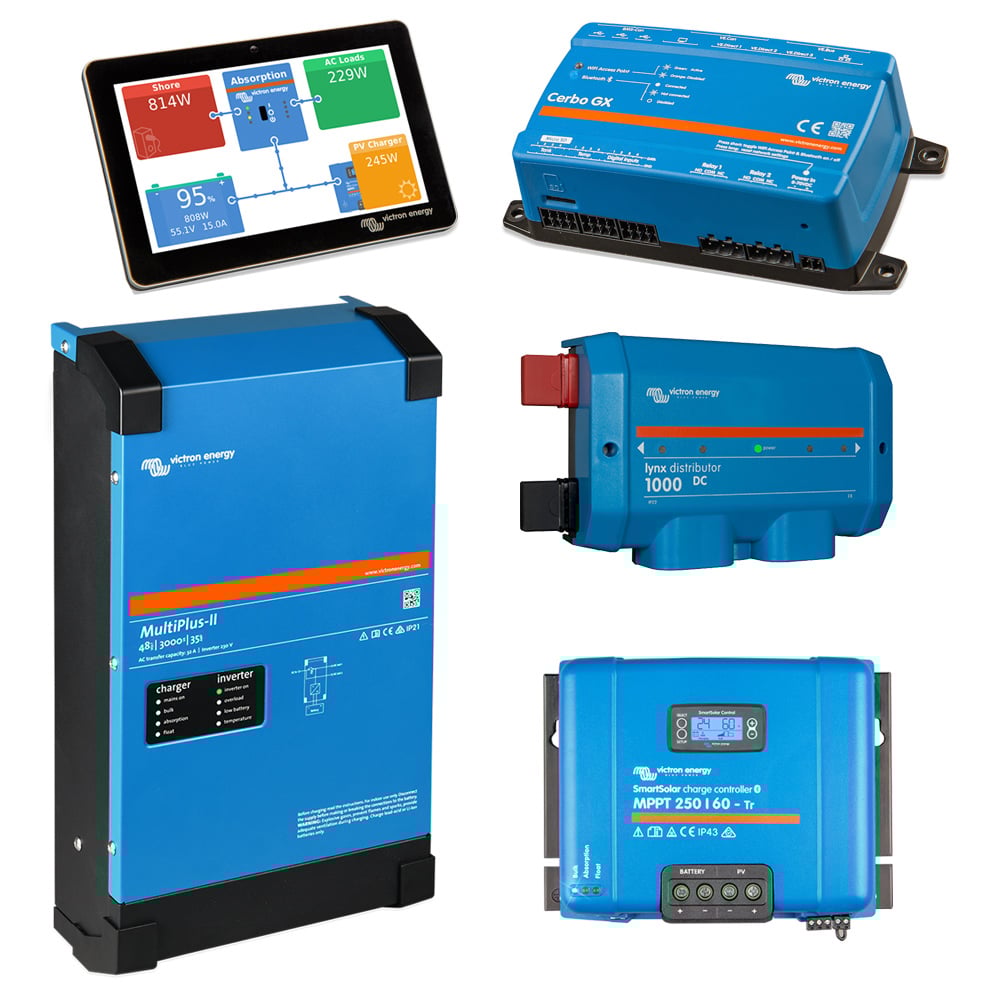

• 5x Luxen Solar 430w Full Black Solar Panel Luxneri Series 5
• victron Energy 48/3000 MultiPlus-II inverter
• victron Energy mppt SmartSolar charge controller 250/60-Tr
• victron Energy Lynx Distributor for dc distribution and fuse protection

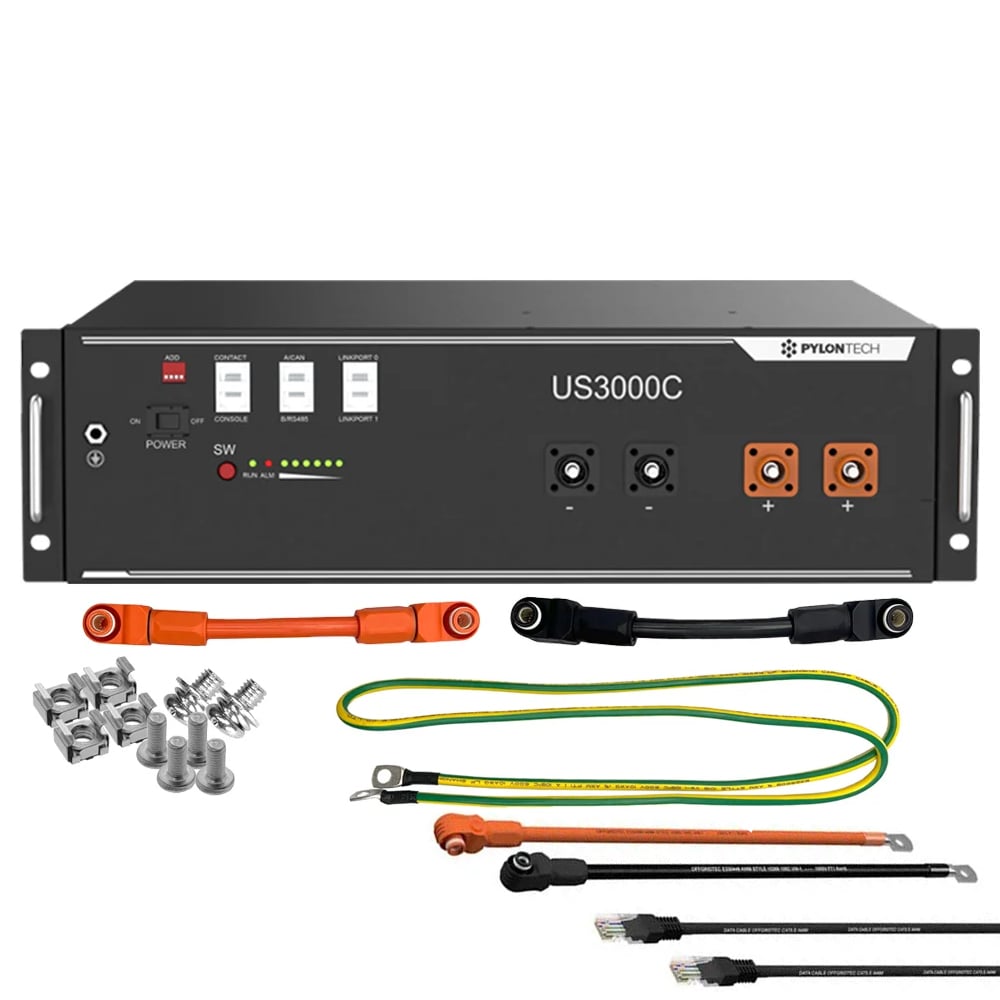

• 1x 3.5kwh Pylontech us3000c LiFePo4 storage batteries with integrated bms
• inverter connection cable for connecting the Pylontech batteries to the MultiPlus 48/5000 (2m)
• vE.Can to CaN-Bus bms type a cable 1.8m 1.8m aSS030720018 for connecting the Cerbo gx to the storage system
• 3m victron rj45 utp cable for connecting the MultiPlus to the Cerbo gx
• Cerbo gx + gx Touch 50 from victron Energy - the communication center of your system

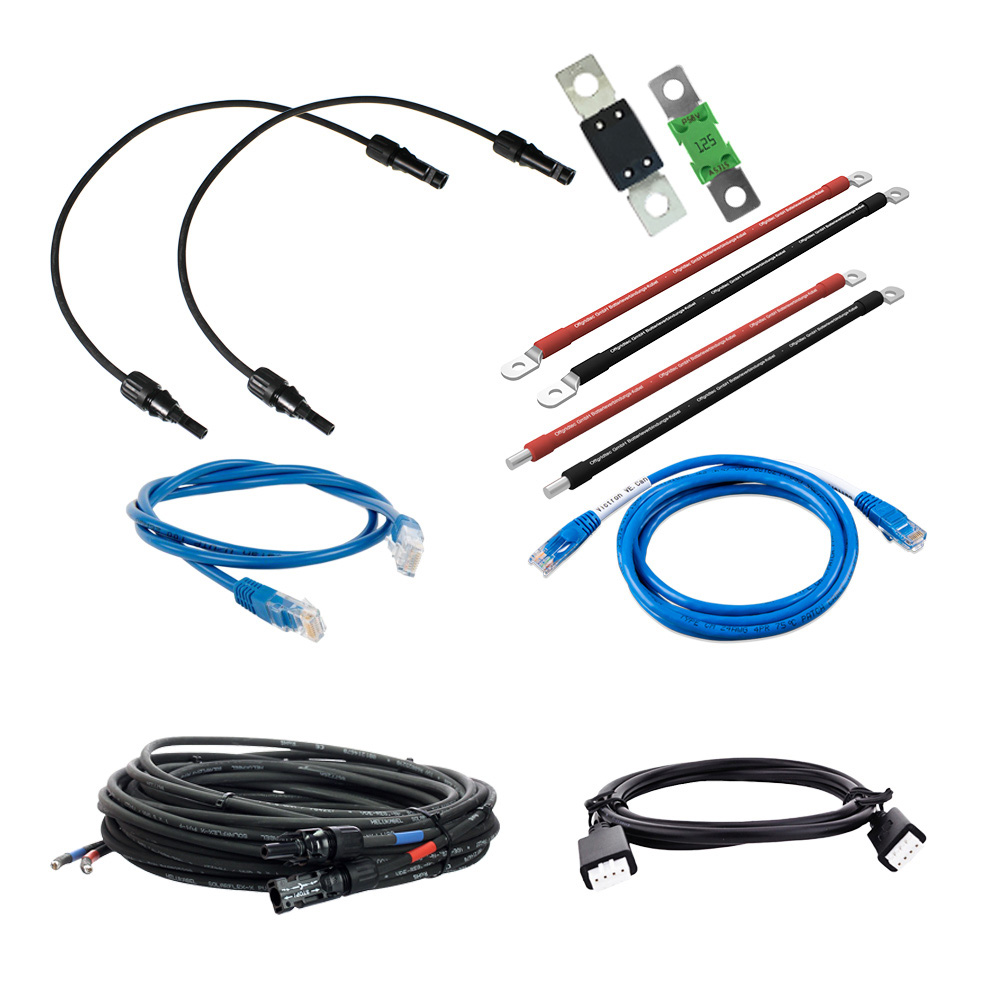

• 1m battery cable 25mm² m8 terminal to screw terminal connection for connecting the charge controller to the battery
• 1m battery cable 50mm² m8 eyelets on both sides for connecting Multiplus and Lynx Distributor
• 10m Offgridtec® Professional connection cable 6mm² solar module to charge controller for the connection between solar modules and charge controller
• 5m 6mm² MC-4 connection cable plug/socket extension for connecting the two module strings to the MC-4 junction sockets
• victron 3m vE.Direct cable connection cable for connecting the charge controller to the Cerbo gx
• victron 125a 58v/48v MEGa-Fuse fuse for Multiplus
• Offgridtec 80a 70v MEGa-Fuse fuse for solar charge controller

When selecting electricity meter:

• 1x victron vm-3p75ct Energy Meter
• 1x victron 5m rj45 utp cable

Extended use of your HomePremium system

The HomePremium system is supplied either with or without victron electricity meter and cable, whereby an energy meter with connection cable is mandatory for the installation of an Energy Storage System.

With this electricity meter, you can carry out a grid-parallel installation and then monitor your energy consumption and control your energy costs. thanks to phase compensation, you can also operate the 3-phase meter for 1-phase systems. This means that seamless integration of decentralized energy sources and consumers into the existing power grid is no problem.

Luxen Solar 430w Full Black solar module

The monocrystalline and bifacial 430w Full Black Series n5 solar module fromLuxen Solarsolar module impresses with a combination of different technologies, such as N-TOPCon cell technology and a 108 half-cell layout. The smbb half-cut cell technology was also used during production to increase performance. The state-of-the-art solar module represents the pinnacle of solar technology, offering impressive power output and low LCOE.

Features

• Glass-glass module
• N-TOPCon cell technology
• smbb Half-Cut cell technology
• Low bos & LCOE
• Bifacial cell module technology
• excellent anti-PID and low lid performance
• 3 bypass diodes
• 30-year performance guarantee and 15-year product guarantee
• high cell efficiency of over 22%

Half-cell technology

In half-cell technology ("half-cut"), conventional silicon cells are cut in half using a laser. The resulting halves are then centrally connected in parallel, which leads to an increased output of the solar module by reducing resistance losses.

Bifacial cells

Bifacial means two-faced. And the name says it all: the Luxen Solar 430w n5 module is also equipped with solar cells on the back, which means that sunlight can be absorbed even better and the efficiency of the overall module is increased.

Technical data

• maximum output: 430w
• Module voltage (vmp): 32.04v
• max. current (imp): 13.42a
• Open circuit voltage (voc): 38.96v
• Short-circuit current (Isc): 14.13a
• Module efficiency: 22.02%
• dimensions: 1722 x 1134 x 30 mm
• Operating temperature range: -40°C to +85°C
• Cells: 108 (6x18)
• max. operating voltage: 1500v dc
• Weight: 23,5kg

LiFePo4 storage technology from Pylontech - proven, reliable, safe

The us3000c storage battery from Pylontech is a lithium iron phosphate battery of the latest generation that offers maximum safety and service life. Each module has a battery management system (bms) for comprehensive protection against deep discharge, overcharging and damage caused by high currents or extreme temperatures. Short circuits and reverse polarity are also excluded.

Features of the Pylontech us3000c memory modules

• Extremely cycle-proof - over 6000 cycles at 95% DoD (discharge per cycle)
• absolutely intrinsically safe due to integrated protective shutdown (bms)
• High charging and discharging capacity of up to 5kw per module
• High storage density
• Low weight and compact design
• absolutely maintenance-free and easy to install
• 10-year guarantee

The heart of the system - the victron MultiPlus-II 48/3000

The MultiPlus-II 48/3000/70-50 from victron Energy (mpn pmp482305010) combines classic Multiplus components with an external current sensor and integrated anti-islanding function. This extends the PowerControl and Powerassist functions to 100a and enables use in ess applications.

With an inverter of 3000 w (2400 w with linear load) and a 48 v battery charger of 35 a, this Multiplus-II is optimally dimensioned. A 32 a transfer switch enables fast switching between the aC connections for maximum flexibility.

Performance features and characteristics of the MultiPlus-II 48/3000

• PowerControl and Powerassist - increase of mains or generator output
• built-in anti-islanding function and connection option for external current sensor (optional)
• Can be used as a backup device in grid-connected systems
• vE.Bus interface for parallel and three-phase operation
• Remote monitoring and system integration
• Approved according to vDE-aR-N 4105

Technical data

• 3000 w power with non-linear load - 2400 w continuous load - 5500 w peak power
• for 48 v battery voltage, 32a transfer switch and 35a battery charger
• output voltage: 230 vaC, frequency: 50 Hz
• Max. efficiency: 95%
• Protection class IP22

Maximum flexibility thanks to two AC outputs

The MultiPlus-II offers uninterrupted operation by automatically taking over the supply to consumers in the event of mains failures or interruptions to the shore/generator power. The switchover takes place in less than 20 milliseconds to ensure continuous operation of electronic devices. A second output supplies power only when alternating current is present at the input of the MultiPlus-II. This makes it possible to connect consumers such as a water heater that should not be discharged from the battery.

delivery is configured and matched to the components supplied

The setting options on the MultiPlus-II are extremely varied, as are its possible applications. We have already made the most important settings for you so that the system, as it is delivered, lives up to the description "plug and play" - the system is therefore ready for immediate use without any further configuration. if you order the selection with an electricity meter, we will set up the system directly as an ess.

victron Energy Cerbo gx and gx Touch 50 - the communication center of your system

The latest development in system monitoring from the company allows you to control and configure your system with ease. rounded off by the gxC Touch 50 - a waterproof 5 inch touchscreen - you always have an overview of your system parameters. The Cerbo's functions allow you to control and monitor your system perfectly and maximize system performance in an unprecedentedly simple way.

victron Energy has developed a new system monitor that allows you to easily control and configure your system. The gx Touch 50, a waterproof 5-inch touchscreen, provides a clear overview of your system parameters. The Cerbo module allows you to precisely monitor your system and maximize performance. It is compatible with both solar charge controllers and grid-connected inverters. Mounting material and connection cable are included in the scope of delivery. The Bluetooth function of the gx Touch 50 makes accessing your system even quicker and easier. An optional wall bracket is available.

victron Remote portal

The victron Remote Portal (vRM) is a free victron Energy service that allows you to read out your system data remotely and configure the devices accordingly. This means that you always have full control and an overview of all relevant system parameters, even when you are away. The functionality is available online as a demo version and is ideal for getting a first impression - https://vrm.victronenergy.com/landingpage

Safety note: Only have this complete system installed and commissioned by a qualified electrician.
