Offgridtec HomePremium UPS solar system 13500Wp E-Box 48100R-TE+ 20.5kWh 3-phase

Extremely versatile complete package—your powerful all-in-one solar solution with high-quality premium components for maximum energy independence

The Offgridtec® HomePremium series (3-phase) offers versatile application options at an unbeatable price-performance ratio. It can be used both as a UPS backup solution with the option of choosing between grid and battery priority, and as a self-consumption system. The performance of this PV system is flexibly adjustable and can be expanded according to individual needs, both in terms of solar modules and batteries. If necessary, additional inverters can be added to increase the output power.

In addition to the power electronics from Victron Energy, the Pytes storage units, and the solar modules from Luxen, the scope of delivery also includes all necessary connection components, with the exception of the solar module mounts, which must be ordered separately. The system is not sent to you preconfigured.

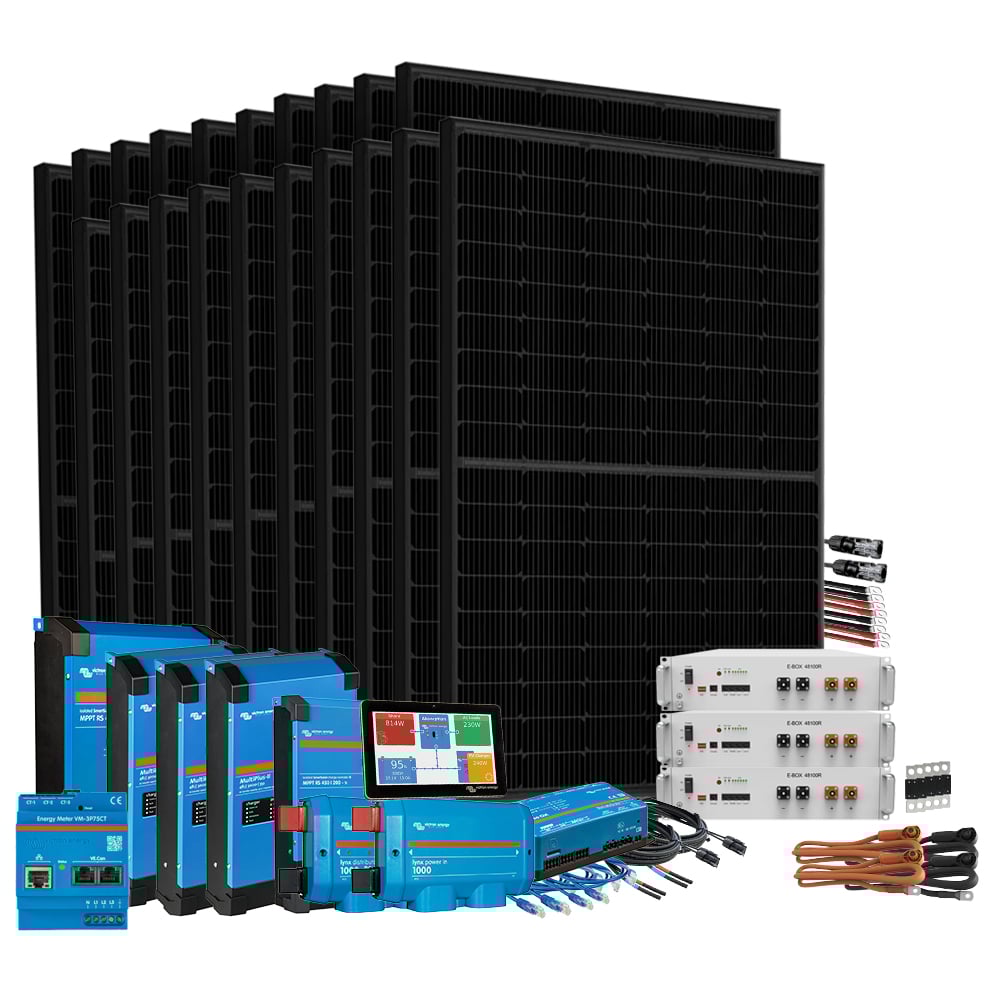

Parts list – what's included

• 30x Luxen Solar 450W Bifacial TopCon N5 Full Black solar modules
• 3x Victron MultiPlus-II 48/5000/70-50 230V
• 1x Victron Cerbo GX MK2 communication center system monitoring
• 1x Victron GX Touch 50 display panel for Cerbo GX
• 1x Victron SmartSolar MPPT RS 450/200-MC4 48V charge controller
• 4x Pytes E-Box 48100R-TE+ 5.12 kWh 51.2V LiFePO4 battery
• 1x Victron Energy Lynx Power In
• 1x Victron Lynx Distributor

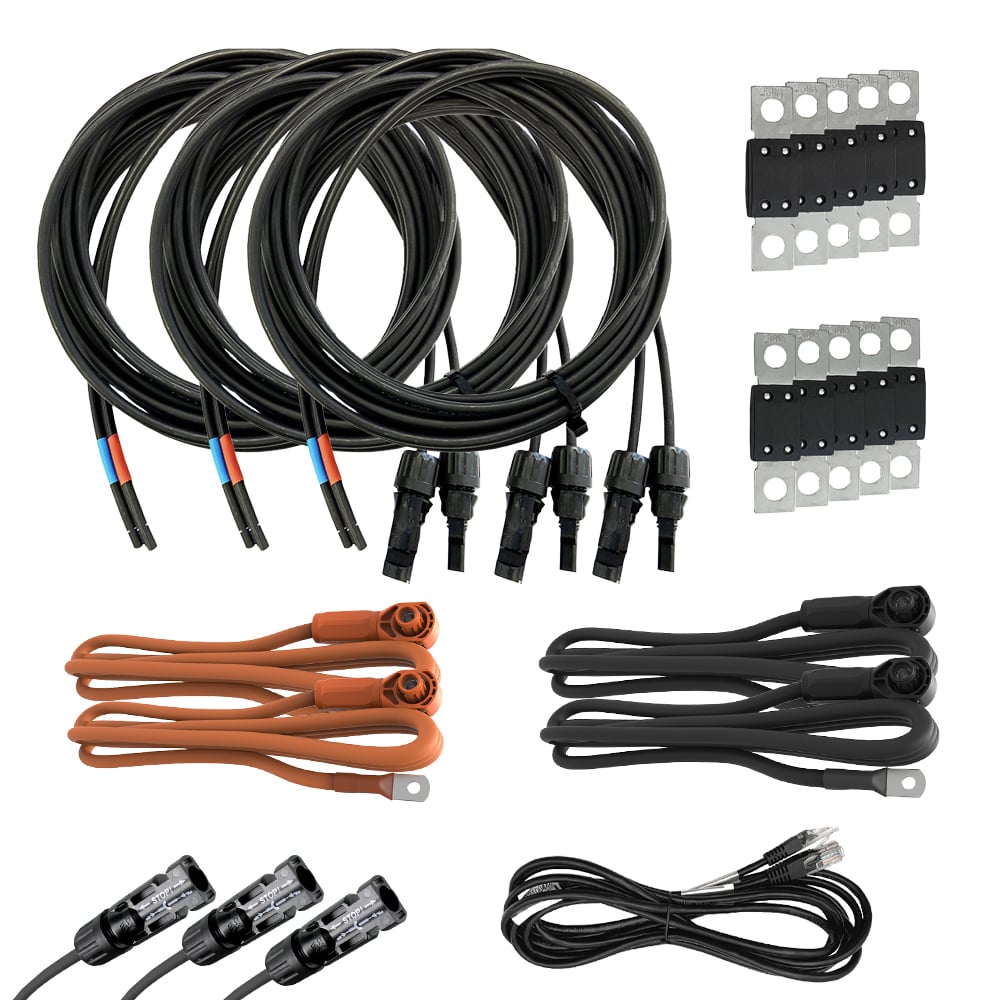

• 4x Offgridtec® 1m battery cable 50mm² M8 eyelets on both sides
• 3x Offgridtec 10m MC4 to MC4 connection cable 6mm² red/black
• 2x Offgridtec 10m 6mm² MC-4 connection cable plug/socket extension
• 2x 0.9m Victron RJ45 UTP cable
• 2x 3m Victron RJ45 UTP cable
• 1x Offgridtec set of 5 MEGA fuses 200A 70V for 48V systems
• 1x Offgridtec set of 5 MEGA fuses 250A 70V for 48V systems
• 1x Pytes data cable battery to Victron inverter 3.5m MultiPlus 2
• 1x Pytes power cable battery to inverter 2m, positive (M8, 25mm² 125A)
• 1x Pytes power cable battery to inverter 2m, negative (M8, 25mm² 125A)

When selecting an electricity meter

• 1x Victron VM-3P75CT Energy Meter
• 1x Victron 5 m RJ45 UTP cable

Extended use of your HomePremium system

The HomePremium system is available with or without a Victron electricity meter and cable, although an energy meter with connection cable is required for setting up an energy storage system.

With this electricity meter, you can set up a grid-parallel installation and then monitor your energy consumption and control your energy coststhanks to phase compensation, you can even use the 3-phase meter for 1-phase systems. This makes seamless integration of decentralized energy sources and consumers into the existing power grid no problem at all

Luxen Solar 450W Full Black Solar Module

The bifacial 450W Full Black solar module from the Luxneri N5 series by Luxen Solar (MPN: LNDX-450ND) sets new standards in solar technology. It combines innovative technologies such as LECO N-TOPCon cell technology and a 96-cell half layout to maximize efficiency. In addition, SMBB half-cut cell technology is used to optimize performance.

• LECO N-TOPCon cell technology
• SMBB half-cut cell technology
• Low BOS & LCOE
• Bifacial cell module technology
• Excellent anti-PID and low LID performance
• Reduced hotspot risk
• 3 bypass diodes - minimized power loss in case of shading
• high cell efficiency of over 22.52%

Technical data

• maximum power: 450W
• Module voltage (Vmp): 30.08V
• max. current (Imp): 14.96A
• Open circuit voltage (Voc): 35.21V
• Short-circuit current (Isc): 16.02A
• Module efficiency: 22.52%
• max. operating voltage: 1500V DC
• Operating temperature range: -40°C to +85°C
• Dimensions: 1762 x 1134 x 30 mm
• Cells: 96 (6x16)
• Protection class IP68
• Connection: MC4
• Weight: 24 kg

The Pytes E-Box 48100R-TE+

The Pytes E-BOX 48100R-TE+ (MPN: 110402100202) is a LiFePO4 energy storage system with a capacity of 5.12 kWh and impresses with its high level of safety, well-thought-out design, and consistent performance in continuous operation. The compact, maintenance-free battery can be installed quickly and expanded into larger storage systems using parallel connections. Ideal as a reliable basis for your individual storage project.

Technical data

• Battery chemistry: Lithium iron phosphate (LFP)
• Nominal voltage: 51.2 V
• Voltage range: 47.5-57.6 V
• Nominal power: 100 Ah
• Nominal energy: 5.12 kWh
• Max. charging current: 50 A
• Max. discharge: 50 A
• Charging temperature: 0~50°C
• Discharge temperature: -10~50°C
• Efficiency: ≥95%
• Communication protocol: RS-232, RS-485, CAN
• Cycle life: >6000 cycles at 90% DoD
• Dimensions: 440 × 620 × 117 mm
• Weight: 51 kg

The heart of the system – the Victron MultiPlus-II 48/5000

The MultiPlus-II 48/5000/70-50 is a high-end device combination from Victron Energy (MPN PMP482505010) that combines classic MultiPlus components with an external current sensor and integrated anti-islanding function. This extends the PowerControl and PowerAssist functions to 100 A and expands the potential range of applications to include ESS applications. The inverter module delivers a full 5000 W with non-linear loads and 4000 W with linear continuous loads. The 48 V battery charger is also very well proportioned with a charging capacity of 70 A and is supplemented by a 50 A transfer switch, which allows you to switch back and forth between the AC connections at lightning speed.

• PowerControl and PowerAssist – increase mains or generator power
• built-in anti-islanding function and connection option for external current sensor (optional)
• can be used as a backup device in grid-connected systems for power supply during grid failures
• ideally suited for professional seafaring, yachts, vehicles, and land-based, off-grid applications
• VE.Bus interface for parallel and three-phase operation, remote monitoring, and system integration
• virtually unlimited power through parallel and three-phase operation
• can be configured on site or remotely using VEConfigure software

Technical features

• 5000 W power with non-linear load 4000 W continuous load and 9000 W peak power
• for 48 V battery voltage, 50 A transfer switch, and 70 A battery charger
• Output voltage: 230 VAC, frequency: 50 Hz
• max. efficiency is 95%, protection class IP22

Configuration

The MultiPlus-II is delivered unconfigured as standard. You can find the configuration instructions for the system here in the download area. If you would like us to preconfigure the system for you, we can do so for an additional charge. To do this, add the Offgridtec Preconfiguration item to your shopping cart during the ordering process. In this case, shipping may take 3-5 business days longer until the configuration has been completed.

Victron Energy Cerbo GX MK2 and GX Touch 50 – the communication center of your system

The latest development in system monitoring from Vctron Energy allows you to easily control and configure your system. Rounded off by the GX Touch 50 – a waterproof 5-inch touchscreen – you can always keep track of your system parameters. The Cerbo's functions allow you to perfectly control and monitor your system on the one hand, while on the other hand enabling you to maximize system performance in an unprecedentedly simple way.

The corresponding module can be used with both solar charge controllers and grid-connected inverters. The mounting material and the necessary connection cables are of course included in the delivery. With the help of the GX Touch 50's Bluetooth capability, access to your system is even faster and easier. The only optional extra is a wall mount for the GX Touch 50, which must be ordered separately if required.

The Victron Remote Portal (VRM) is a free Victron Energy service that allows you to read your system data remotely and configure the devices accordingly. This means that even when you are away, you always have full control and an overview of all relevant system parameters. The functionality is available online as a demo version and is ideal for getting a first impression - https://vrm.victronenergy.com/landingpage

Safety note: Only have this complete system installed and commissioned by a qualified electrician.
