Steca PR 2020 IP (IP 65 version) 20A 12V / 24V


(1)
sku: 1-03-002230

In stock – delivery time 1-3 Werktage

Shipping weight per item: 500.00 g
shipping with: DHL Paket
€124.90
Incl. 19% Tax, excl. Shipping Cost
OR
Mo – Fr: 08.00 – 18.00 Uhr

Fragen oder Änderungswünsche?

Description

The functionality of the Steca PR 2020 IP grounds on the technology of the Steca PR solar charge controller series.
The big display shows the current charging level (SOC) in percentage and as fuel gauge. The controller's centerpiece
is a distinctly improved charging level determination. The self-learning charging level algorithm ensures an optimal
battery care and control of the connected modules (max. 480Wp).
The Steca PR 202 IP is especially designed for applications under tough circumstances with high salt, humidity and/or
dust concentration.

data sheet

General
SKU 1-03-002230
Manufacturer's Unit Number PR 2020-IP
Product Type Laderegler
Manufacturer Steca
Charge Controller Type Marine
System Voltage 12V DC, 24V DC
Charging Current (A) 20A
Deep Cycle Protection < 30 %/11,1V (22,2V)
Connection Clamps 16mm² / 25mm² - AWG 6 / 4  (fein- / einzeldrahtig)
Protection IP IP65
Restart Voltage > 50% / 12,6V (25,2V)
Charging Voltage flüssig 13,9V (27,8 V); Gel 14,1V (28,2 V)
Compensation Charge 14,7V (29,4V)
No-Load Voltage Solar Module < 47 V
Boost Charging Voltage 14,4V (28,8V)
Self-Consumption Under Load 12mA
Load Current max. 20A
Ambient Temperature -10°C - +60°C
Application Area Außenbereich, Innenbereich

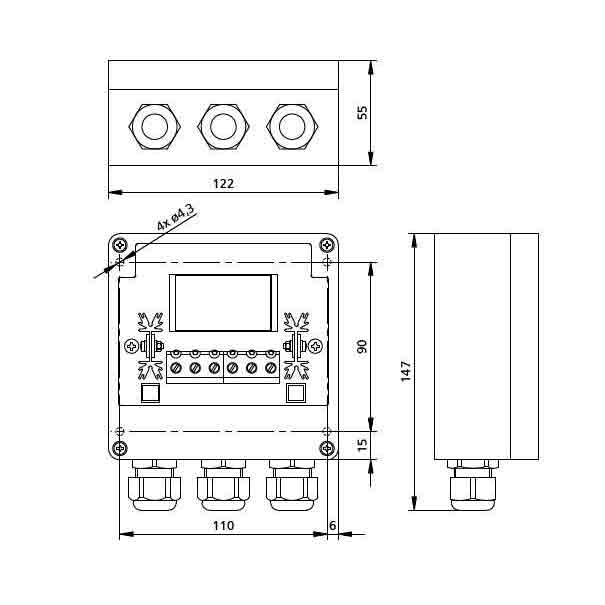

Dimensions (LxWxH)) 122mm x 147mm x 55mm
Weight ca. 350 g
EAN 4250852801355
