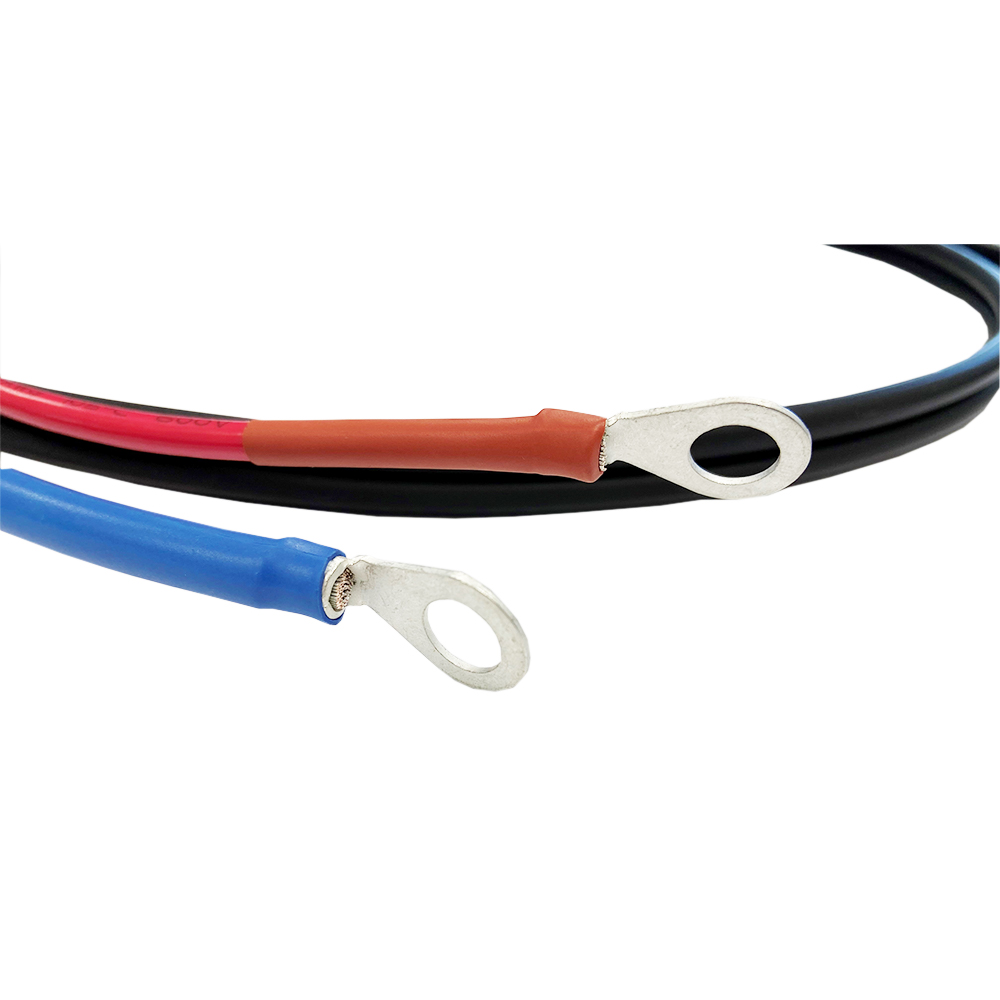

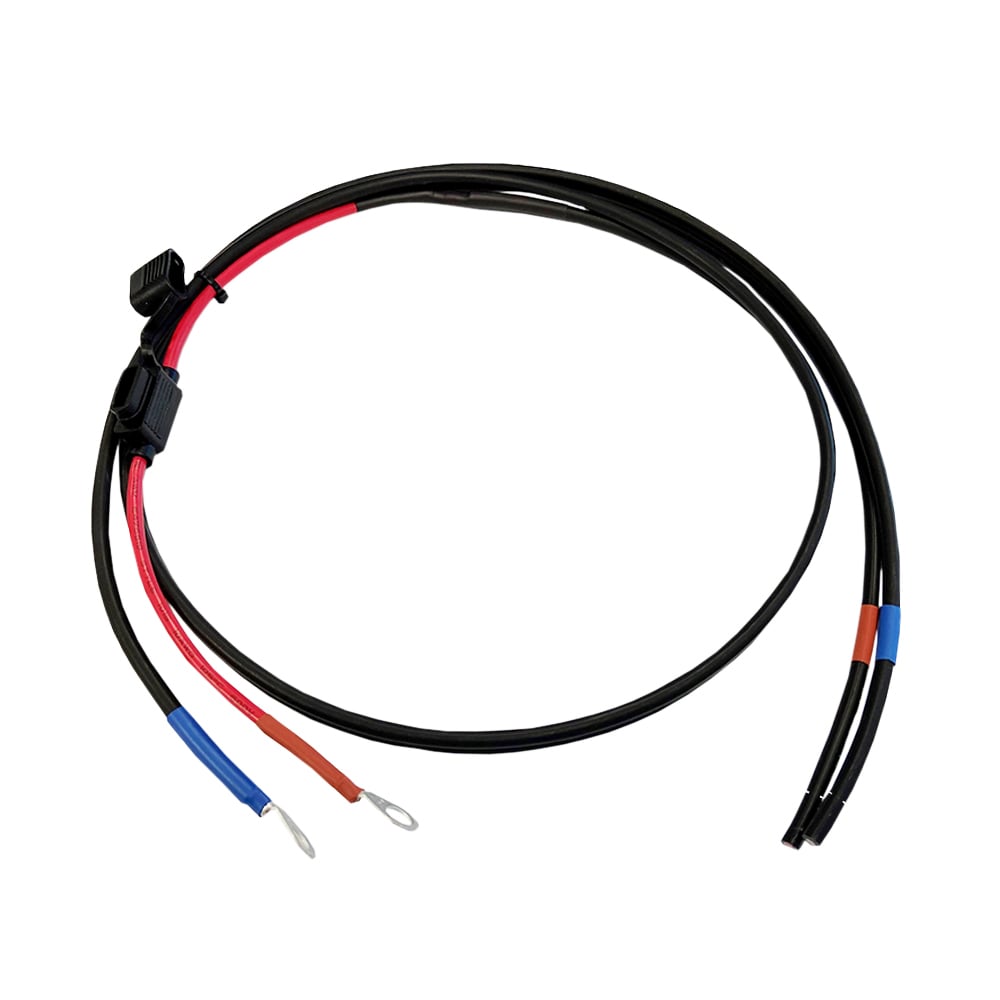

You need this cable to connect your charge controller to a battery. This design is very high quality. The integrated 30a fuse is packed in a nice bag. The whole battery cable is overall very high quality work and makes a good visual impression. The cable length is 2.5 m. The cable can be connected to any charge controller with appropriate receptacle (min. 6mm²).

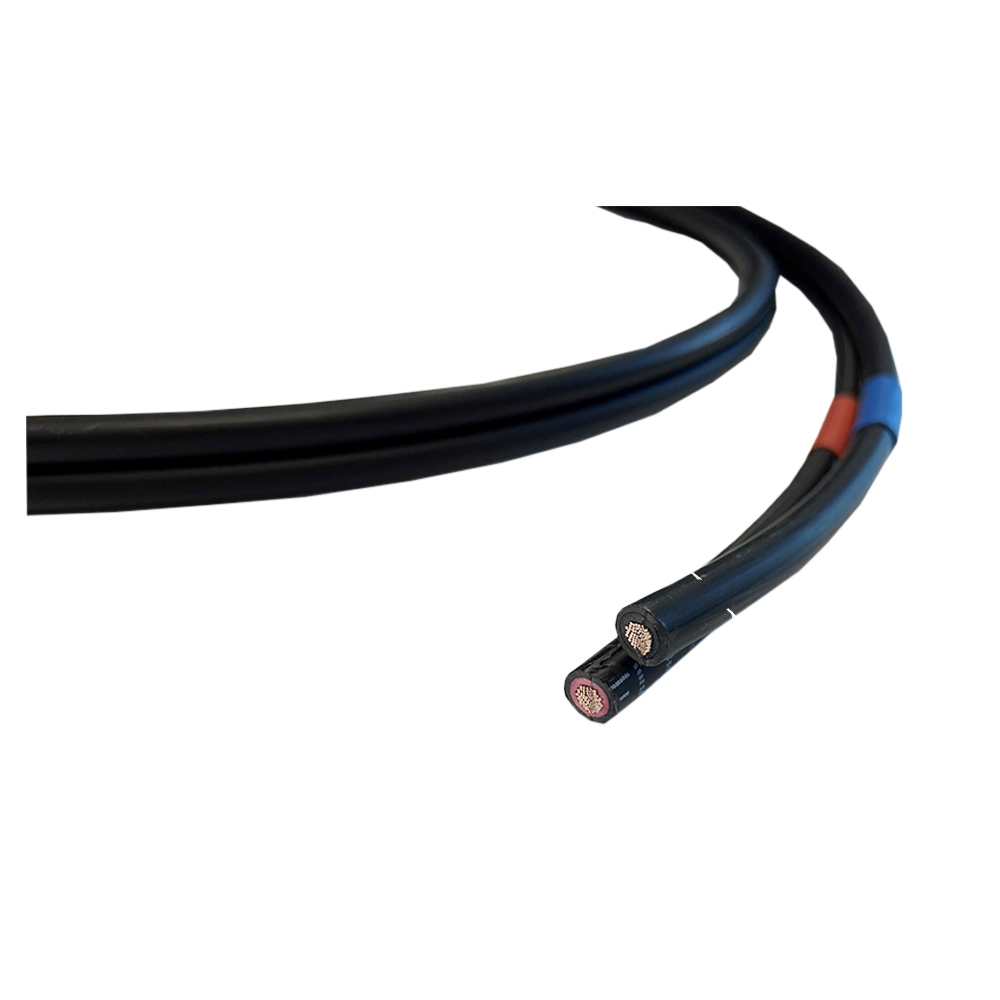

2 x 6,0 mm² cable
Length: 2,5 m
with M8 ring cable lug at one cable end
cut at the other cable end for easy stripping of the sheath and exposure of the bare wire

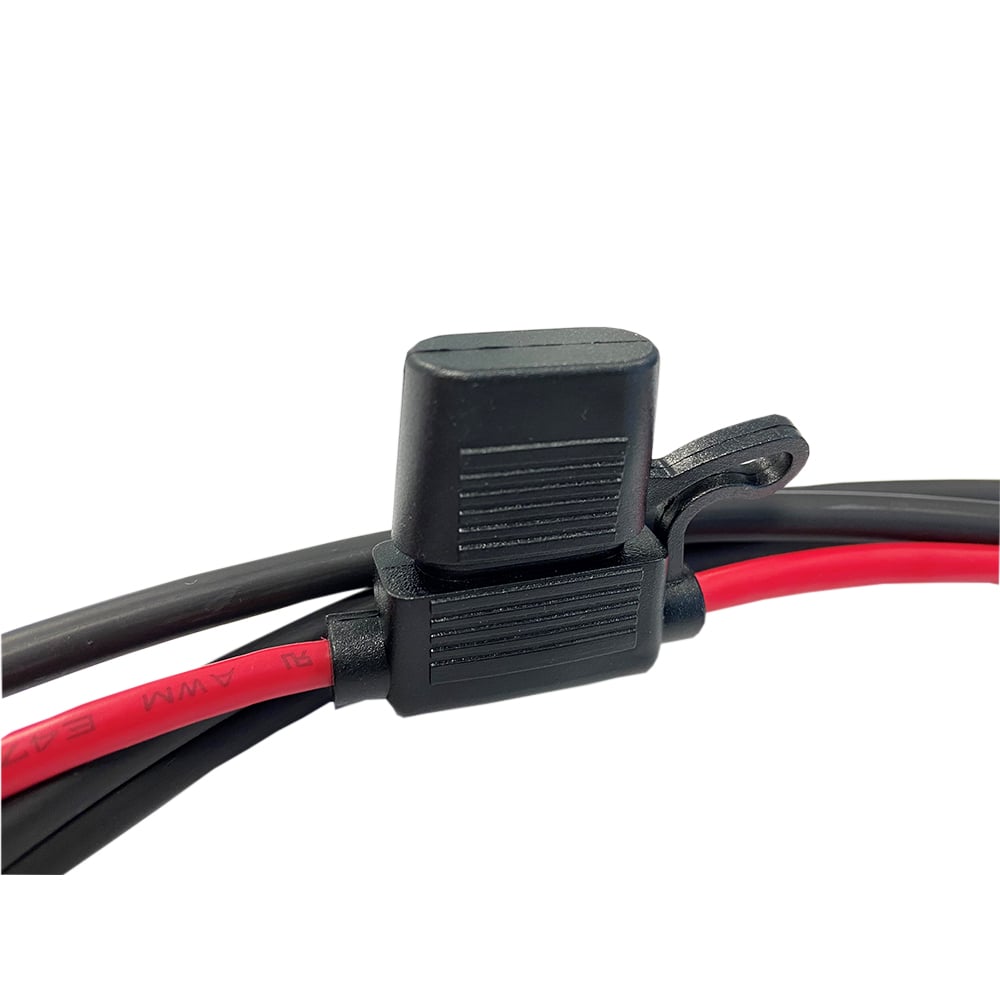

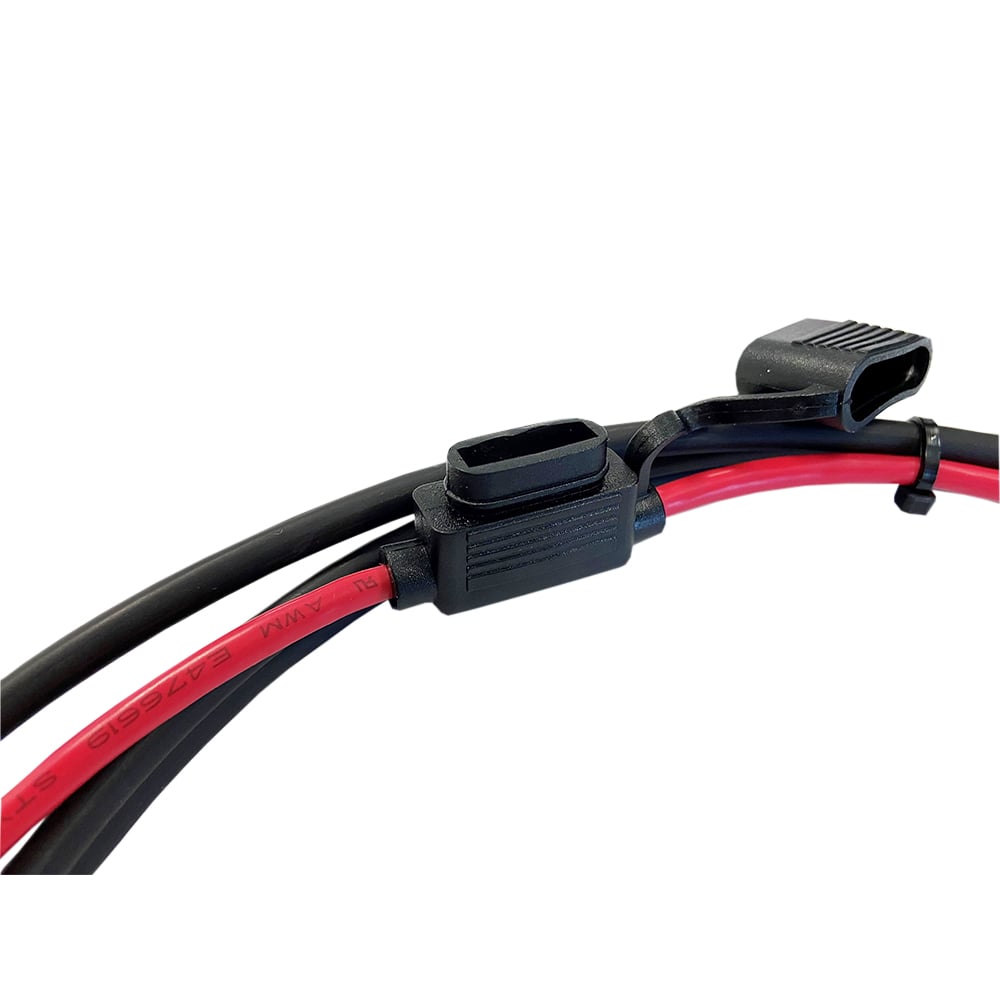

with 30a fuse in pocket
professional manufacturing
high quality materials
Manufacturer:Offgridtec
Product Type:Battery cable
8-01-007595
