Hoymiles Energy Meter DTSU666 including 3x 100A Current Transformers 3-Phase (CT-3*100A)
Shipped in 1-3 days
€137.86*
€115.85**

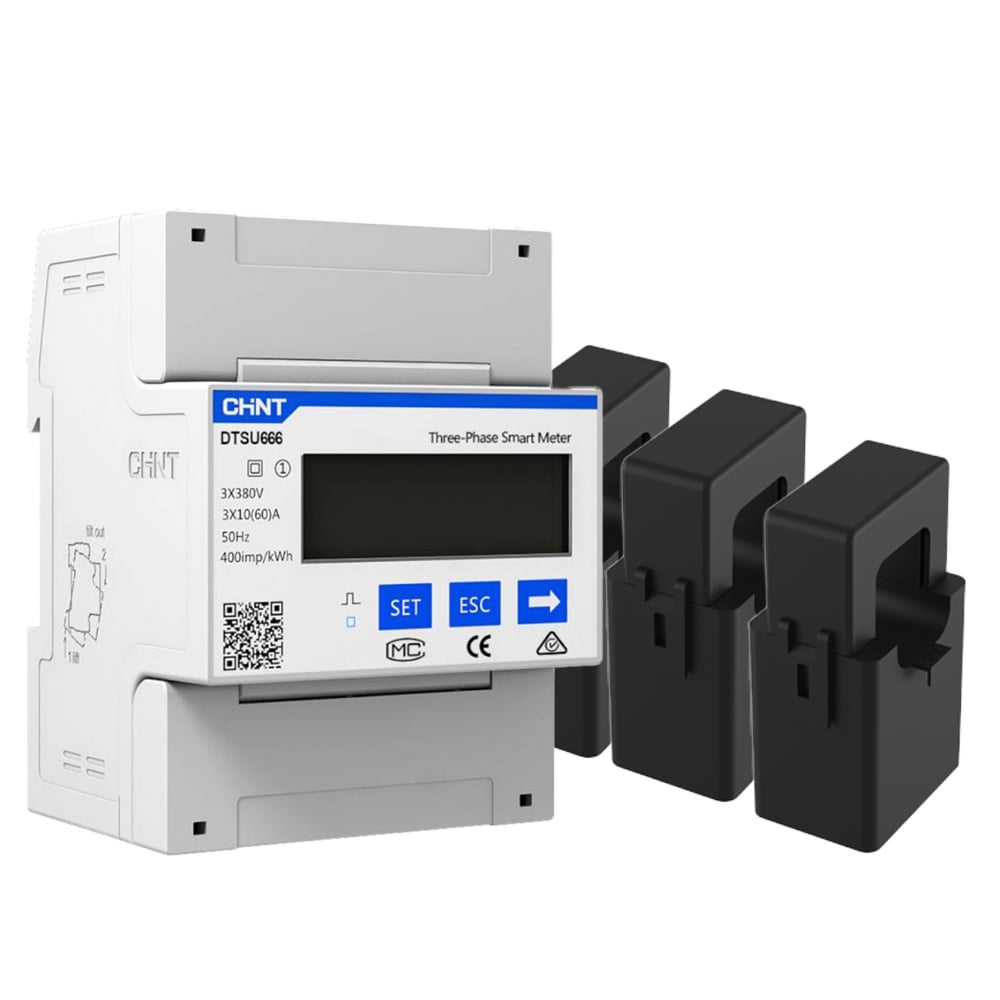

The 3-phase Hoymiles DTSU666 power meter comes with three 100 A current transformers (CTs) and enables precise measurement of PV generation, power consumption, and grid feed-in.
Hoymiles Smart Power Export Management
Hoymiles Smart Power Export Management is an intelligent and reliable solution for controlling the amount of electricity exported to the public grid. The system consists of a metering device with external current transformers (CTs), a Hoymiles Gateway DTU-Pro (or DTU-Pro-S), and a Hoymiles microinverter. The included CTs accurately measure current flow, while the power meter communicates export or consumption values. For accurate monitoring of PV production, the meter must be installed at the output of the PV system.
Technical Data
- Input voltage: 154–253 V AC
- Dimensions: 72 × 100 × 65 mm
- CT Dimensions: 44 × 77 × 33 mm
- Operating temperature: -25 °C to 70 °C
- Current transformers (CTs): 3 × 100 A
- Connection: RS485
- Cable length: 6 m
Scope of Delivery:

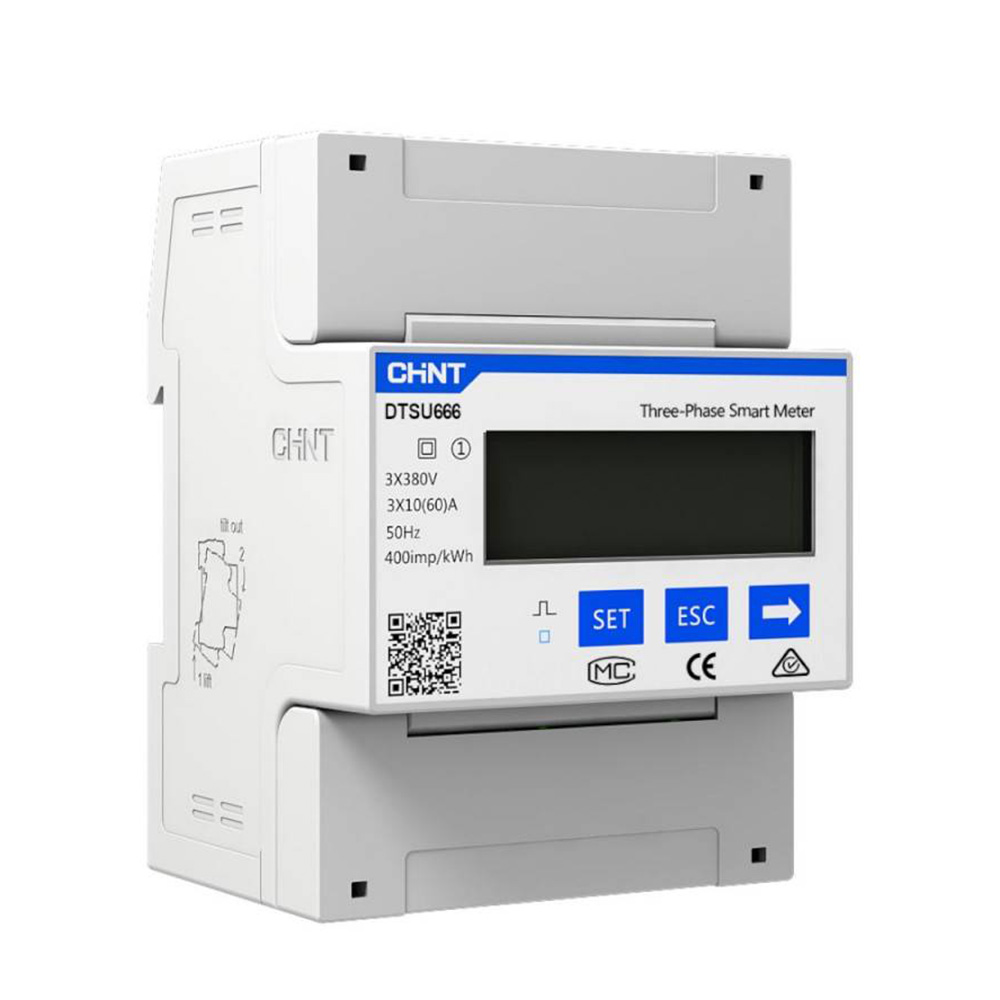

1× Hoymiles DTSU666 3-phase power meter

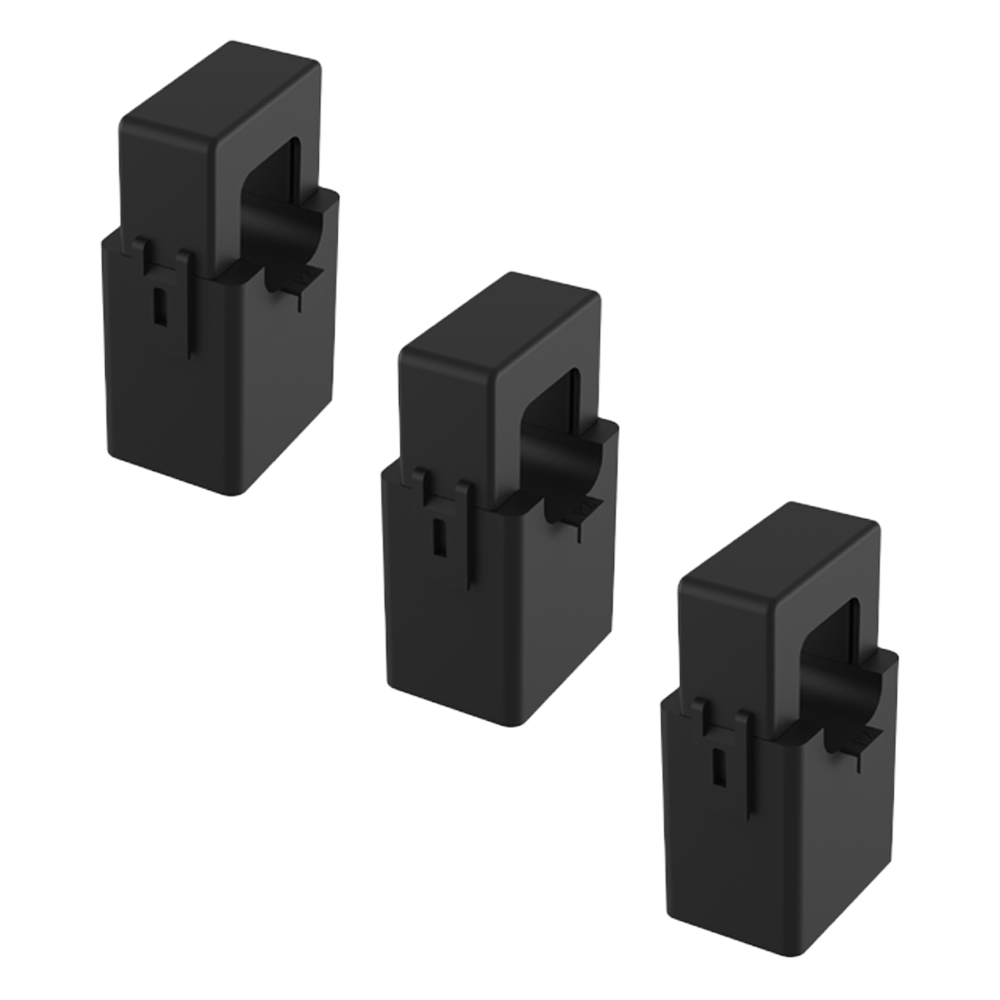

3× 100 A current transformers (CTs)
1× Connection cable
Manufactuerer Information
Hoymiles
Hoymiles Power Electronics B.V.
High Tech Campus 9, Unit BK3.28
5656AE Eindhoven
Netherlands
Mail: service.nl@hoymiles.com
Tel.: +31 8527036388
