Offgridtec© 12V Solar Set Basic-Starter 130W
Product number:
4-01-002500
4-01-002500
4.75
4
Shipped in 2-5 days
Loading...
€229.65*
€192.98*
Product number:
4-01-002500
VAT-exempt delivery possible*
VAT-exempt delivery according to § 12 para. 3 UstG
§ Section 12 (3) UstG only applies if you are a private individual and the product is installed in Germany. To benefit from the 0 percent rate, please confirm at the checkout that you are eligible for the zero tax rate according to § 12 para. 3 UstG. Subsequently, the tax rate will automatically be set to zero for eligible items.
Our low-priced 300W solar construction kit. This low-cost version comes without prefabricated cables and relys on simple but solid charge controller technology without displays.
The outcome is a very favourable price. Components:

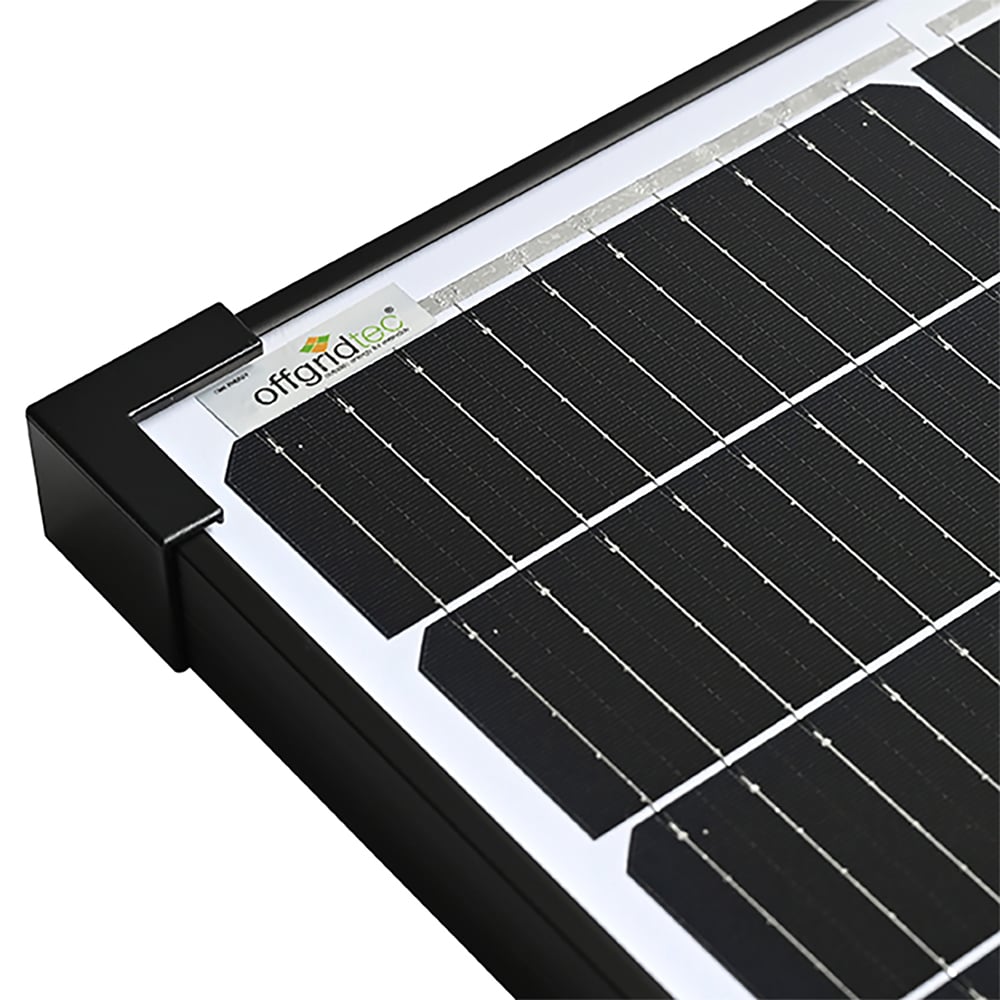

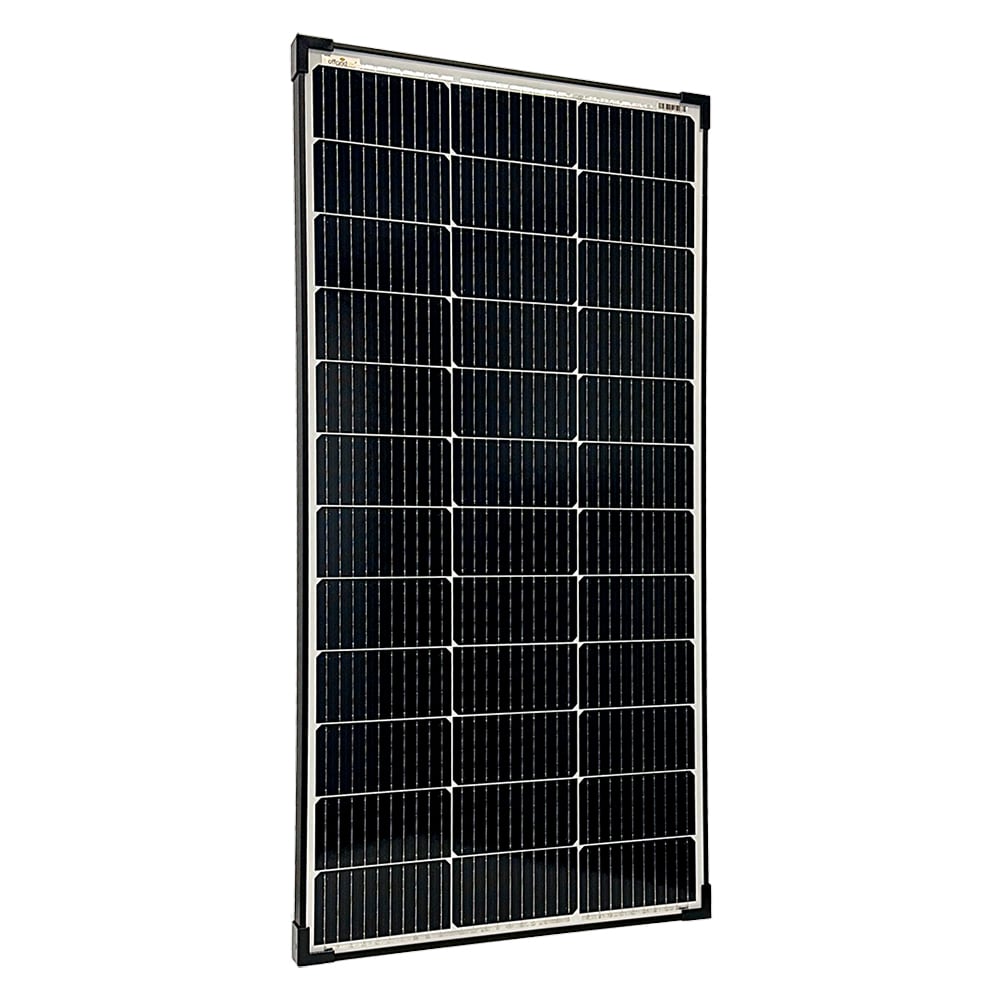

1 x Offgridtec 130W 12v solar module mono
1 x 12V 10A Steca Solsum 10.10F charge controller

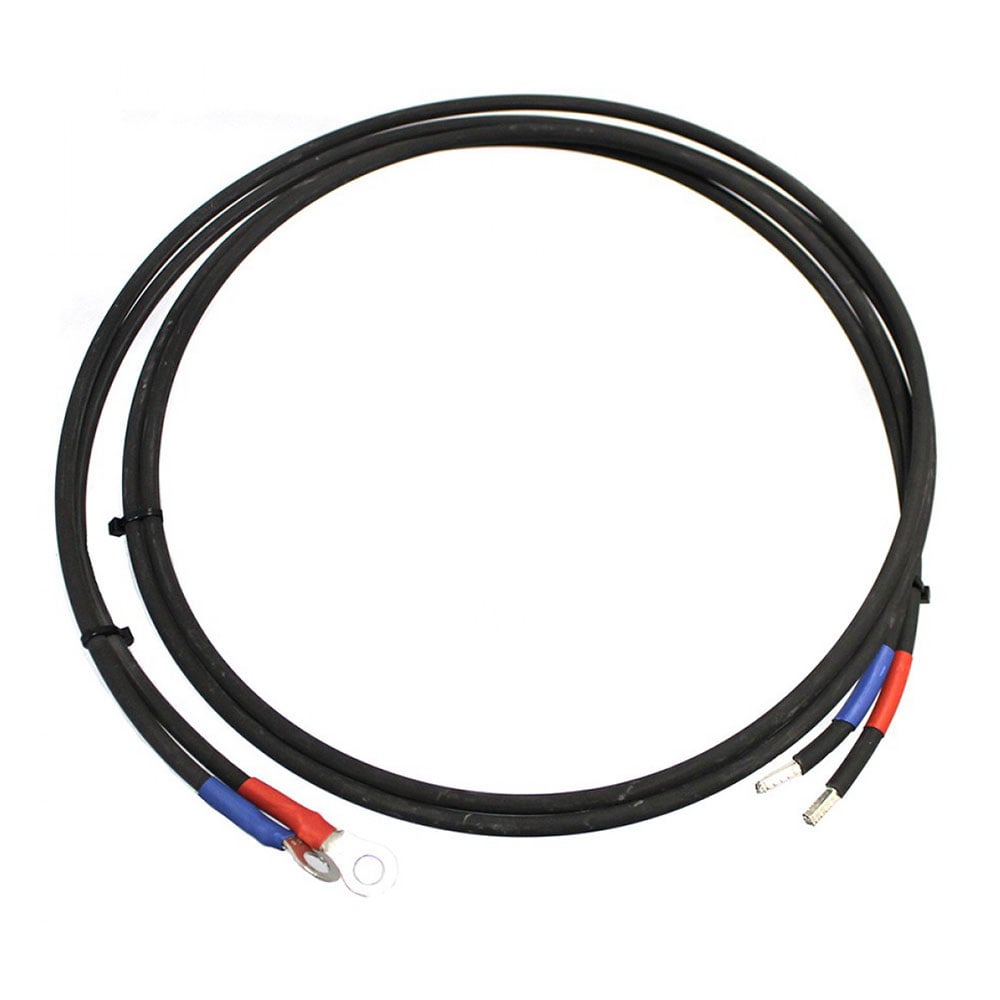

1 x battery to charge controller connection cable (2x6mm²)

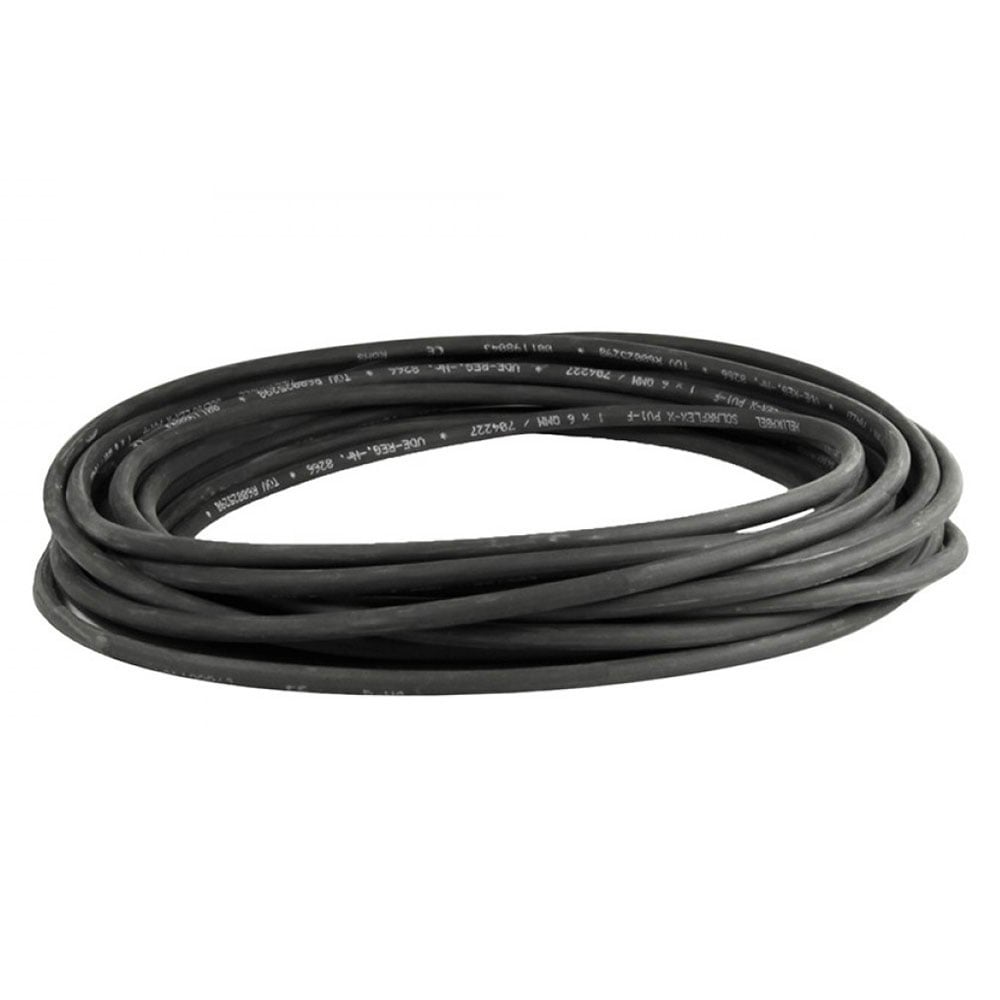

1 x 15m Helukabel solar cable 4mm²

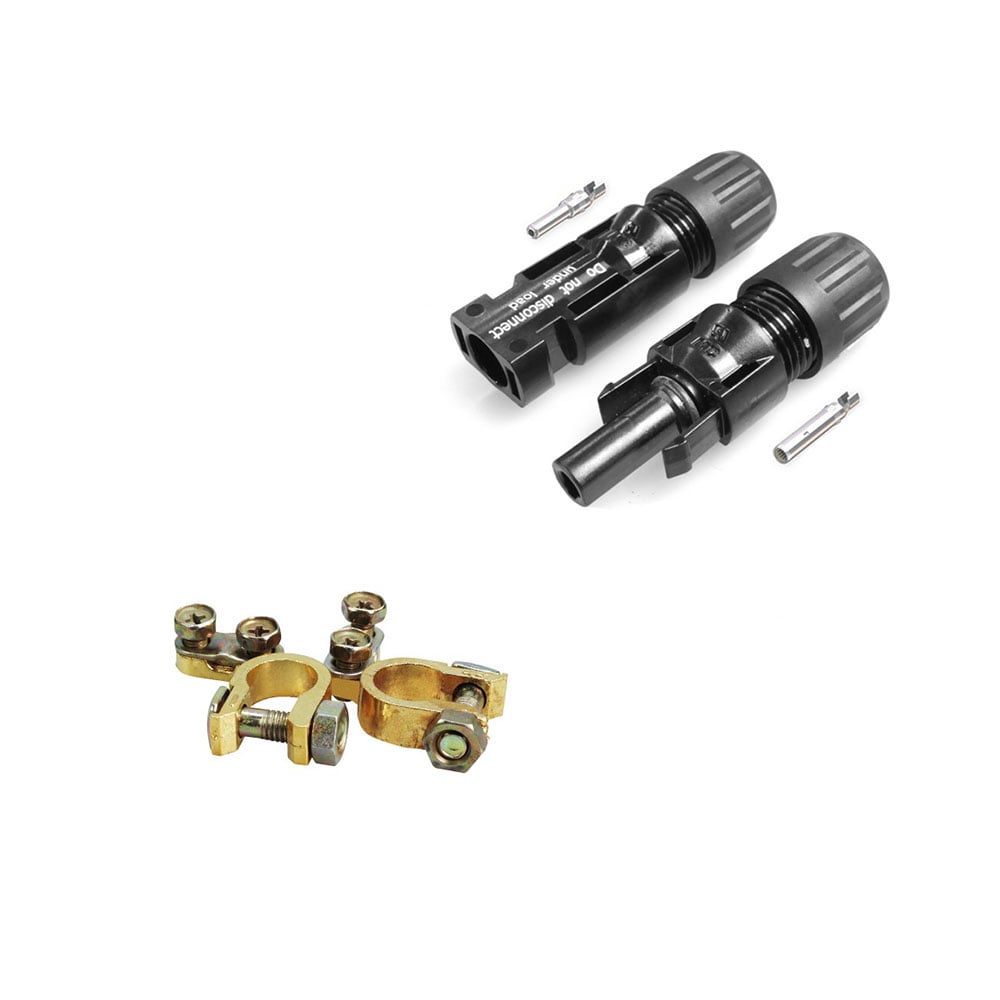

1 x pair of Multi-Contact MC4-plugs (4mm²)

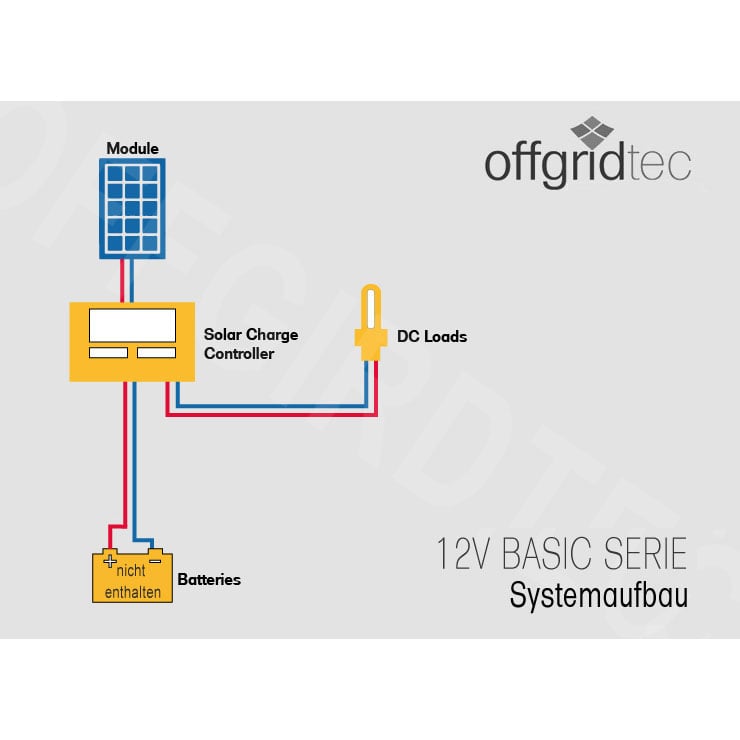

1 x pair of ferrules (4mm²) This construction-kit is the basis for a 12V solar system. The charge controller's output provides 10A 12V current for your consumers. This is a very versatile set that includes everything to charge a 12V battery.
The outcome is a very favourable price. Components:
1 x Offgridtec 130W 12v solar module mono
1 x 12V 10A Steca Solsum 10.10F charge controller
1 x battery to charge controller connection cable (2x6mm²)
1 x 15m Helukabel solar cable 4mm²
1 x pair of Multi-Contact MC4-plugs (4mm²)
1 x pair of ferrules (4mm²) This construction-kit is the basis for a 12V solar system. The charge controller's output provides 10A 12V current for your consumers. This is a very versatile set that includes everything to charge a 12V battery.
The 130W solar panel produces an annual average output of about 520Wh daily. More on sunny days, less on rainy ones. Also other factors like temerature, installation angle or climatic conditions may effect the amount of produced energy.
Bedienungsanleitung_Solsum-10.10F.pdf
Download
Average daily yield:
520Wh (expandable)
Cell type:
monocrystalline
Connection options:
12V/DC
Included accessories:
55105,55109,55108
Included charge controller:
Steca Solsum 10.10F
Manufacturer:
Offgridtec
Module voltage (VMP):
20 V
Open circuit voltage (VOC):
24 V
Power (PMAX):
130W
Product Type:
Solar power system
Short circuit current (ISC):
7,02 A
System performance:
130W (expandable)
System voltage:
12V DC
max. current (IMP):
6,5 A
max. load current:
10A
4-01-002500
