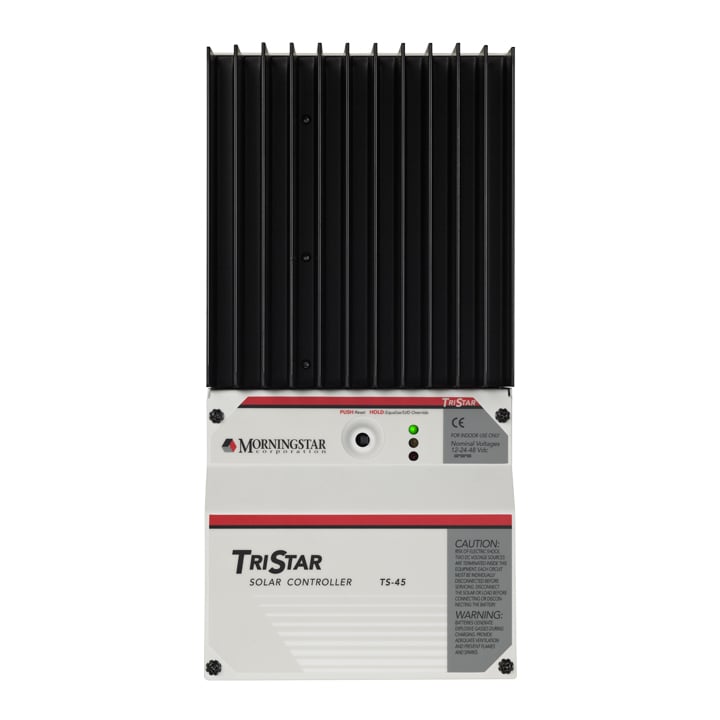

Morningstar TriStar TS45 12V/24V/48V 45A


(1)
sku: 1-05-002260

In stock – delivery time 1-3 Werktage

Shipping weight per item: 2.10 kg
shipping with: DHL Paket
€199.90
Incl. 19% Tax, excl. Shipping Cost
OR
Mo – Fr: 08.00 – 18.00 Uhr

Fragen oder Änderungswünsche?

Description

The Morningstar TriStar-controller comes with three different funtions - battery charging, load regulation and redirection control.
The controller works in on of the selectable modes. If more functions are needed at the same time more controllers can be connected.

The TriStar was developed with high-end technology and shows a wide range of functionality at a competative price. The optional TriStar-display
is the most advanced and most informative controller-display on the market. This UL-certified controller is suitable for solar-home-systems or professional
applications.

data sheet

General
SKU 1-05-002260
Manufacturer's Unit Number TS45
Product Type Laderegler
Manufacturer Morningstar Corp.
Charge Controller Type PWM
System Voltage 54917,54918,54931
Charging Current (A) 45A
Cable Entry Holes Exzentrisch 2,5/3,2 cm
Battery Voltage min. 9V
Connection Clamps 35mm² / AWG 2
Permitted Humidity 100% (nicht kondensierend)
Protection IP IP20
No-Load Voltage Solar Module max. 125V/DC
Accuracy 12/24 V: 0,1% ±50 mV; 48V: 0,1% ±100 mV
Charging Current max. 45A
Self-Consumption Under Load 20mA
Load Current max. 45A
Ambient Temperature -40°C - +45°C
Application Area Innenbereich
Protection Functions Blitzschutz, Tiefenentladeschutz, Überladeschutz, Kurzschlussschutz, Überspannungsschutz, Unterspannungsschutz, Verpolungsschutz, Überhitzungsschutz
Dimensions (LxWxH)) 260mm x 127mm x 71mm
Weight 1,6 kg
EAN 4260297854366
