Offgridtec Backup kit retrofit kit 9.6 kWh with Pytes E-Box 4850-c battery Victron MultiPlus ii 48/3000 3-phase
Product number:
4-01-019530-004
4-01-019530-004
Shipped in 2-5 days
€4,636.60*
€3,896.30**
Product number:
4-01-019530-004
VAT-exempt delivery possible*
VAT-exempt order for Germany according to § 12 para. 3 UstG
§ Section 12 (3) UstG only applies if you are a private individual and the product is installed in Germany. To benefit from the 0 percent rate, please confirm at the checkout that you are eligible for the zero tax rate according to § 12 para. 3 UstG. Subsequently, the tax rate will automatically be set to zero for eligible items.

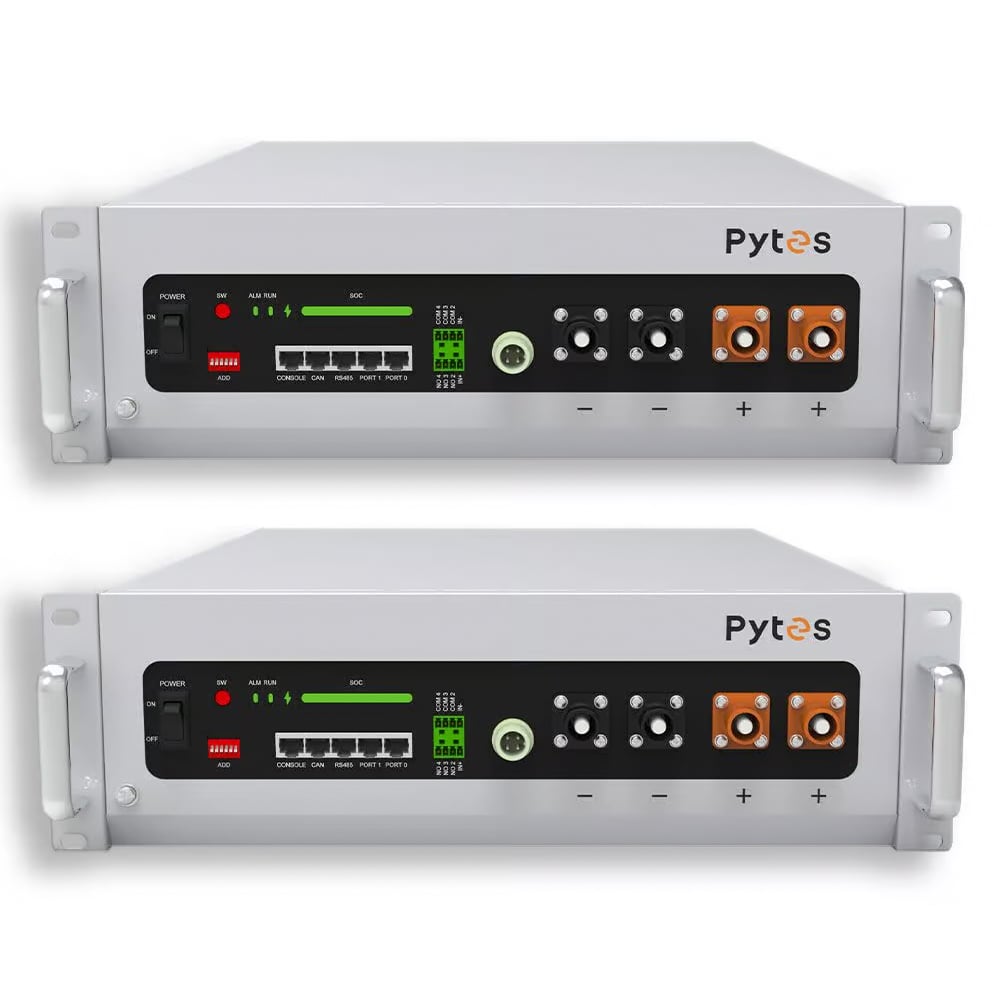

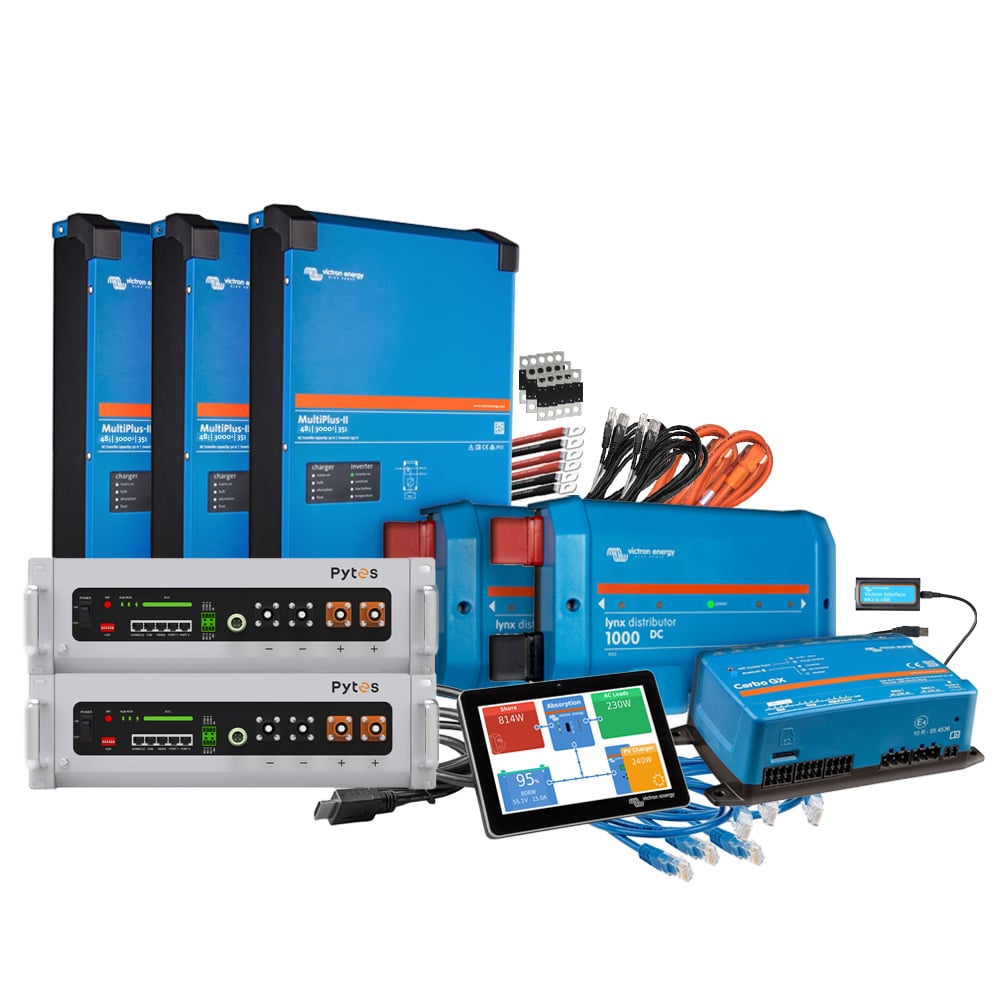

The 3-phase backup systems from Offgridtec are ideal for emergency power supply or for expanding an existing solar system. In addition to lithium-ion batteries from Pytes, the systems contain the matching MultiPlus-II
When selecting electricity
The electronics core &ndash
Victron_Cerbo-GX-GX-Touch_Datenblatt.pdf
Download
Victron_MultiPlus-II-3kVa-15kVa-230V_Datenblatt.pdf
Download
Victron_VM3P75CT_Stromzähler_Handbuch.pdf
Download
Victron_MultiPlus-II_CE.pdf
Download
Victron_Network-Cables_CE.pdf
Download

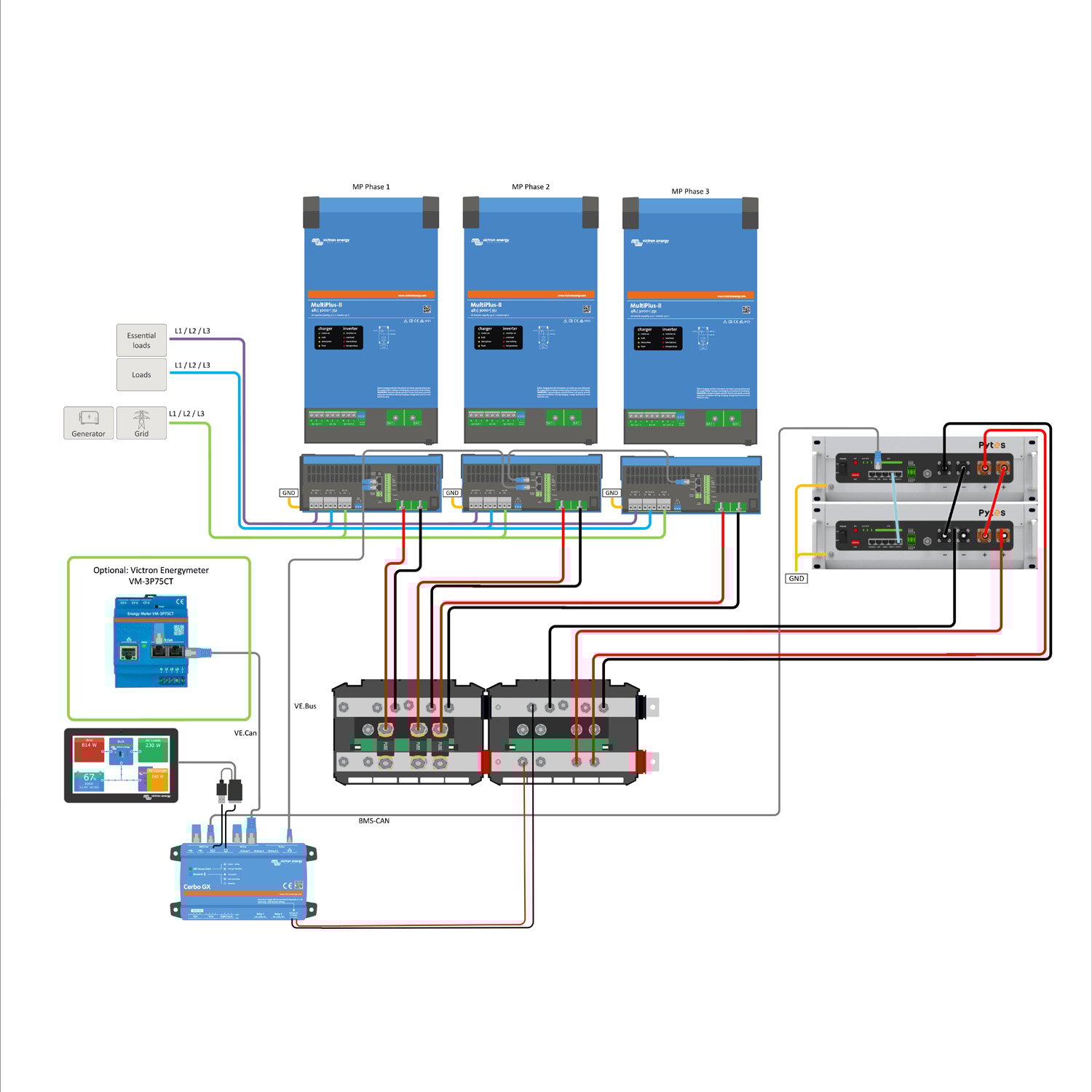

Offgridtec_4-01-019530-003-004_Schaltplan.pdf
Download
Victron_Lynx-DC-Distribution_CE.pdf
Download
Pytes_Batteriemodul-V5_Datasheet.pdf
Download
Victron_Cerbo_GX-MK2_Handbuch.pdf
Download
Victron_VM3P75CT_Stromzähler_Datenblatt.pdf
Download
Victron_Lynx-Distributor_Handbuch.pdf
Download
Victron_MultiPlus-II-230V_Handbuch.pdf
Download
Pytes_E-BOX-4850C_CE.pdf
Download
Victron_Cerbo_GX-MK2_Datenblatt.pdf
Download
Ambient temperature:
-40°C - +65°C
Battery discharge current continuous:
max. 100 A
Battery discharge current permanent:
75 A
Battery monitoring:
integrated
Battery type:
LiFePO4
Capacity:
10,24 kWh
Category name:
Device combinations
Continuous output:
3000 W
Included Battery:
Pytes V5a
Manufacturer:
Offgridtec
Nominal current:
50A
Operating voltage:
44,8 - 57,6 V
Output voltage:
230V
Peak performance:
6000W
Product Type:
Backup-Kit
Protection type:
IP21
Rated battery voltage:
51,2 V
Weight:
162 kg
ean:
4262440566898
mpn:
019530-004
