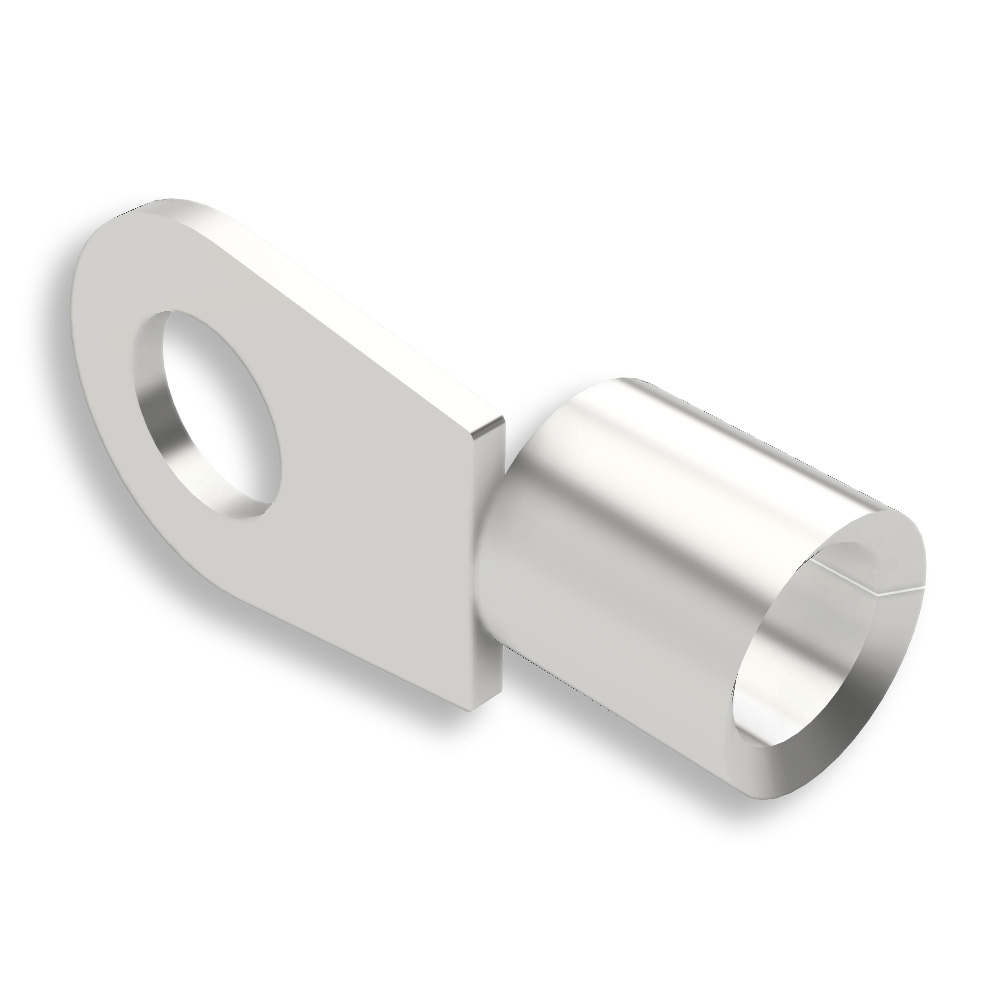

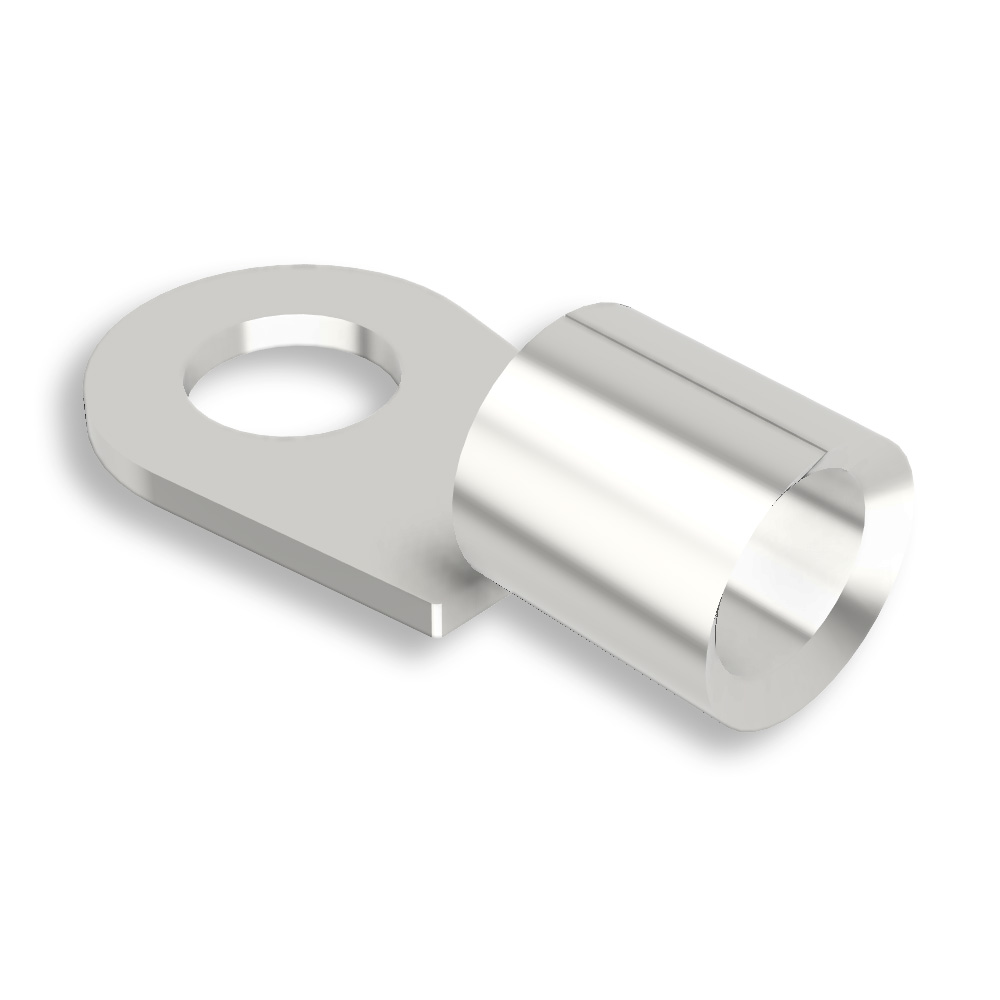

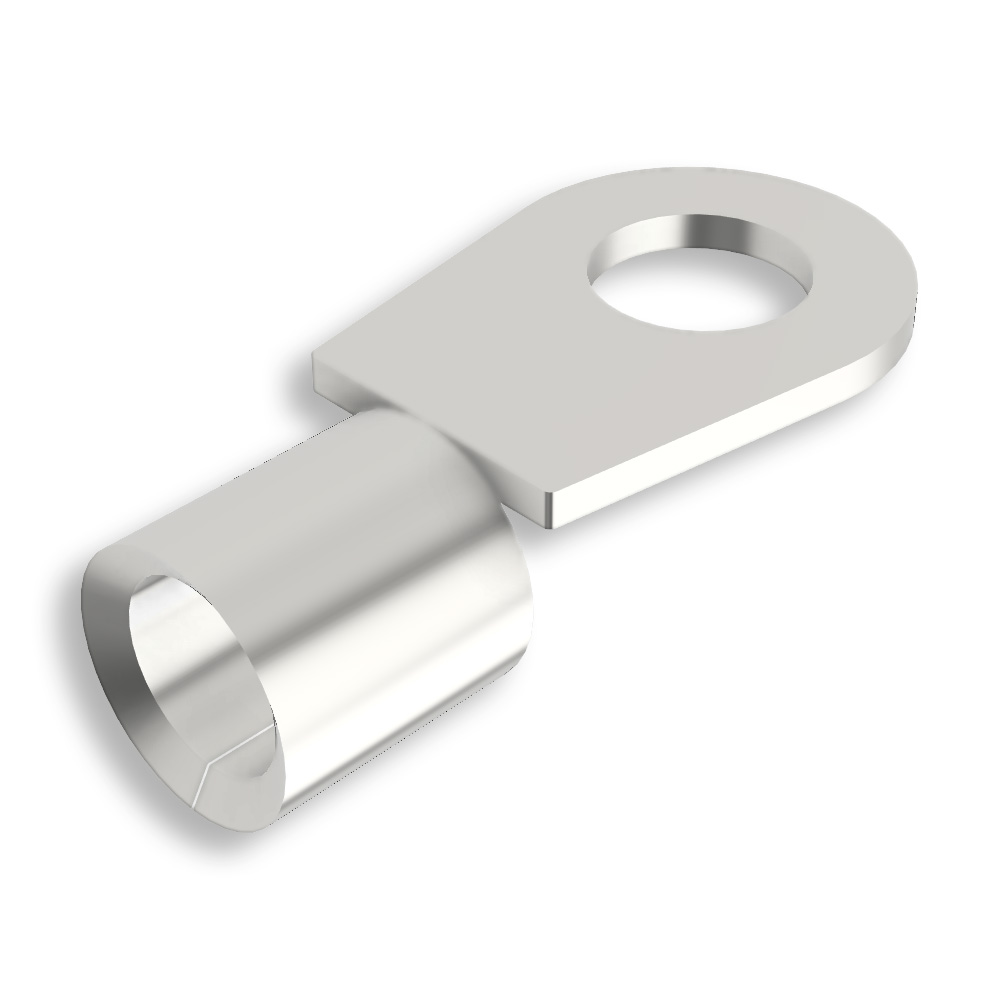

The crimping cable lugs in a pack of 25 from Offgridtec is an electrical connection element consisting of a metal tube that is pressed flat or crimped at one end. Their use offers you the following advantages:
A secure and permanent electrical connection
Protection against corrosion
Easy installation and maintenance
The following threads are available:
M3
M4
M5
M6
M8
M10
M12
M16
Crimp connectors are the perfect choice for anyone who needs durable and reliable connections. The excellent material quality and versatile applications make them an indispensable component.
Manufactured according to din46234 Tinned
Manufacturing to the recognized standards ensures that the crimp terminals meet the high standards required in various industries and applications in terms of dimensions, material quality and performance. This DIN standard refers to a special tin coating. Tin plating protects against corrosion, improves solderability and can help to improve electrical conductivity.
Scope of delivery:
25x Offgridtec crimp cable lug din46234 (thread and size selectable)
Features:Non corrosive
Manufacturer:Offgridtec
Material:Verzinnt
Product Type:Installation material
Quantity:25 Stück
Scope of application:Innen- / Außenbereich
8-01-017995_003
