Wattstone East-West PV mounting system for flat roofs for 8 solar modules with 30 mm frame height, 15° concrete base, aluminum-coated building protection mat
Shipped in 2-5 days
€756.64*
€635.83**
Maximize the performance of your solar system with our PV mounting kit (MPN 019920). This innovative mounting system allows you to install your solar modules side by side in an east-west orientation. This arrangement allows you to make optimal use of solar energy from sunrise to sunset and significantly increase the performance of your solar system.
Wattstone concrete bases ensure that your solar modules are securely anchored. In addition, the east-west connectors provide additional stability for your system. This set is the perfect solution for maximizing the energy production of your solar system throughout the day. The set is suitable for solar panels with a module height of 30 mm.

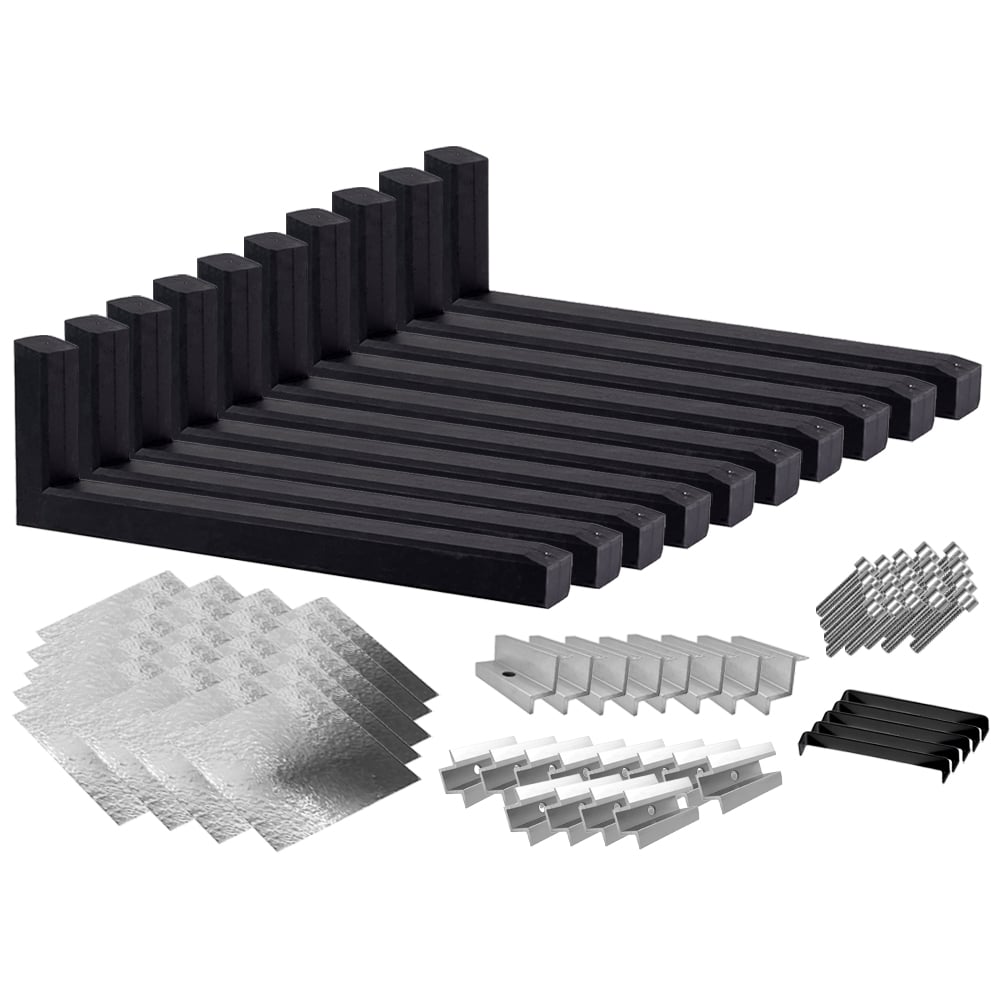

The set includes:
- Wattstone concrete bases – number depending on the quantity of solar modules
- Wattstone building protection mats - choice: aluminum-coated or black

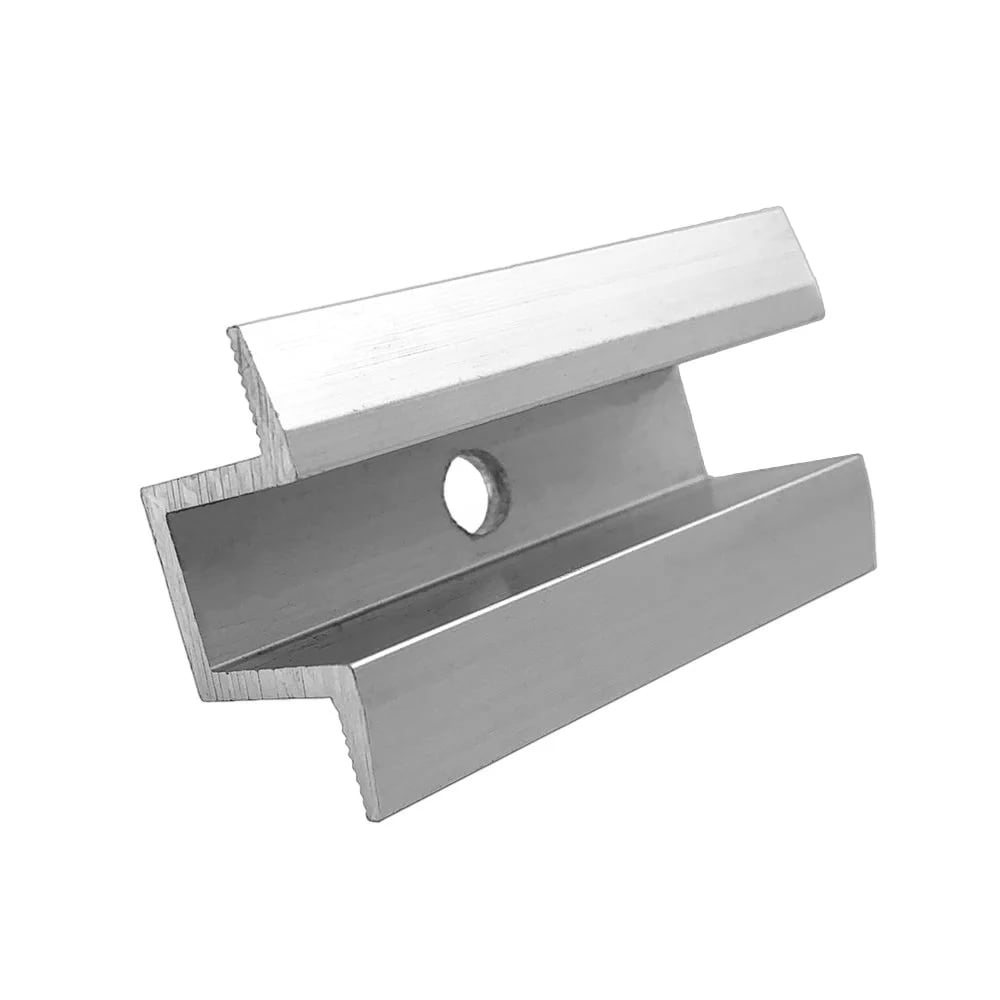

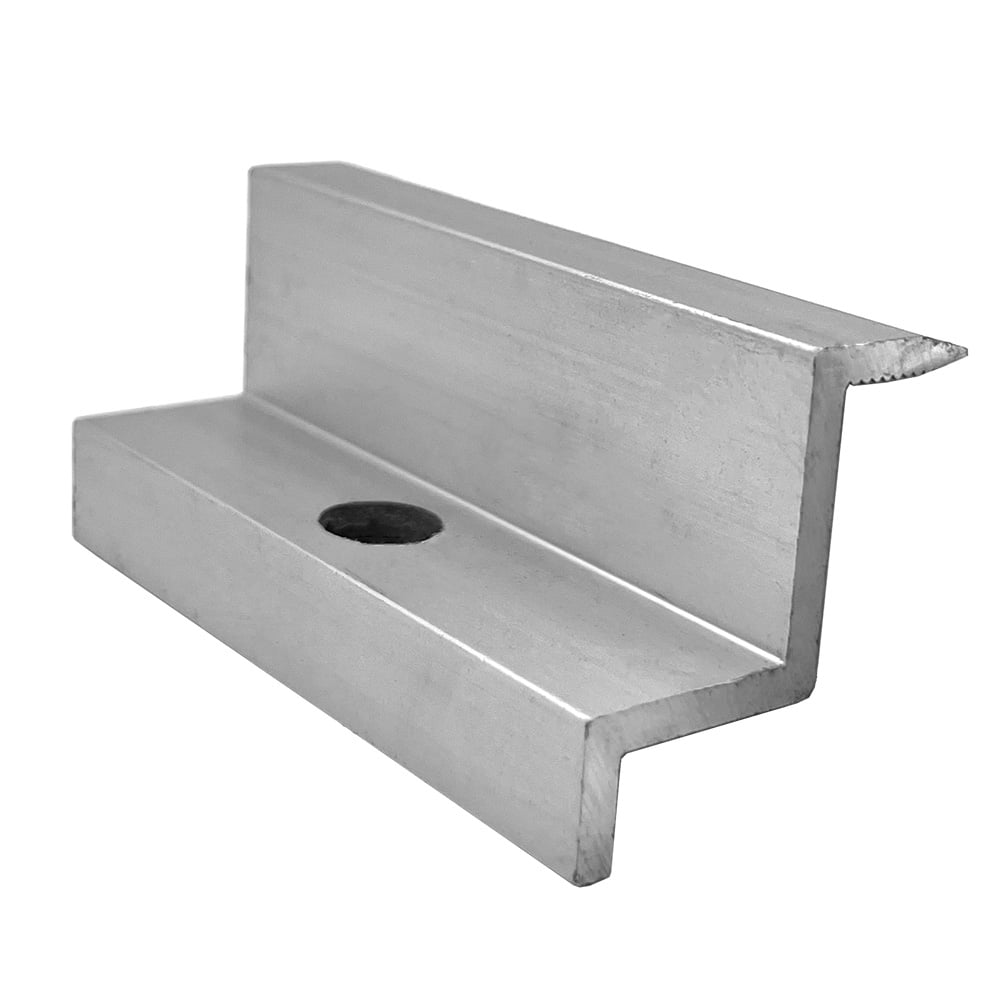

- Offgridtec module end clamps

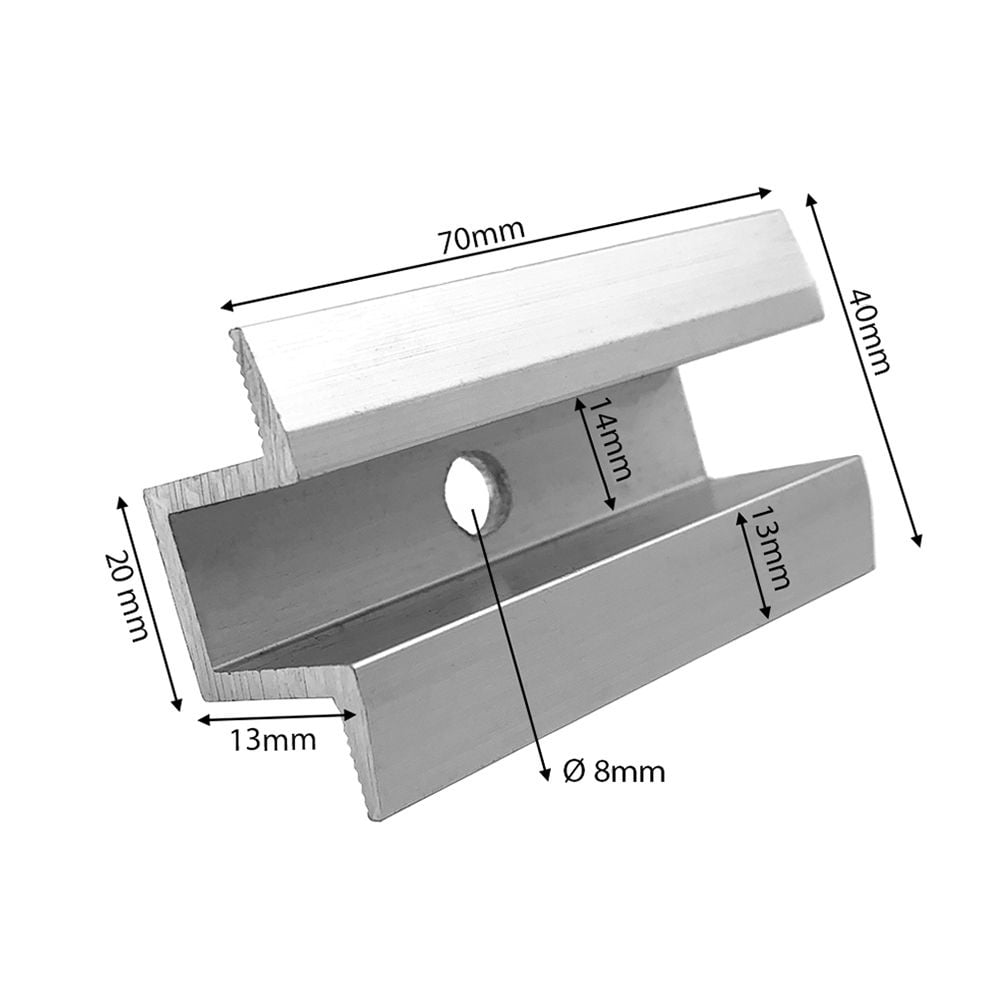

- Offgridtec module center clamps (no center clamps are required for 2 solar modules)
- Wattstone east-west connectors - for 10° and 15° concrete base sets
Maximize your performance
By connecting the solar modules in series, the voltage of your solar system is significantly increased. This leads to more efficient energy conversion and lower line losses throughout the system.
Optimal use of space
This installation method allows maximum use of the available roof or floor space. By positioning the modules in rows, the space can be used optimally without creating excess gaps.

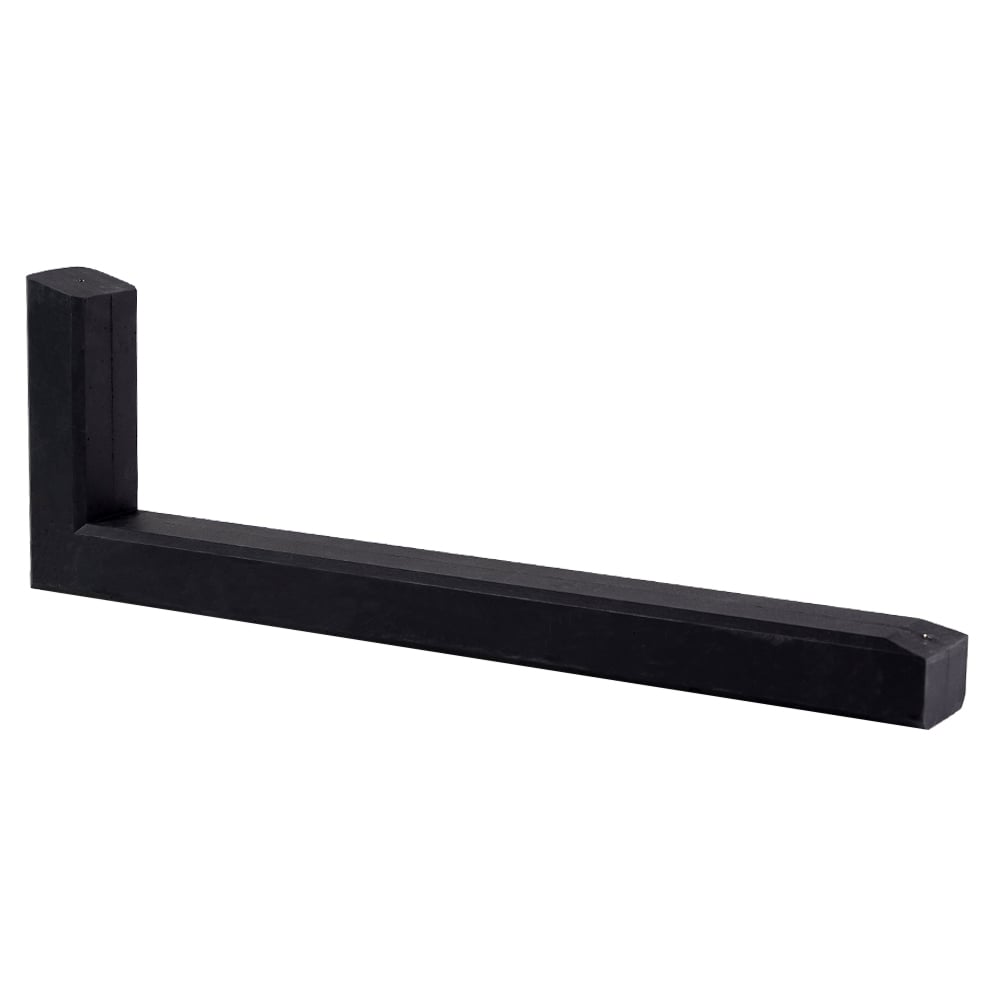

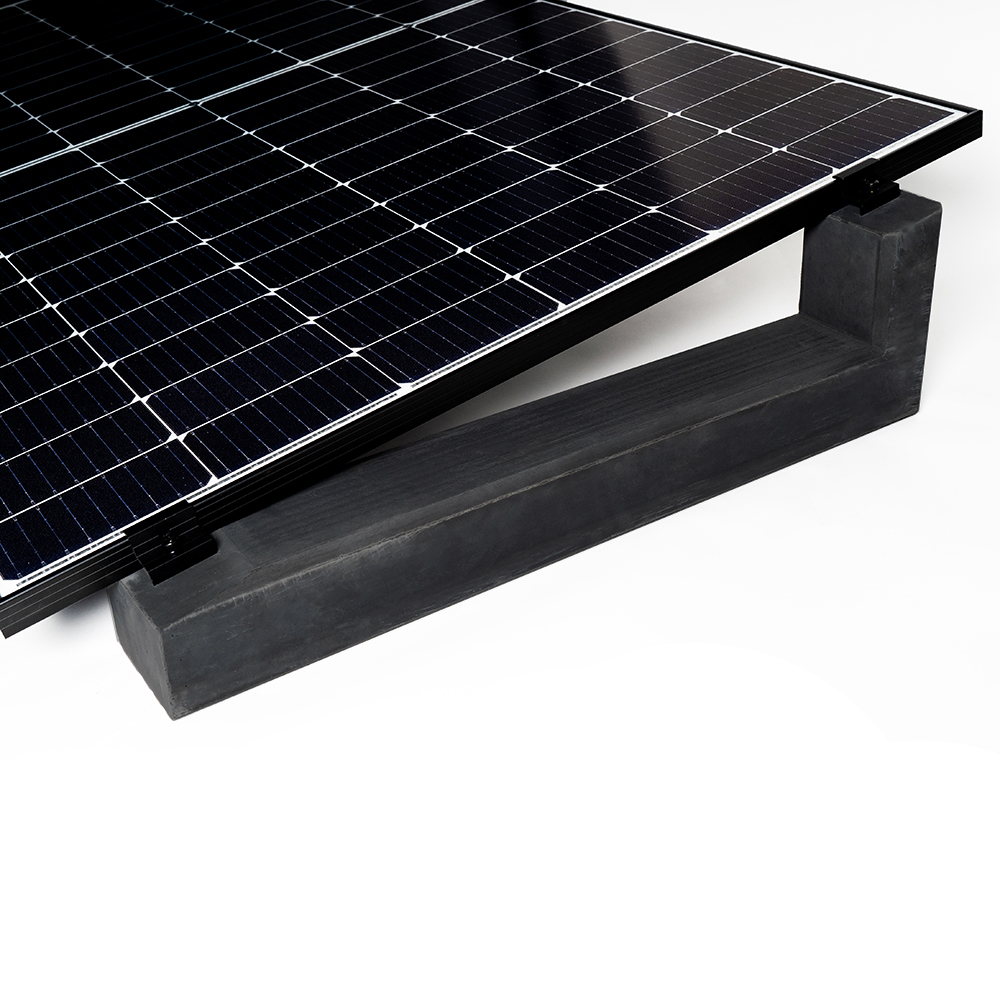

The Wattstone concrete bases
- Flat roof installation
- Choice of 0, 6, 10, and 15-degree tilt angles
- Substructure and ballast in one
- No drilling of the roof structure necessary
- No complicated assembly with tools
- Concrete base made of fine-pored exposed concrete
- Integrated M8 thread
- Quick and easy installation
- Color: Anthracite
Traditional PV surface mountings usually require anchoring, bonding, or ballasting on the roof. Concrete slabs are often used as ballast. With WATTSTONE's robust concrete bases as the foundation for the surface mounting, these steps are completely eliminated. The concrete base rests securely on smooth bitumen, bitumen with slate, PVC, EPDM, and smooth concrete, in both dry and wet conditions.
M8 thread

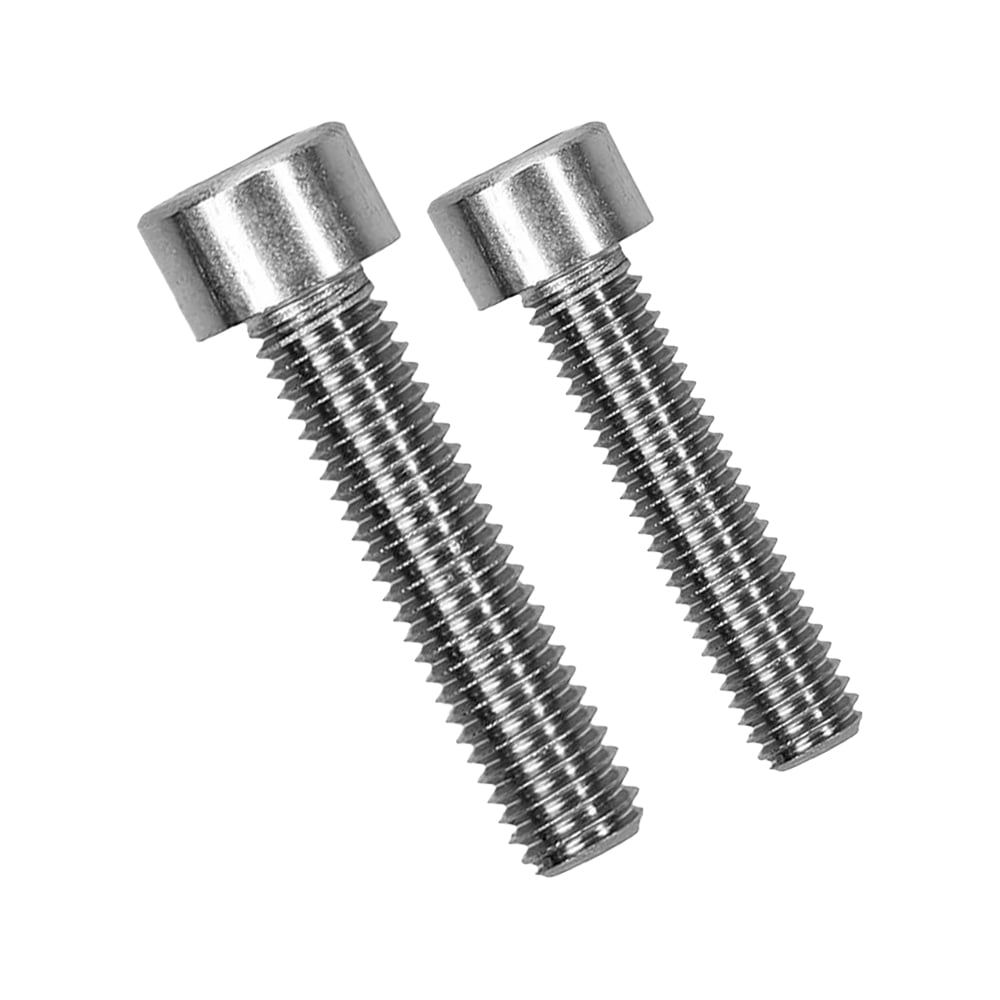

The integrated M8 threads are used to securely fasten PV modules. Two threads for module fastening and one thread for optional mounting of cable ducts or wind deflectors are already cast into the concrete base on the rear side.
East-west connector
The east-west connector from WATTSTONE was developed specifically for concrete bases with 10 and 15 degree angles of inclination. The use of these connectors ensures increased stability, especially in windy areasnbsp;No connector is required for the flatter 0° and 6° concrete bases, as these heavy concrete bases already offer a high level of inherent stability against wind loads. The connector is therefore only supplied with the 10° and 15° concrete base sets.
- 5 mm galvanized steel
- powder-coated
- includes stiffening rib
- Color: anthracite
- Dimensions: 310 x 32 mm

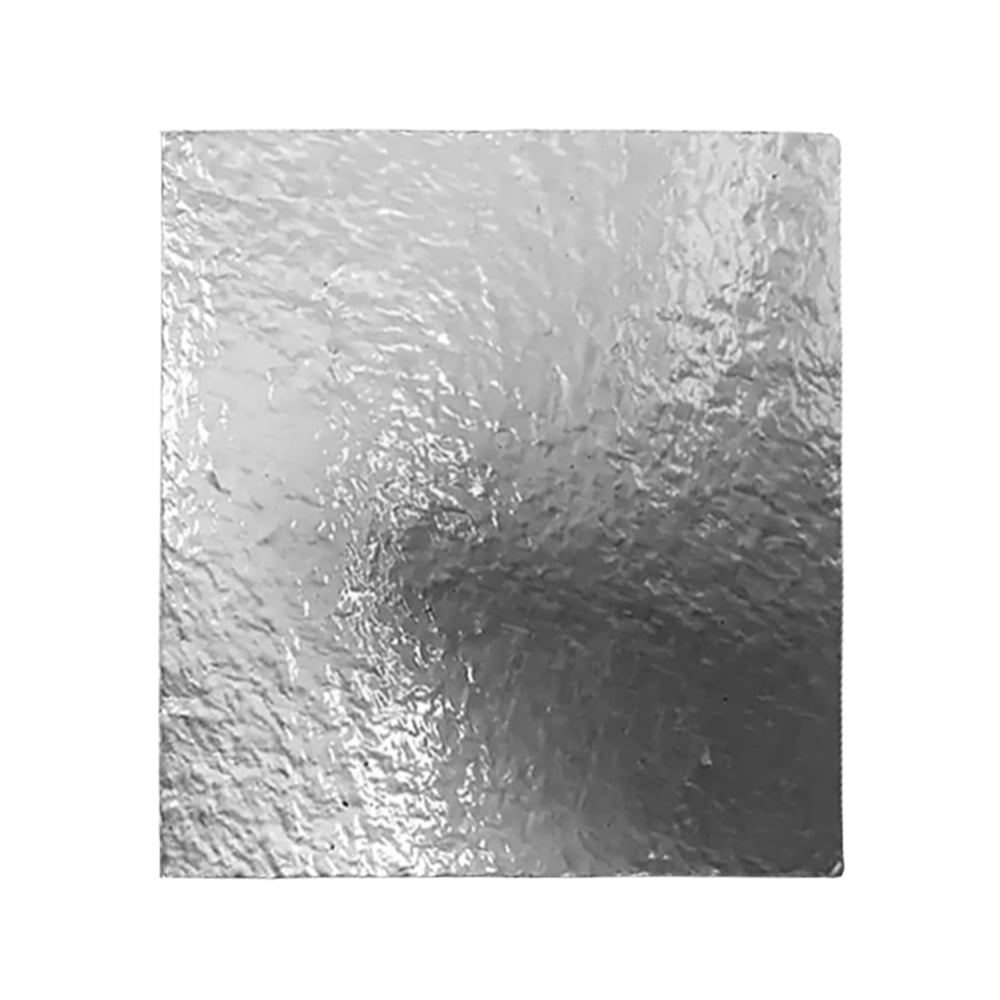

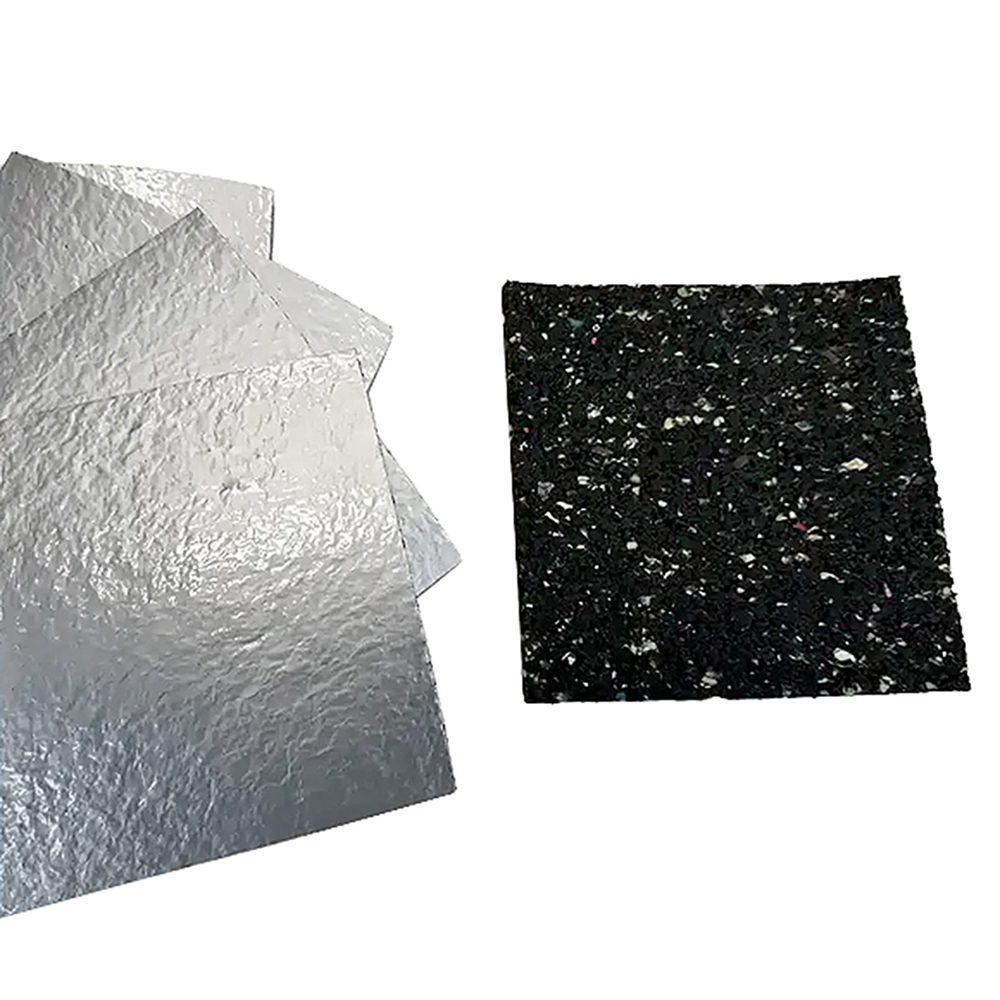

Wattstone building protection mats
Wattstone building protection mats serve as a reliable aid for protection in all building protection applications, as well as for all classic applications on flat roofs and structures. The mats, which come in a set of 4, are ideal as a base for Wattstone concrete risers. They are easy to lay, can be walked on immediately, and are extremely durable and highly resilient.
Protection for roofs and floors
- Protects flat roofs, roof coverings, and structures
- Support for wood and concrete foundations
- For underlayment and vibration decoupling
- Recognized protective layer according to DIN 18195, Part 10
Format, color, and material
- Format: 12 x 200 x 200 mm
- Color: Black or aluminum-laminated (underside laminated with aluminum foil)
- Material: PUR-bonded rubber granulate
