The All-In-One Pro complete system from Offgridtec (MPN: 019825) is a powerful 1335Wp balcony power plant that offers you the ideal solution to produce part of your household electricity independently. The core component is the Zendure AIO Pro storage system, which combines a Hyper 2000 hybrid inverter with a 1920Wh AB2000S battery. The set is completed with three high-performance 445W TopCon solar modules from Trina Solar. Matching connectors and cables are included to ensure a simple, plug-and-play setup without cable clutter.

  • Plug & Play – Plug in and save money
  • Monitor your self-consumption
  • Live more sustainably
  • Fast return on investment

The balcony power plant complete set includes:

All-In-One Pro 1200 Storage System

With the SolarFlow storage system from Zendure, you receive an efficient solution to charge your balcony power station battery via solar or grid power. The AIO Pro set combines a Hyper 2000 hybrid inverter with a 1920Wh AB2000S battery equipped with the latest LiFePO4 cell technology.

  • Hybrid inverter
  • Flexible storage with expansion options
  • Automatic multi-set connection via ZenLink
  • Anti-discharge technology
  • Time-of-use automation
  • AC-coupled storage solution
  • 1200W bidirectional AC output

Technical Data

Inverter

  • Nominal voltage: 15V–55V
  • Recommended input: 350W–550W
  • Number of MPP trackers: 2
  • MPPT voltage range: 16–48V
  • Nominal current: 20A per MPPT
  • Nominal power: 900W per MPPT

Battery

  • Capacity: 1920Wh / 48V
  • Battery type: LiFePO4
  • Max. expandable capacity: 4 x 1920Wh = 7680Wh

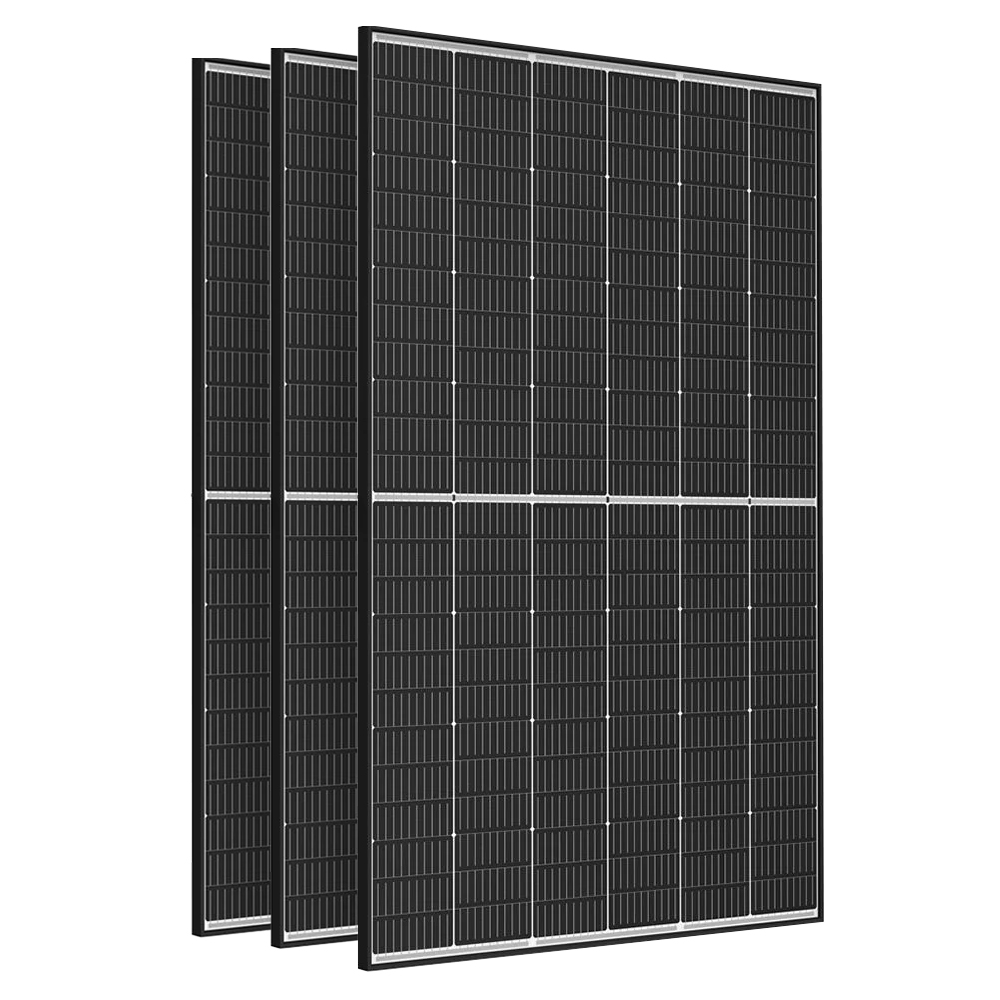

Trina Solar 445W Vertex S+ Solar Module

The Trina Solar Vertex S+ is a high-performance 445W solar module featuring monocrystalline TOPCon cells and dual-glass technology. Thanks to multi-busbar technology, it offers improved light absorption, lower series resistance, better current collection, and enhanced reliability. It is certified for extreme wind and snow loads (5400 - 4000 Pa) and features 1.6mm thick high-transparency, anti-reflective coated glass.

  • Multi-busbar technology
  • Dual-glass design
  • High-density cell interconnection
  • N-Type i-TOPCon cell technology
  • Very low degradation
  • High efficiency of 22.3%

Technical Data

  • Power (Pmax): 445W
  • Voltage (Vmp): 44.3V
  • Max. current (Imp): 10.05A
  • Open-circuit voltage (Voc): 52.6V
  • Short-circuit current (Isc): 10.71A
  • Operating temperature: -40°C to +85°C
  • Max. system voltage: 1500V DC
  • Max. fuse rating: 20A
  • Cell efficiency: 22.3%
  • Number of cells: 144
  • Junction box protection: IP68
  • Dimensions: 1762 x 1134 x 30 mm
  • Weight: 21.1 kg
Trina_Vertex-S-430W-NEG9R-28_Datasheet.pdf Download
Zendure_Hyper2000_User_Manual.pdf Download
Zendure_AB2000S_UserManual.pdf Download
Battery chemistry: Lithium iron phosphate LiFePO4
Capacity: 1920Wh
Category name: Balkonkraftwerk
Cell efficiency: 22,3%
Cell type: monocrystalline
Communication ports: Bluetooth, WiFi, ZenLink
Generator output wp: 445Wp
MPPT-Spannungsbereich: 16-48V
Manufacturer: Offgridtec
Max. System voltage: 1500V DC
Module voltage (VMP): 44,3 V
Open circuit voltage (VOC): 52,6 V
Protective functions: overvoltage protection, overcurrent protection, short-circuit protection, temperature protection, overload protection, overdischarge protection
Rated output voltage: 230 V
Short circuit current (ISC): 10,71 A
System performance: 1335Wp
ean: 4262440566133
max. current (IMP): 10,05 A
max. input current: 16,6A pro Anschluss

Manufactuerer Information

Offgridtec GmbH

Offgridtec GmbH
Im Gewerbepark 11
84307 Eggenfelden
Germany

Mail: info@offgridtec.com

Tel.: +49 8721 9199400

offgridtec.com Reviews with ekomi.de

Brand New & Exclusive: The AIO 2400 by Zendure

/ FROM - February 29, 2024
Discover the revolutionary All-in-One System by Zendure and secure one of the first deliveries directly.
Auf welchem Weg lässt sich der Wechselrichter auf die maximal zugelassene 600W drosseln?
Die Leistung kann z.b. über eine Hoymiles DTU-Wlite eingestellt werden.
Jedoch ist bei der Anmeldung bei Netzbetreiber nicht entscheidend was Sie einstellen können, sondern was die Nennangabe des Inverter besagt.

Anmelden können Sie grundsätzlich jede Anlagen-Größe bzw. Inverter. (Privat bis 20kW)
Momentan liegt die Grenze, bis zu der man ein Balkonkraftwerk vereinfacht anmelden und selbst anschließen kann, bei einer Einspeiseleistung von 600 Watt. Dieser Wert bezieht sich auf die Ausgangsleistung des Wechselrichters der Mini-PV-Anlage. In Europa gilt seit 2016 eine Richtlinie namens "Regulation for Generators" (RFG), in der für elektrische Erzeugungsanlagen eine Bagatellgrenze von 800 Watt festgelegt ist. Das bedeutet, dass bis zu dieser Grenze die private Stromerzeugung als “nicht relevant” angesehen wird. Um den Zugang zu erneuerbaren Energien zu erleichtern, schlägt der VDE vor, diese Richtlinie zu übernehmen und die Bagatellgrenze bis 800 Watt Einspeiseleistung auch in Deutschland einzuführen.

600W bzw. demnächst 800W ist nur eine Bagatellgrenze für „Balkonkraftanlagen“, die über eine bestehende Schuko Steckdose angeschlossen werden.
Über 600W bzw. 800W muss eine Balkonkraftanlage an einem separaten Stromkreis mit entsprechender Einspeisesteckdose bzw. direktem Anschluss zum Hausanschluss mit Sicherung, installiert werden und dies nur von einer Elektrofachkraft. Viele Netzbetreiber akzeptieren bereits jetzt schon die vereinfachte Anmeldung bis 800W, ohne hinzuziehen einer EF.
